REAR WHEEL (MODEL Y)
RM125 1997 (V) USA (E03)

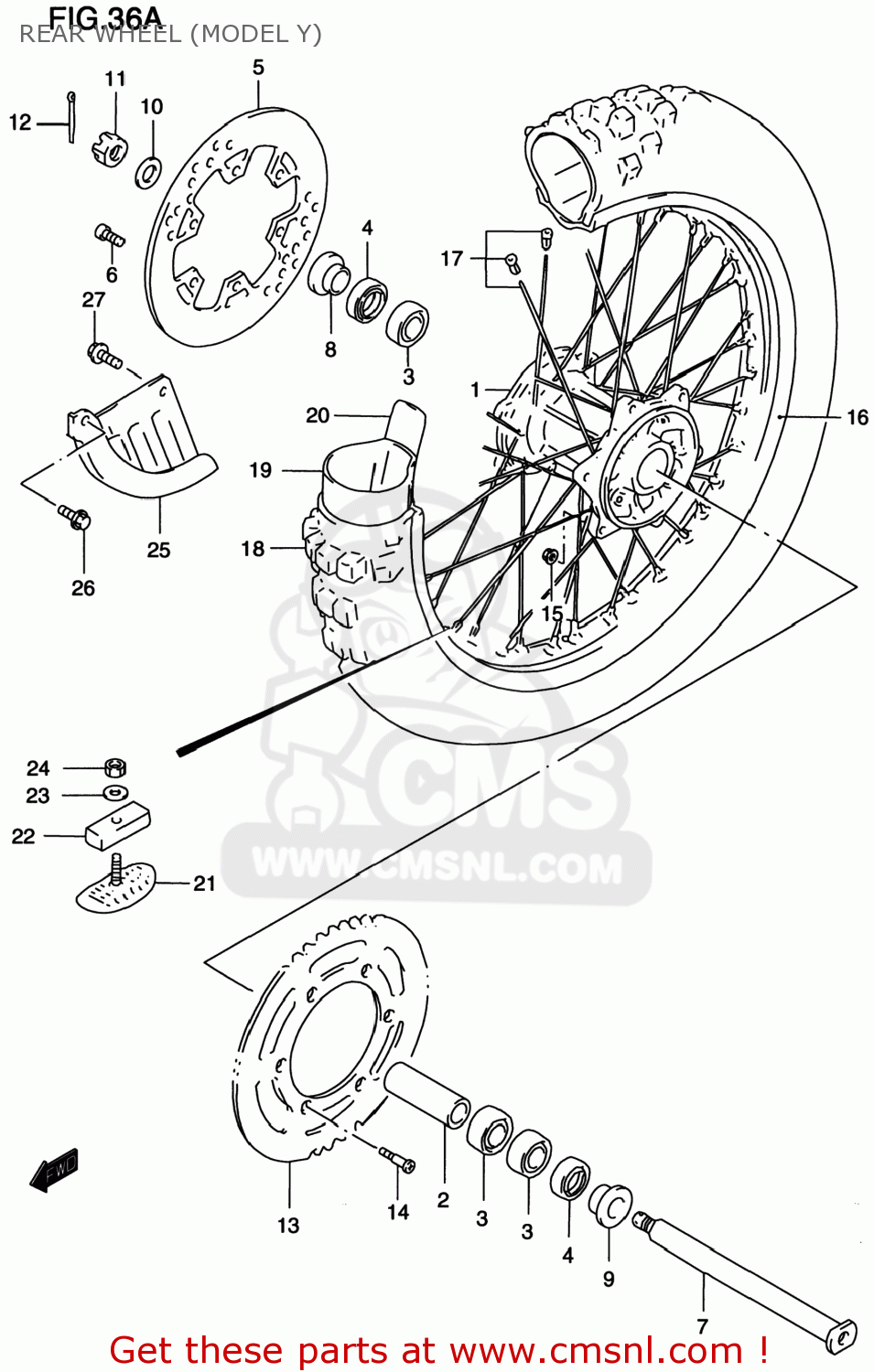

Rear wheel (model y) diagram RM125 1997 (V) USA (E03)
REAR WHEEL (MODEL Y) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411136E00
ref: 1
HUB,RR WHEEL
€ 361.00
2
6473136E00
ref: 2
SPACER,RR HUB BEARING
€ 22.50
3
0926222033
ref: 3
BEARING(22X44X12)
€ 32.50
4
0928330023
ref: 4
SEAL,OIL(30X44X7)
€ 8.50
5
6921136E00
ref: 5
DISC,RR BRAKE
€ 153.50
6
0912006011
ref: 6
09120-06014
SCREW
€ 2.50
7
6471136E00
ref: 7
AXLE,RR
€ 69.00
8
6475136E00
ref: 8
SPACER,RR AXLE
€ 19.00
9
6475136E00
ref: 9
SPACER,RR AXLE
€ 19.00
10
0916019022
ref: 10
WASHER(19X32X3.2)
€ 5.00
11
0831440183
ref: 11
08314-4018A
NUT
€ 4.50
12
0411140308
ref: 12
04111-4030A
PIN,COTTER
€ 1.50
13
6451128E00
ref: 13
SPROCKET,RR(NT:49)
€ 99.00
14
0912008010
ref: 14
BOLT(8X30.5)
€ 2.50
15
0915908067
ref: 15
NUT
€ 5.50
16
6531136E00
ref: 16
RIM,RR WHEEL(1.85X19 AL)
€ 357.00
17
6532028C10
ref: 17
SPOKE SET,RR WHEEL
€ 97.00
18
6511036E10
ref: 18
TIRE,REAR 100/90-19
€ 84.00
19
5520044610
ref: 19
TUBE
€ 41.00
20
6526101B30
ref: 20
PROTECTOR,WHL INR TUBE
€ 3.50
21
6527043D00
ref: 21
STOPPER,BEAD(1.85)
€ 30.50
22
6527127C00
ref: 22
CUSHION,BEAD STOPPER
€ 5.50
23
0832201083
ref: 23
08322-0108A
WASHER
€ 1.50
24
0831000083
ref: 24
08310-0008A
NUT
€ 1.50
25
6923136E00
ref: 25
69231-37F01
COVER,REAR DISC
€ 35.50
26
0155006203
ref: 26
01550-0620A
BOLT
€ 2.50
27
0155006123
ref: 27
01550-0612A
BOLT
€ 2.50
