FRONT WHEEL (MODEL V/W/X/Y)
RM125 1997 (V) USA (E03)

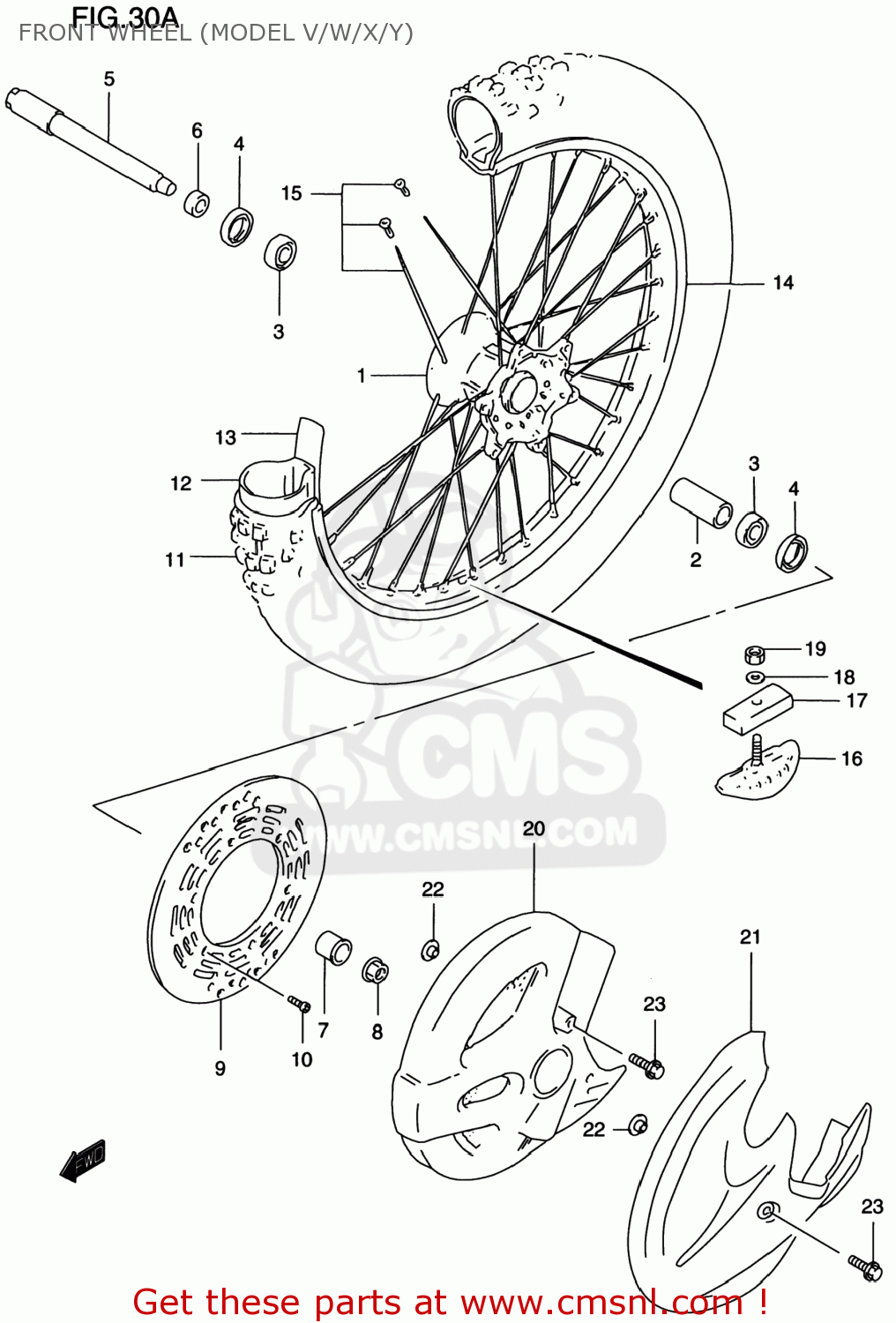

Front wheel (model v/w/x/y) diagram RM125 1997 (V) USA (E03)
FRONT WHEEL (MODEL V/W/X/Y) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411136E10
ref: 1
HUB,FR
€ 153.00
2
5473136E10
ref: 2
SPACER,FR HUB BEARING
€ 13.00
2
5473136E10
ref: 2
SPACER,FR HUB BEARING
€ 13.00
3
0813069047
ref: 3
BEARING
€ 37.50
4
0928325083
ref: 4
SEAL,OIL(25X37X6)
€ 5.00
5
5471136E00
ref: 5
AXLE,FRONT
€ 57.00
6
5474136E10
ref: 6
SPACER,FR AXLE,R
€ 9.00
7
5475136E10
ref: 7
SPACER,FR AXLE,L
€ 11.50
8
0915918016
ref: 8
NUT
€ 9.00
9
5922128C00
ref: 9
DISC,FR BRAKE
€ 193.00
10
0912006011
ref: 10
09120-06014
SCREW
€ 2.50
11-1
5511001B10
ref: 11-1
TIRE, FRONT
€ 0.00
11-1
5511001B10
ref: 11-1
TIRE, FRONT
€ 0.00
11-2
5511036E10
ref: 11-2
TIRE,FR(80/100-21 51M D739F)
€ 0.00
11-2
5511036E10
ref: 11-2
TIRE,FR(80/100-21 51M D739F)
€ 0.00
12
5520016510
ref: 12
TUBE
€ 32.50
13
5526114540
ref: 13
PROTECTOR,WHEEL INNER
€ 5.00
14
5531136E00
ref: 14
RIM,FR WHEEL(1.60X21 AL)(.WHT)
€ 298.00
15
5532036E00
ref: 15
SPOKE SET,FR WHEEL
€ 76.50
16
6527014300
ref: 16
STOPPER,BEAD
€ 26.00
17
6527127C00
ref: 17
CUSHION,BEAD STOPPER
€ 5.50
18
0832201083
ref: 18
08322-0108A
WASHER
€ 1.50
19
0831000083
ref: 19
08310-0008A
NUT
€ 1.50
20-1
5923136E0125Y
ref: 20-1
59231-36E02-25Y
COVER,FRONT BRAKE DISC
€ 39.50
20-1
5923136E0125Y
ref: 20-1
59231-36E02-25Y
COVER,FRONT BRAKE DISC
€ 39.50
20-2
5923136E011KY
ref: 20-2
59231-36E02-1KY
COVER,FRONT BRAKE DISC
€ 25.00
20-2
5923136E011KY
ref: 20-2
59231-36E02-1KY
COVER,FRONT BRAKE DISC
€ 25.00
21
5923136E201KY
ref: 21
COVER,FR BRAKE DISC
€ 46.00
21
5923136E201KY
ref: 21
COVER,FR BRAKE DISC
€ 46.00
22
0916906054
ref: 22
09169-06053
WASHER
€ 2.00
23
0911606170
ref: 23
BOLT(6X16)
€ 3.00
