FRONT WHEEL (MODEL T)
RM125 1997 (V) USA (E03)

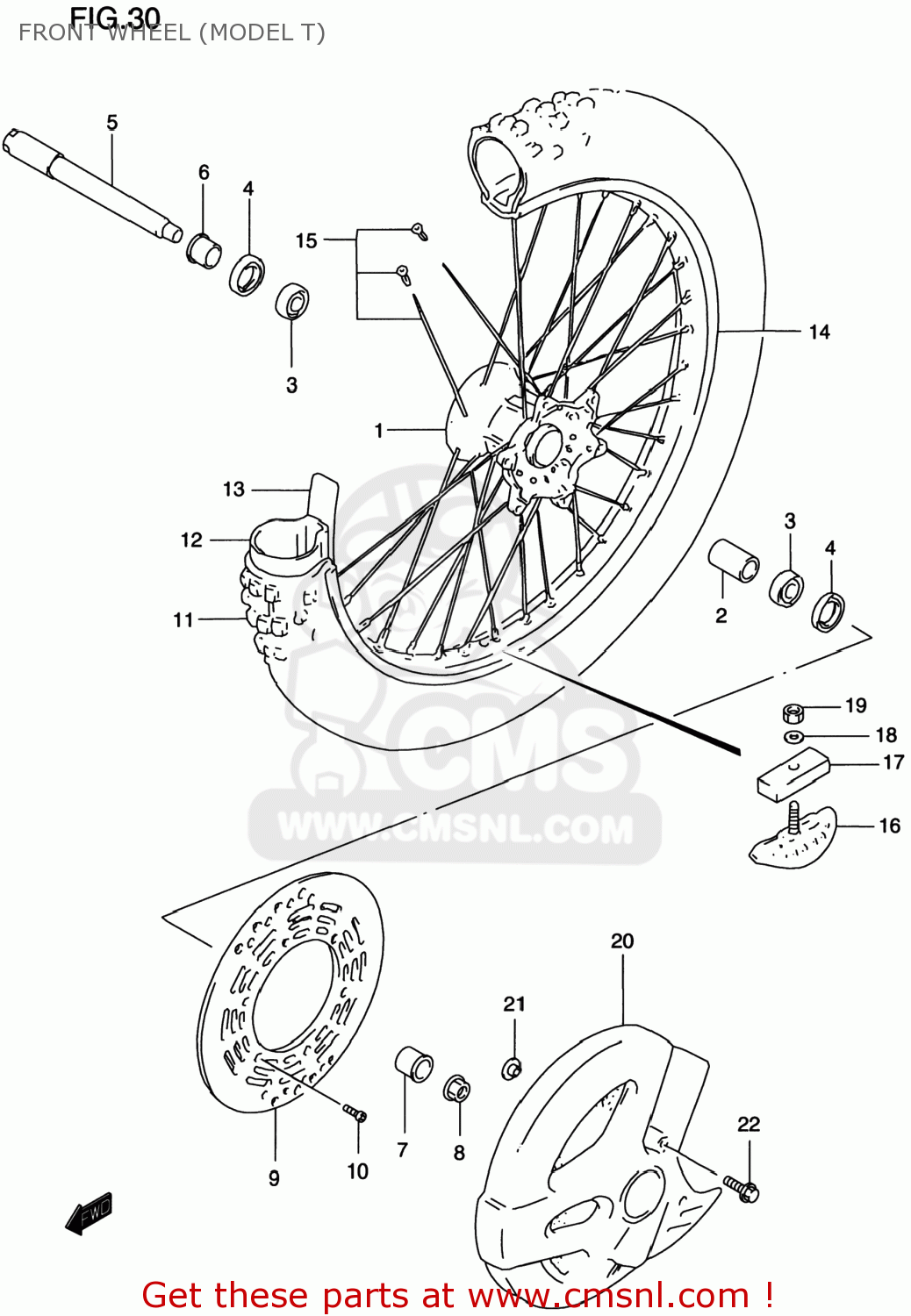

Front wheel (model t) diagram RM125 1997 (V) USA (E03)
FRONT WHEEL (MODEL T) RM125 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411136E00
ref: 1
HUB,FR WHEEL
€ 253.50
2
5473136E00
ref: 2
SPACER,FR HUB BEARING
€ 15.50
2
5473136E00
ref: 2
SPACER,FR HUB BEARING
€ 15.50
3
0813069047
ref: 3
BEARING
€ 37.50
4
0928325083
ref: 4
SEAL,OIL(25X37X6)
€ 5.00
5
5471136E00
ref: 5
AXLE,FRONT
€ 57.00
6
5474136E00
ref: 6
SPACER,FRONT AXLE,RIGHT
€ 13.00
7
5475136E00
ref: 7
SPACER,FR AXLE,L
€ 19.50
8
0915918016
ref: 8
NUT
€ 9.00
9
5922128C00
ref: 9
DISC,FR BRAKE
€ 193.00
10
0912006011
ref: 10
09120-06014
SCREW
€ 2.50
11
5511001B10
ref: 11
TIRE, FRONT
€ 0.00
11
5511001B10
ref: 11
TIRE, FRONT
€ 0.00
12
5520016510
ref: 12
TUBE
€ 32.50
13
5526114540
ref: 13
PROTECTOR,WHEEL INNER
€ 5.00
14
5531128C00
ref: 14
55311-28C01
RIM,FRONT WHEEL (1.60X2
€ 322.50
15
5532028E00
ref: 15
SPOKE SET,FR WHEEL
€ 97.00
16
6527014300
ref: 16
STOPPER,BEAD
€ 26.00
17
6527127C00
ref: 17
CUSHION,BEAD STOPPER
€ 5.50
18
0832201083
ref: 18
08322-0108A
WASHER
€ 1.50
19
0831000083
ref: 19
08310-0008A
NUT
€ 1.50
20
5923136E0025Y
ref: 20
59231-36E02-25Y
COVER,FRONT BRAKE DISC
€ 39.50
20
5923136E0025Y
ref: 20
59231-36E02-25Y
COVER,FRONT BRAKE DISC
€ 39.50
21
0916906054
ref: 21
09169-06053
WASHER
€ 2.00
22
0911606170
ref: 22
BOLT(6X16)
€ 3.00
