CRANKSHAFT
RM250 1983 (D) USA (E03)

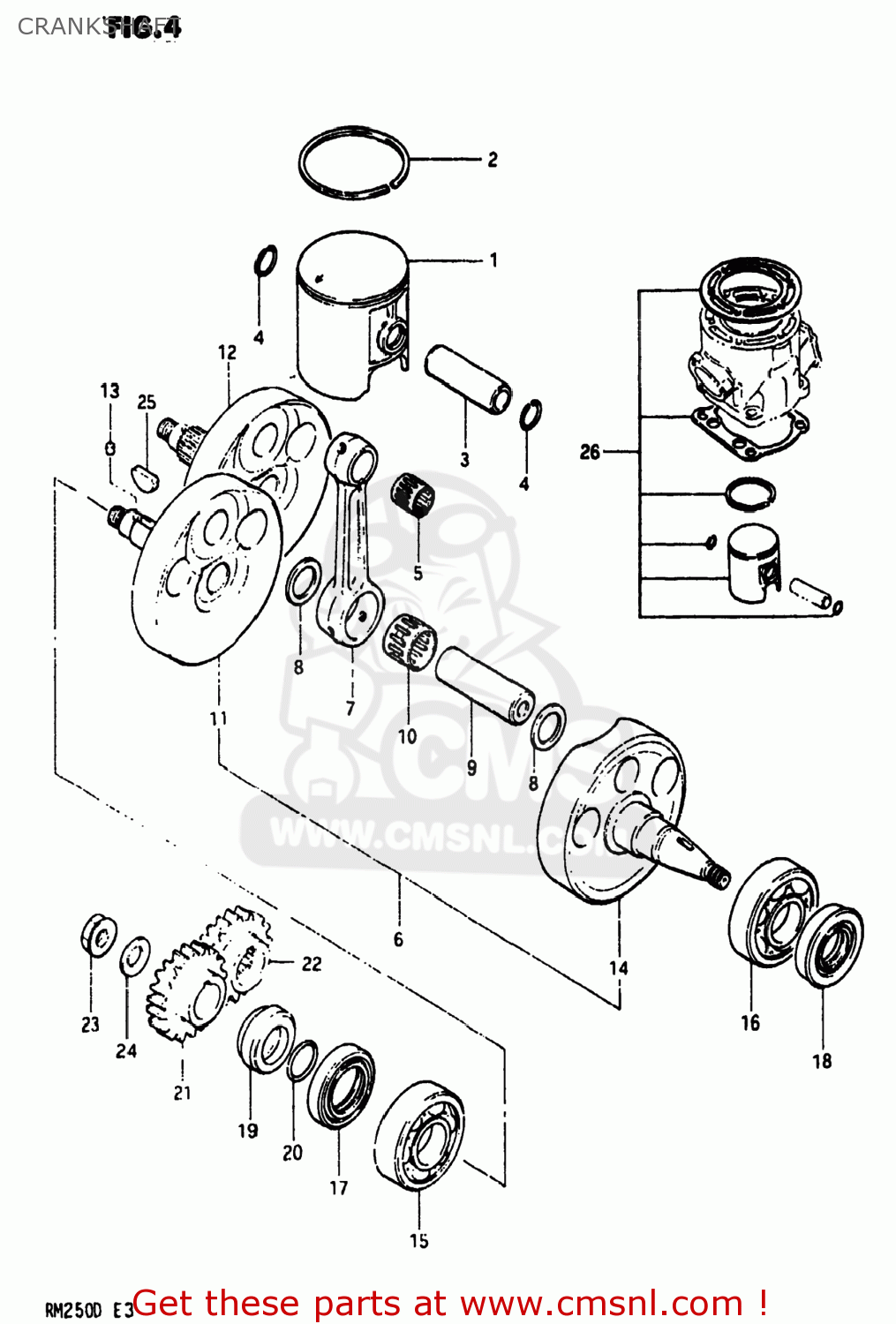

Crankshaft diagram RM250 1983 (D) USA (E03)
CRANKSHAFT RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211014300
ref: 1-1
12110-14301
PISTON
€ 500.00
1-2
1211014300025
ref: 1-2
12103-14870-025
PISTON
€ 193.50
1-3
1211014300050
ref: 1-3
12103-14830-050
PISTON
€ 225.00
2-1
1214114310
ref: 2-1
12141-13A11
RING,PISTON
€ 31.50
2-2
1214114310025
ref: 2-2
RING,PISTON
€ 16.50
2-3
1214114310050
ref: 2-3
12141-13A11-050
RING,PISTON (OS:0.5)
€ 26.00
3
1215115002
ref: 3
12151-13A00-0A0
PIN,PISTON (18MM)
€ 14.50
4
0938118002
ref: 4
CIRCLIP
€ 1.50
5
0926318011
ref: 5
09263-18016
BEARING(18X23X22)
€ 14.00
6-1
1220014300
ref: 6-1
12200-14302
CRANKSHAFT ASSEMBLY
€ 546.00
6-2
1220014311
ref: 6-2
12200-14312
CRANKSHAFT ASSEMBLY
€ 709.50
7
1216114300
ref: 7
12161-41103
ROD,CONNECTING
€ 111.50
8
0916024015
ref: 8
WASHER(24X29X1.5)
€ 7.50
9
1221114301
ref: 9
PIN,CRANK
€ 27.00
10
0926324014
ref: 10
09263-24026
BEARING
€ 62.50
11
1222014301
ref: 11
12220-14302
CRANKSHAFT
€ 174.50
12
1222014311
ref: 12
CRANKSHAFT
€ 143.00
13
0621103052
ref: 13
04221-03059
PIN 3X5
€ 1.50
14-1
1226114301
ref: 14-1
12261-14302
CRANKSHAFT,LEFT
€ 194.50
14-2
1226114302
ref: 14-2
CRANKSHAFT,LEFT
€ 194.50
15
0926225047
ref: 15
09262-25084
BEARING
€ 29.00
16-1
0926230058
ref: 16-1
09262-30066
BEARING
€ 38.00
16-2
0926230064
ref: 16-2
09262-30066
BALL BEARING 30X62X16
€ 38.00
17
0928936003
ref: 17
SEAL,OIL(36X52X8)
€ 47.00
18
0928320034
ref: 18
SEAL,OIL(19.6X37X8)
€ 6.00
19
1235914300
ref: 19
SPACER,PRIMARY DRIVE GEAR
€ 11.50
20
0928022001
ref: 20
O RING(D:2.4,ID:21.8)
€ 2.00
21
2111140302
ref: 21
GEAR,PRIMARY DRIVE
€ 41.00
22
2111114310
ref: 22
21111-14321
GEAR,PRIMARY DRIVE
€ 46.50
23
0915914012
ref: 23
NUT
€ 23.50
24
0916414011
ref: 24
WASHER
€ 2.00
25
0834131059
ref: 25
KEY
€ 3.00
26-1
1210014850
ref: 26-1
PISTON SET
€ 0.00
26-2
1210014850025
ref: 26-2
PISTON KIT (OS:0.25)
€ 0.00
26-3
1210014870
ref: 26-3
PISTON SET
€ 61.50
26-4
1210014870025
ref: 26-4
PISTON KIT (OS:0.25)
€ 48.50
