GEAR SHIFTING (MODEL D)
RM250 1983 (D) USA (E03)

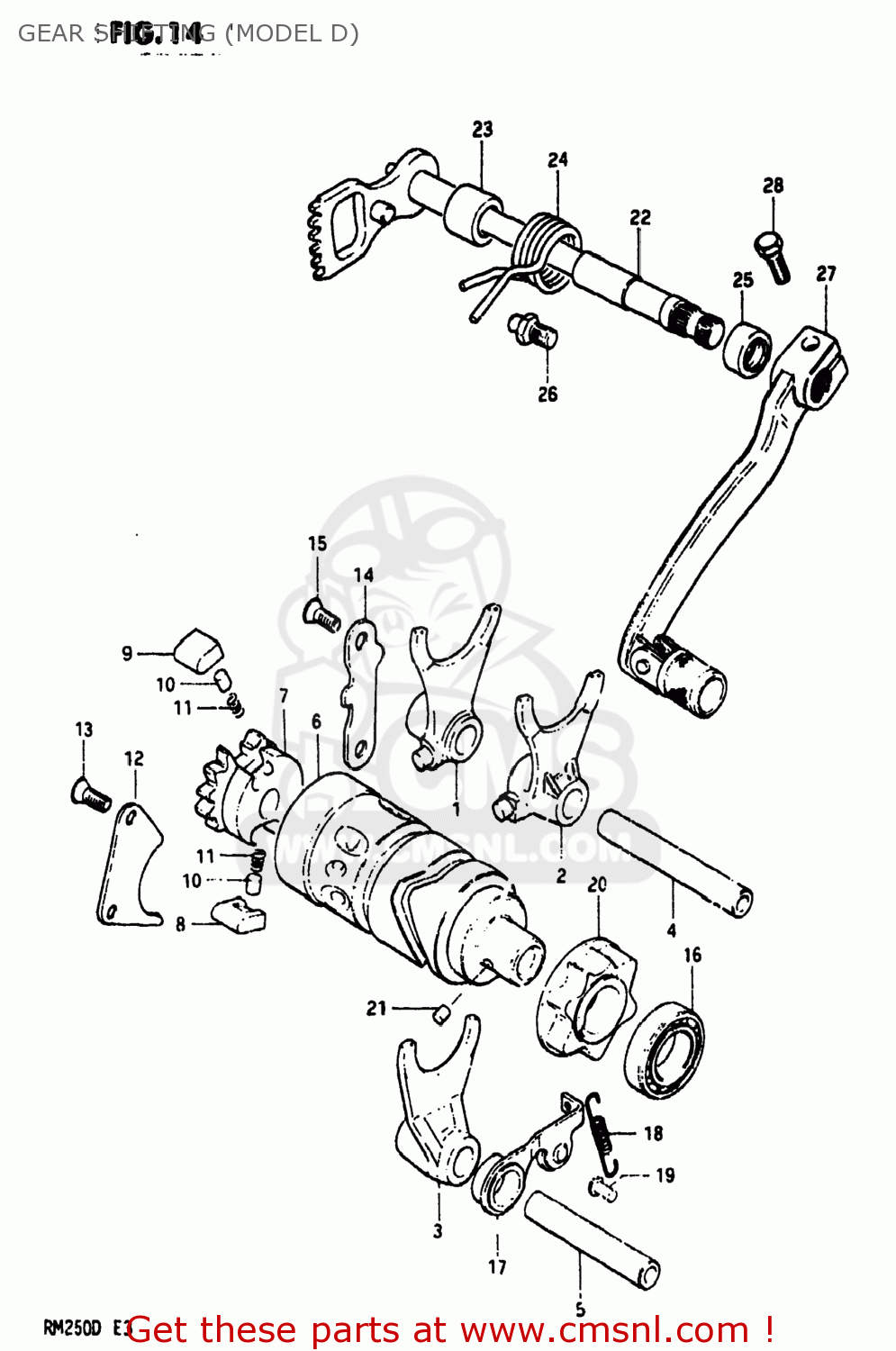

Gear shifting (model d) diagram RM250 1983 (D) USA (E03)
GEAR SHIFTING (MODEL D) RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521114310
ref: 1
25211-14311
FORK,GEAR SHIFT NO.1
€ 51.50
2
2522114310
ref: 2
25221-14311
FORK,GEAR SHIFT NO.2
€ 67.50
3
2523114311
ref: 3
25231-14X00
FORK,GEAR SHIFT NO.3
€ 68.50
4
2541140400
ref: 4
25411-14331
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2542114320
ref: 5
25421-14330
SHAFT,GEAR SHIFT FORK
€ 10.00
6
2531014310
ref: 6
25310-14312
CAM,GEAR SHIFT
€ 332.00
7
2532211000
ref: 7
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
8
2532311000
ref: 8
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532411000
ref: 9
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533116500
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 4.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534114310
ref: 14
GUIDE,GEAR SHIFTING CABLE
€ 7.50
15
0212206128
ref: 15
02122-06127
SCREW
€ 3.00
16
0811369030
ref: 16
BEARING
€ 14.00
17
2535014310
ref: 17
25350-14311
STOPPER,GEAR SHIFTING
€ 8.50
18
0944306049
ref: 18
SPRING
€ 4.50
19
0922004001
ref: 19
09223-04001
RIVET
€ 1.50
20
2538114310
ref: 20
PLATE,GEAR SHIFT CAM STOPPER
€ 10.00
21
0621104063
ref: 21
04221-04069
PIN 4X6
€ 2.00
22
2551014300
ref: 22
25510-143V0
SHAFT,GEAR SHIFT
€ 73.00
23
0918012068
ref: 23
SPACER(12X20X15.3)
€ 3.00
24
0944426013
ref: 24
SPRING
€ 3.50
25
0928512002
ref: 25
09285-12006
OIL SEAL
€ 7.00
26
2567101000
ref: 26
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
27
2560014310
ref: 27
25600-14321
LEVER ASSEMBLY,GEAR SHIFTING
€ 65.00
28
0151706258
ref: 28
01550-06257
BOLT
€ 2.50
