WATER PUMP
RM250 1983 (D) USA (E03)

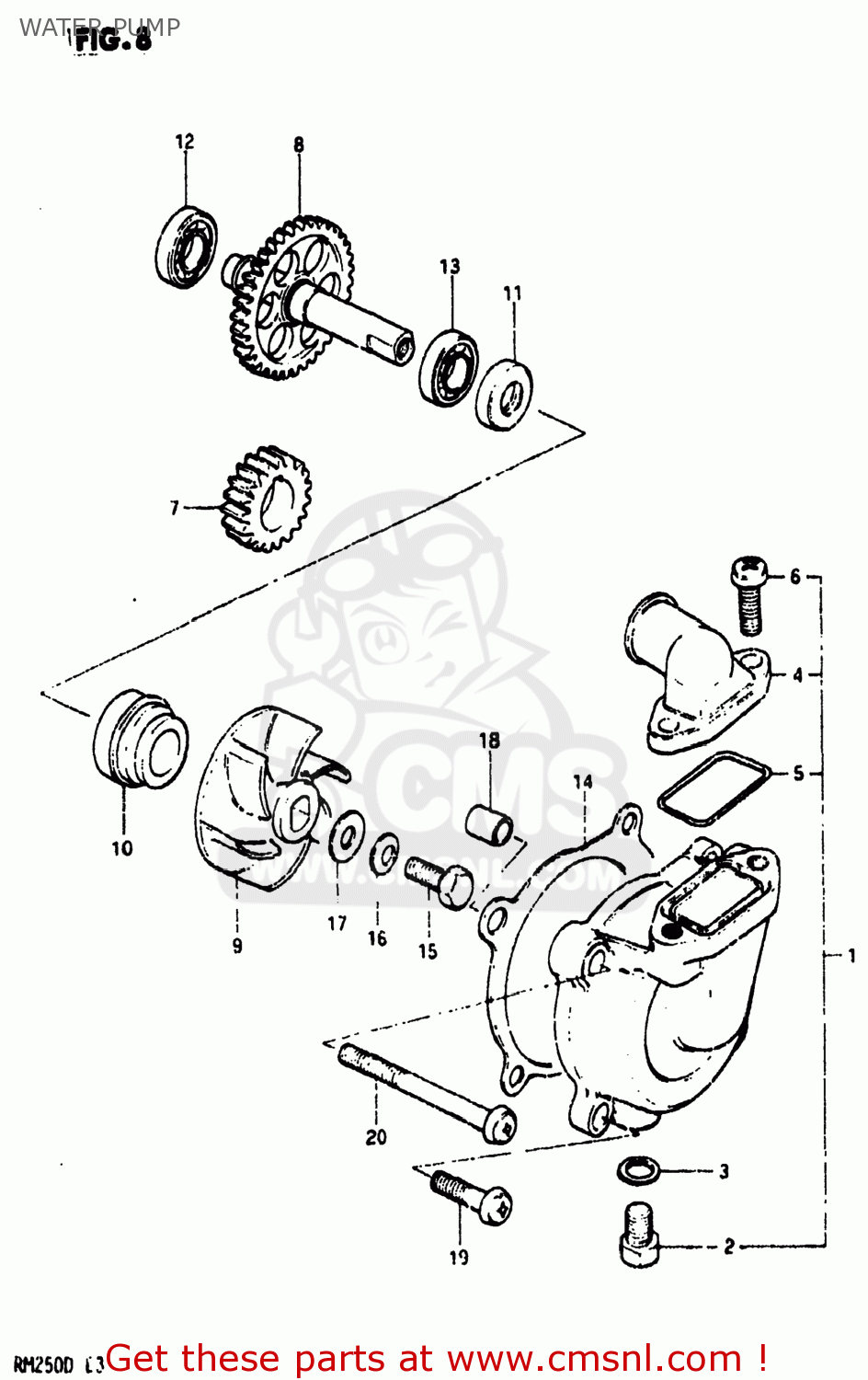

Water pump diagram RM250 1983 (D) USA (E03)
WATER PUMP RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1741014300
ref: 1
17410-1431V
CASE,WATER PUMP
€ 73.50
2
1741514300
ref: 2
BOLT,DRAIN
€ 2.00
3
1741314100
ref: 3
09168-08016
GASKET,DRAIN (NAS)
€ 1.00
4
1741214300
ref: 4
17412-28E00
CONNECTOR
€ 23.50
5
1741414300
ref: 5
O RING,WATER PUMP CONNECTOR
€ 3.00
6
0211206165
ref: 6
02112-0616A
SCREW
€ 2.00
7
1745114300
ref: 7
GEAR,WATER PUMP DRIVE
€ 20.00
8
1746114300
ref: 8
GEAR,WATER PUMP DRIVEN(NT:36)
€ 87.50
9
1749114300
ref: 9
IMPELLER,WATER PUMP
€ 18.50
10
1747014100
ref: 10
17470-02F00
SEAL,WATER PUMP SHAFT
€ 21.50
11
0928310004
ref: 11
SEAL,OIL(10X21X5)
€ 4.50
12
0926210004
ref: 12
BEARING(10X22X6)
€ 20.50
13
0926212003
ref: 13
08113-69010
BEARING
€ 19.00
14
1743114302
ref: 14
17431-14303
GASKET,WATER PUMP CASE (MCA)
€ 7.00
15
0910006099
ref: 15
BOLT(6X13)
€ 2.00
16
0916406006
ref: 16
WASHER
€ 2.50
17
0916806016
ref: 17
09168-06025
GASKET (NAS)
€ 3.00
18
0421109129
ref: 18
PIN
€ 2.00
19
0211206208
ref: 19
02112-06207
SCREW
€ 2.00
20
0211206608
ref: 20
02112-06607
SCREW 6X60
€ 2.50
