REAR BRAKE (MODEL D)
RM250 1983 (D) USA (E03)

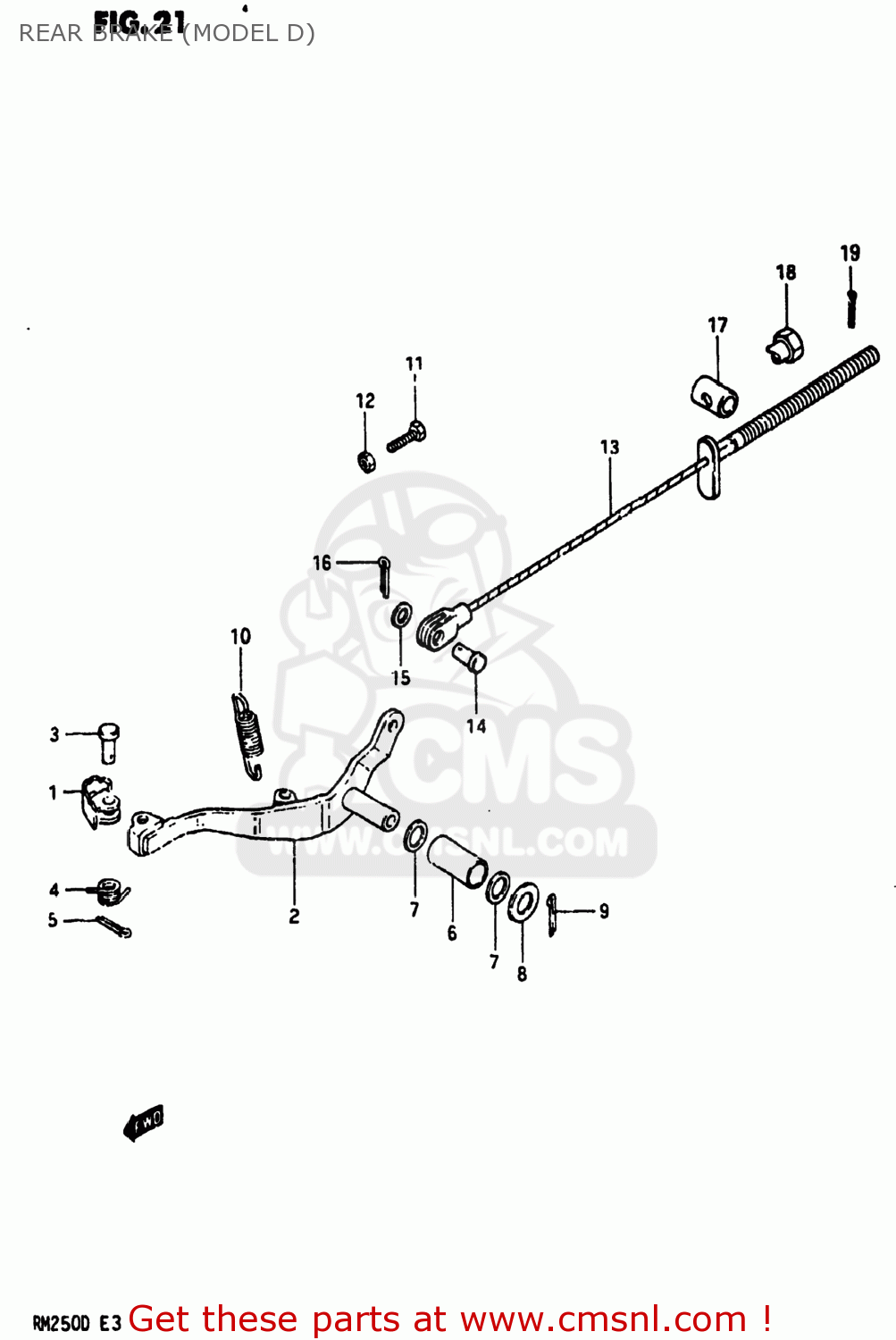

Rear brake (model d) diagram RM250 1983 (D) USA (E03)
REAR BRAKE (MODEL D) RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311014130
ref: 1
PEDAL,BRAKE
€ 6.00
2
4312014330
ref: 2
ARM,BRAKE PEDAL
€ 36.00
3
0920006038
ref: 3
PIN
€ 2.00
4
0944411003
ref: 4
09444-11005
SPRING
€ 3.00
5
0411120158
ref: 5
04111-2015A
PIN
€ 1.50
6
0931912022
ref: 6
BUSHING
€ 19.50
7
0928012006
ref: 7
O RING(D:2.2,ID:11.8)
€ 2.50
8
0821112223
ref: 8
WASHER
€ 2.50
9
0411130208
ref: 9
04111-3020A
PIN 30X20
€ 1.50
10
0944831024
ref: 10
09448-31024-XC0
SPRING
€ 9.00
11
0912806028
ref: 11
SCREW(6X23)
€ 2.00
12
0831011068
ref: 12
08310-00067
NUT
€ 2.50
13
5851014130
ref: 13
CABLE,RR BRAKE
€ 19.00
14
0920005001
ref: 14
PIN(L:17.5)
€ 1.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0411120208
ref: 16
04111-2020A
PIN 20X20
€ 1.50
17
0920913004
ref: 17
PIN
€ 7.50
18
0915006009
ref: 18
09150-06010
NUT (6MM)
€ 3.50
19
0411120158
ref: 19
04111-2015A
PIN
€ 1.50
