FRAME - SEAT
RM250 1983 (D) USA (E03)

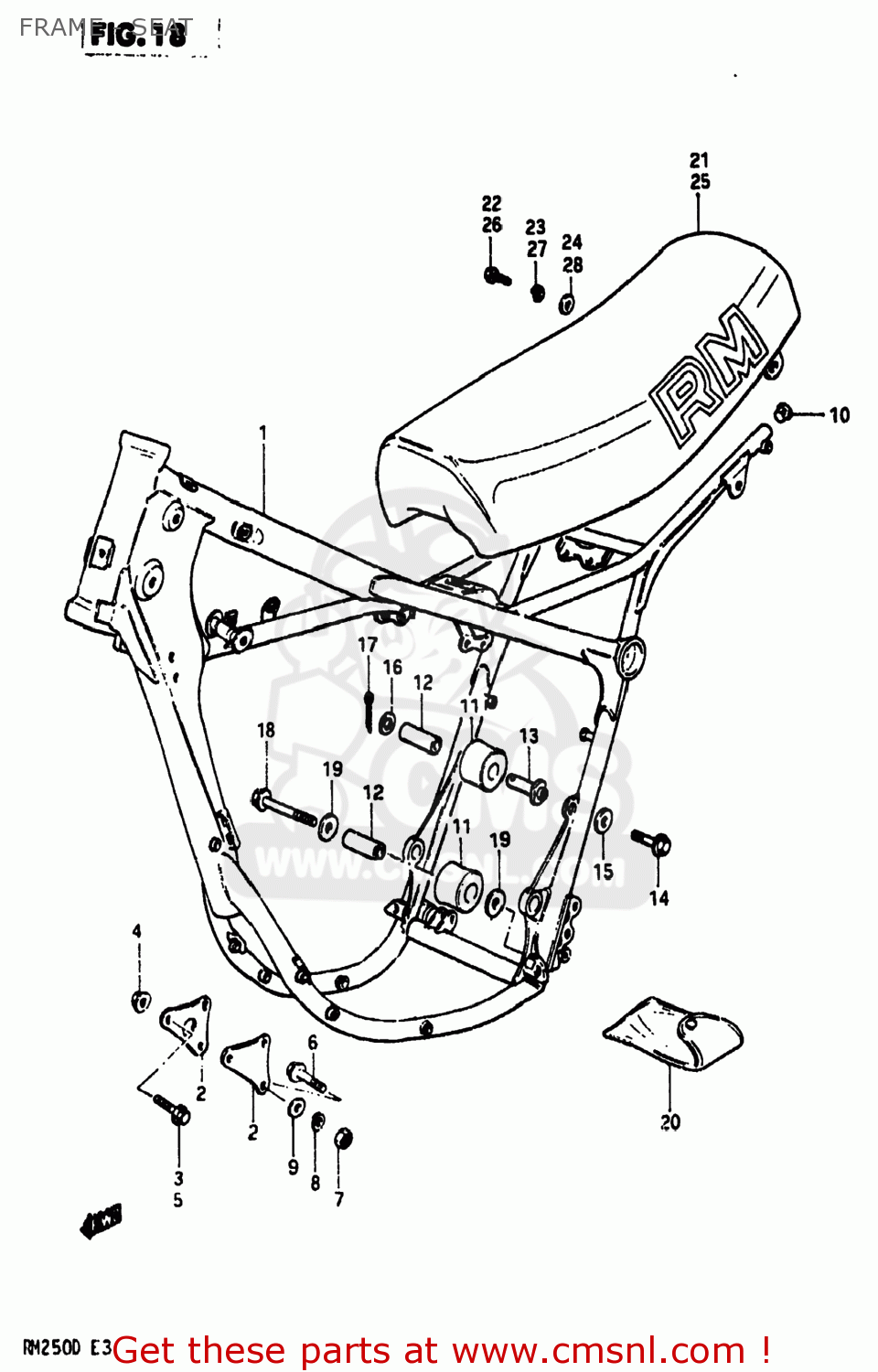

Frame - seat diagram RM250 1983 (D) USA (E03)
FRAME - SEAT RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110014301019
ref: 1-1
FRAME
€ 0.00
1-2
4110014331019
ref: 1-2
FRAME
€ 661.50
2
4199114300
ref: 2
PLATE,ENGINE MOUNTING
€ 17.50
3
0910308027
ref: 3
09103-08339
BOLT 8X55
€ 3.50
4
0831931088
ref: 4
08319-3108A
NUT
€ 2.50
5
0910308027
ref: 5
09103-08339
BOLT 8X55
€ 3.50
6
0910308103
ref: 6
09103-08181
BOLT
€ 5.00
7
0831022088
ref: 7
08310-00087
NUT 8MM
€ 2.00
8
0832121088
ref: 8
08321-01087
LOCK WASHER
€ 2.00
9
0832211088
ref: 9
08322-01087
WASHER
€ 2.00
10
0925014006
ref: 10
PLUG(OD:17)
€ 3.00
11
4391114200
ref: 11
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
12
4391340400
ref: 12
SPACER,CHAIN LENGTH ROLLER
€ 8.00
13
4391514300
ref: 13
43915-14301
BOSS,CHAIN LENGTH ROLL
€ 16.50
14
0151706208
ref: 14
01550-06207
BOLT,REAR
€ 2.50
15
0916006007
ref: 15
09160-06084
WASHER
€ 2.00
16
0832211128
ref: 16
08322-01127
WASHER
€ 2.00
17
0411125208
ref: 17
04111-2520A
PIN 25X20
€ 2.00
18
0910308043
ref: 18
BOLT(8X45)
€ 4.50
19
0916008035
ref: 19
09160-08130
WASHER
€ 2.00
20
0980000233
ref: 20
TOOL SET
€ 0.00
21
4510014300865
ref: 21
45100-14130-49R
SEAT ASSEMBLY
€ 213.50
22
0110708168
ref: 22
01500-0816B
BOLT
€ 2.00
23
0832131088
ref: 23
08321-01087
WASHER,LOCK,8.
€ 2.00
24
0916008033
ref: 24
09160-08126
WASHER (8.5X20X2.6)
€ 1.50
25
451001413049R
ref: 25
SEAT ASSEMBLY
€ 213.50
26
0110708208
ref: 26
01500-08207
BOLT
€ 3.00
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0916008065
ref: 28
09160-08126
WASHER
€ 1.50
