Buy Suzuki RM Parts Online
home
HANDLEBAR
RM250 1983 (D) USA (E03)

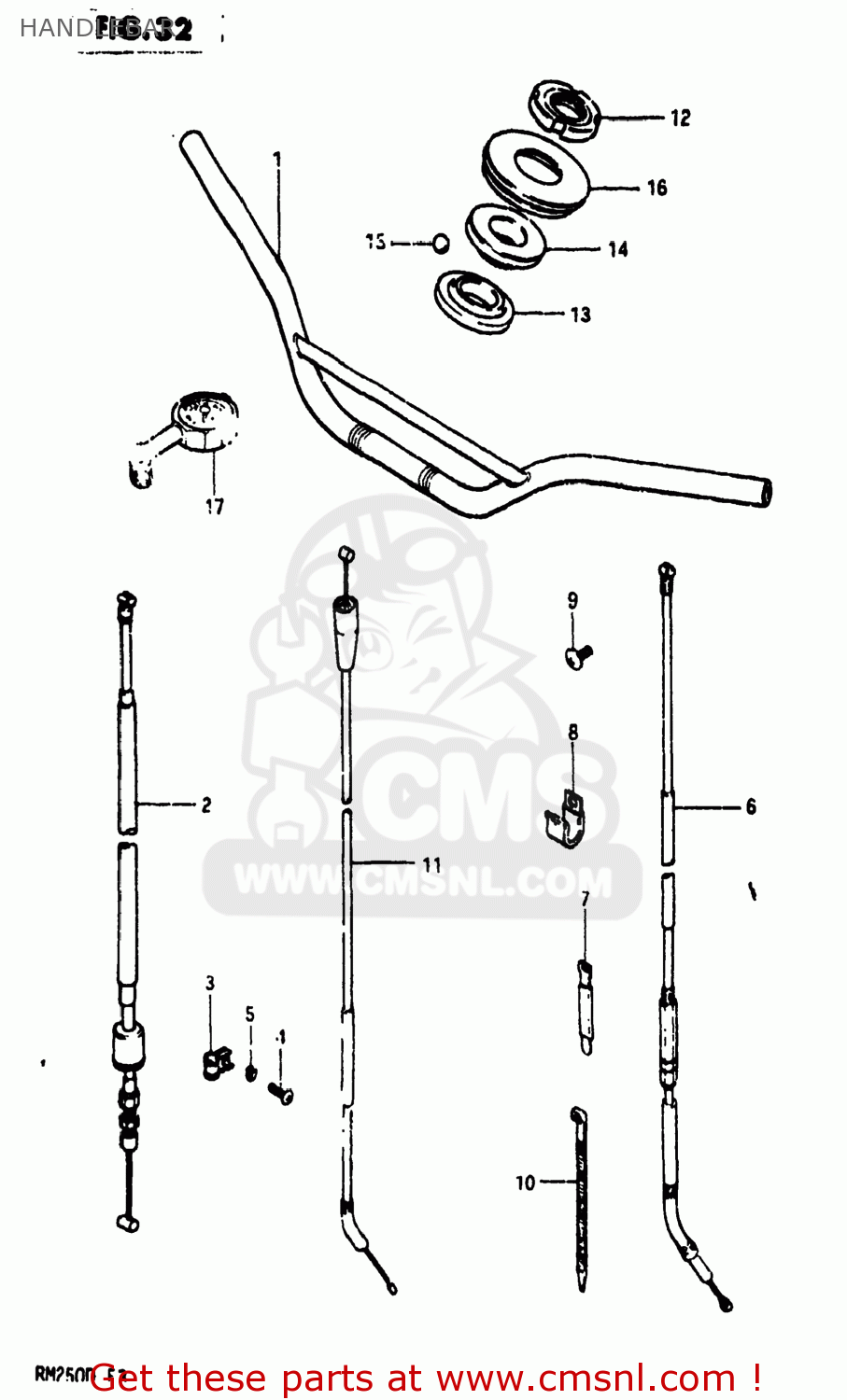

Handlebar diagram RM250 1983 (D) USA (E03)
HANDLEBAR RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
561101421108C
ref: 1-1
HANDLEBAR
€ 76.50
1-2
5611014211291
ref: 1-2
HANDLEBAR
€ 63.00
2-1
5810014202
ref: 2-1
CABLE ASSY,FR BRAKE
€ 34.00
2-2
5810014310
ref: 2-2
CABLE ASSY,FR BRAKE
€ 31.50
3
5862014201
ref: 3
58620-40401
GUIDE,CABLE
€ 6.50
4
0211206208
ref: 4
02112-06207
SCREW
€ 2.00
5
0832121068
ref: 5
08321-01067
LOCK WASHER
€ 2.50
6
5820014301
ref: 6
CABLE ASSY,CLUTCH
€ 40.00
7
0940718301
ref: 7
CLAMP
€ 6.00
8
0940300069
ref: 8
CLAMP
€ 8.50
9
0215206108
ref: 9
02142-0610A
SCREW
€ 2.00
10
0940720401
ref: 10
09407-25402
CLAMP
€ 4.50
11-1
5830014300
ref: 11-1
58300-14X07
CABLE ASSEMBLY,THROTTLE
€ 30.50
11-2
5830014310
ref: 11-2
58300-14X08
CABLE ASSEMBLY,THROTTLE
€ 29.00
12
5163140200
ref: 12
NUT,STEERING STEM
€ 12.00
13
5161140200
ref: 13
51611-40201
RACE,STEERING,INNER,UPPER
€ 8.50
14
5162140200
ref: 14
51621-08D00
RACE,STEERING,OUTER,UPPER
€ 17.00
15
0611108003
ref: 15
BALL
€ 1.50
16
5164340200
ref: 16
SEAL,STEERING UPR DUST
€ 7.50
17
9620041330
ref: 17
GAUGE ASSY,AIR PRESSURE
€ 77.50
up
