GEAR SHIFTING (MODEL Z)
RM250 1983 (D) USA (E03)

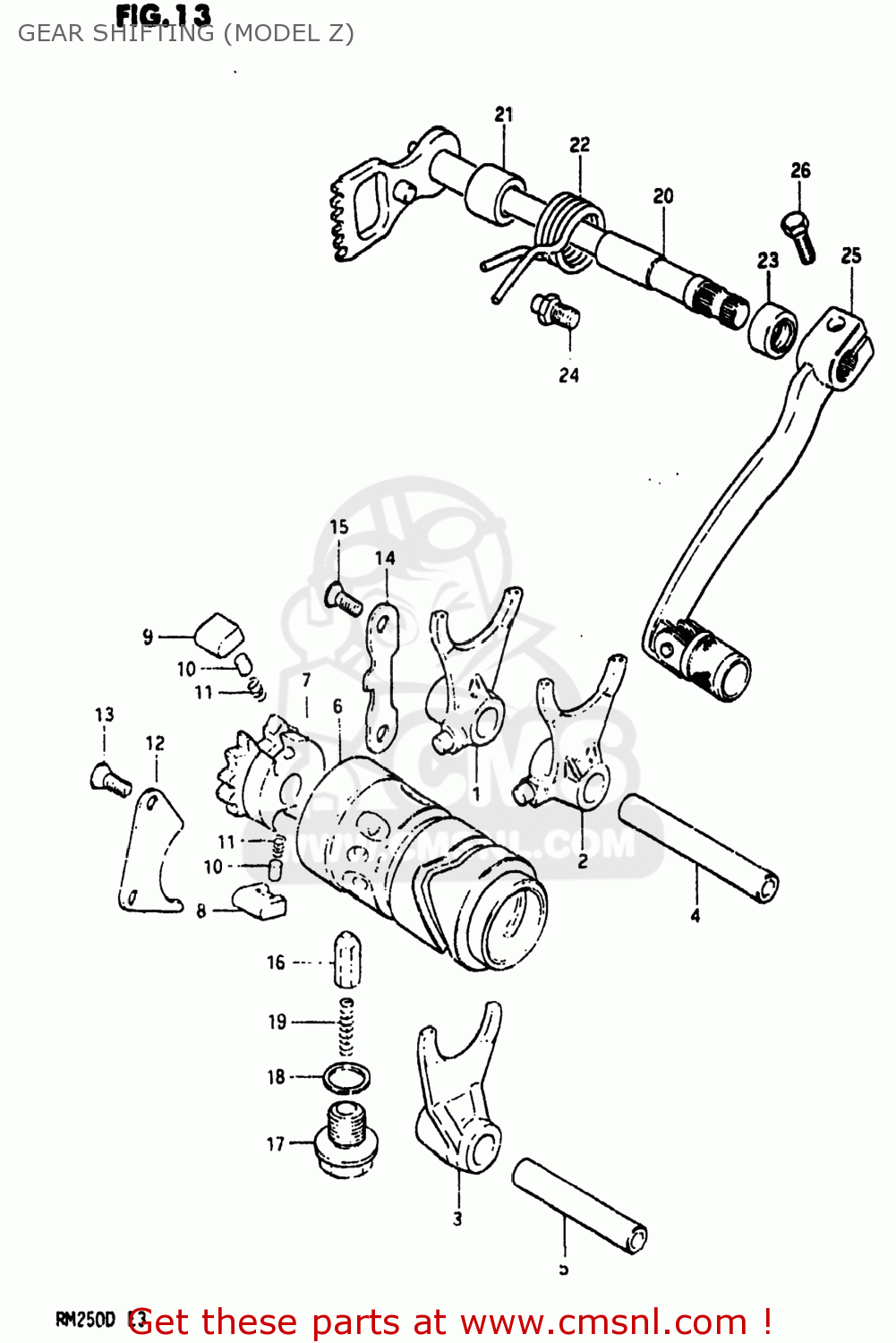

Gear shifting (model z) diagram RM250 1983 (D) USA (E03)
GEAR SHIFTING (MODEL Z) RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521114200
ref: 1
FORK,GEAR SHIFT NO.1
€ 60.50
2
2522114300
ref: 2
25221-14X02
FORK,GEAR SHIFT NO.2
€ 20.00
3
2523140302
ref: 3
25231-40X01
FORK,GEAR SHIFT NO.3
€ 41.00
4
2541114310
ref: 4
25411-14311
SHAFT,GEAR SHIFT FORK
€ 14.50
5
2542114310
ref: 5
SHAFT,GEAR SHIFT FORK
€ 0.00
6
2531014213
ref: 6
CAM,GEAR SHIFT
€ 147.00
7
2532211000
ref: 7
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
8
2532311000
ref: 8
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532411000
ref: 9
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533116500
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 4.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534140400
ref: 14
25341-40001
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206128
ref: 15
02122-06127
SCREW
€ 3.00
16
2535118000
ref: 16
25351-39300
STOPPER,GEAR SHIFTING
€ 5.00
17
2535211000
ref: 17
25352-11010
BOLT,GEAR SHAFT CAM STOPPER
€ 4.50
18
0916814004
ref: 18
GASKET(14X19.2X2) (NAS)
€ 2.50
19
0944006020
ref: 19
SPRING
€ 14.00
20
2551014300
ref: 20
25510-143V0
SHAFT,GEAR SHIFT
€ 73.00
21
0918012068
ref: 21
SPACER(12X20X15.3)
€ 3.00
22
0944426013
ref: 22
SPRING
€ 3.50
23
0928512002
ref: 23
09285-12006
OIL SEAL
€ 7.00
24
2567101000
ref: 24
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
25
2560014300
ref: 25
LEVER ASSEMBLY,GEAR SHIFTING
€ 215.00
26
0910006091
ref: 26
01500-06207
BOLT
€ 2.00
