TRANSMISSION (MODEL Z)
RM250 1983 (D) USA (E03)

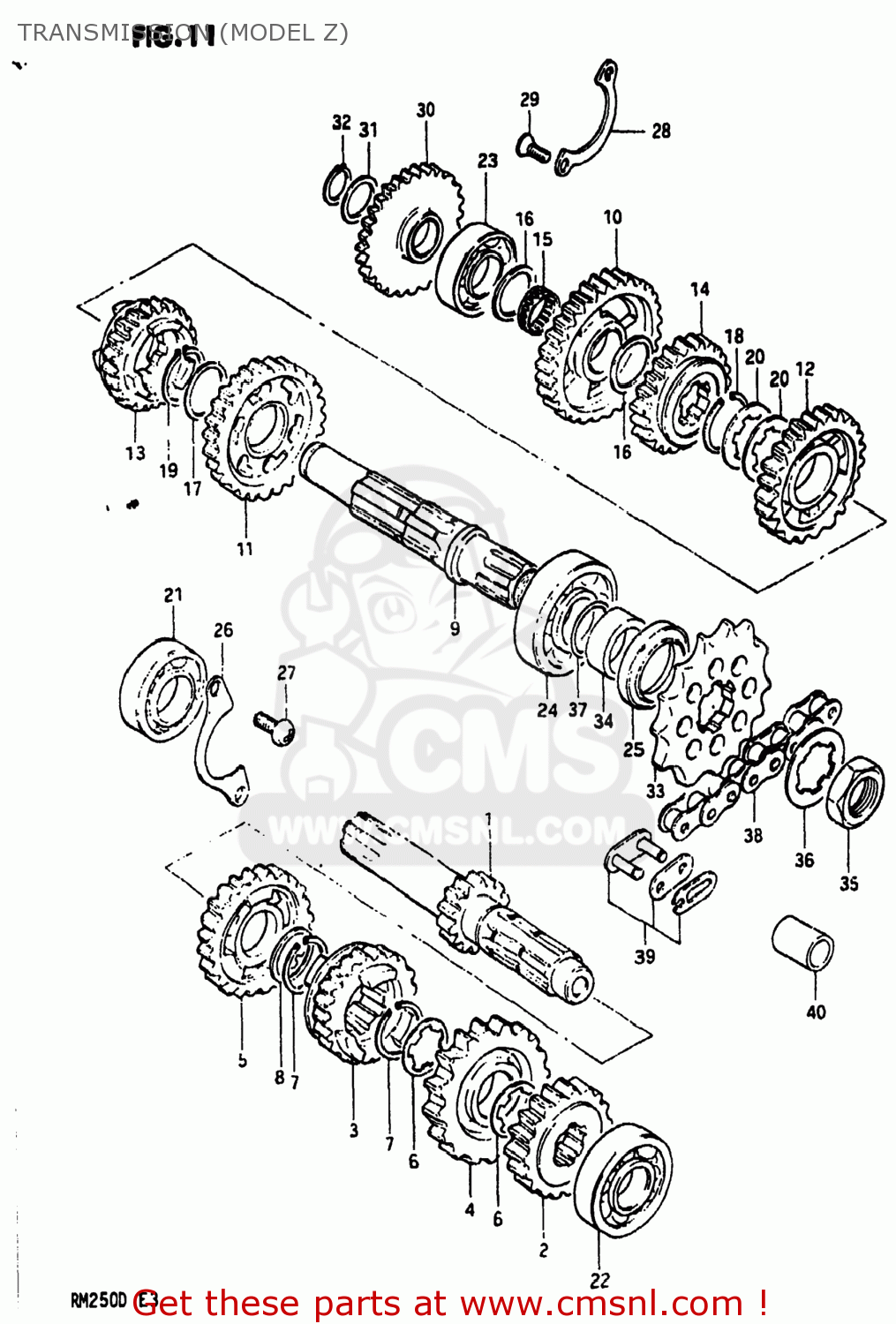

Transmission (model z) diagram RM250 1983 (D) USA (E03)
TRANSMISSION (MODEL Z) RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412114301
ref: 1
SHAFT,COUNTER
€ 88.00
2
2422114300
ref: 2
GEAR,SECOND DRIVE
€ 79.50
3
2423114300
ref: 3
24231-14301
GEAR,THIRD DRIVE
€ 48.50
4
2424114300
ref: 4
24241-14301
GEAR,FOURTH DRIVE
€ 43.50
5
2425114300
ref: 5
GEAR,FIFTH DRIVE
€ 34.00
6
0916722011
ref: 6
WASHER,LOCK
€ 3.00
7
0938022006
ref: 7
CIRCLIP
€ 3.00
8
0918122002
ref: 8
SHIM(22X28X0.5)
€ 1.00
9
2413114300
ref: 9
SHAFT,DRIVE
€ 58.00
10
2431114201
ref: 10
GEAR,1ST DRIVEN(NT:27)
€ 78.50
11
2432014300
ref: 11
GEAR,SECOND DRIVEN
€ 33.50
12
2433114301
ref: 12
GEAR,THIRD DRIVEN
€ 52.00
13
2434114300
ref: 13
GEAR,FOURTH DRIVEN
€ 50.00
14
2435114300
ref: 14
GEAR,FIFTH DRIVEN
€ 36.50
15
0926317004
ref: 15
BEARING(17X21X9.8)
€ 7.00
16
0821117281
ref: 16
09181-17195
WASHER
€ 3.00
17
0822125325
ref: 17
SHIM
€ 2.00
18
0938022006
ref: 18
CIRCLIP
€ 3.00
19
0833131258
ref: 19
08331-3125A
CIRCLIP,25MM
€ 2.00
20
0916722013
ref: 20
WASHER,LOCK
€ 2.50
21
0926220009
ref: 21
09262-20073
BEARING
€ 19.00
22
0926217008
ref: 22
09262-17023
BEARING
€ 14.00
23
0926217008
ref: 23
09262-17023
BEARING
€ 14.00
24
0926222014
ref: 24
09262-22028
BEARING
€ 59.50
25
0928332003
ref: 25
SEAL,OIL(32X42X6)
€ 3.50
26
2474140300
ref: 26
PLATE,COUNTERSHAFT BEARING
€ 18.00
27
0211206128
ref: 27
02112-06127
SCREW 6X12
€ 2.00
28
2475140300
ref: 28
PLATE,DRIVESHAFT BEARING
€ 5.50
29
0212206128
ref: 29
02122-06127
SCREW
€ 3.00
30
2626041101
ref: 30
26260-13A10
GEAR,KICK STARTER IDLE
€ 52.00
31
0821117241
ref: 31
WASHER
€ 2.00
32
0938017001
ref: 32
CIRCLIP
€ 2.00
33-1
2751114300
ref: 33-1
27511-47D00
SPROCKET,ENGINE
€ 23.00
33-2
2751114310
ref: 33-2
27511-37F00
SPROCKET,ENGINE
€ 23.50
33-3
2751114320
ref: 33-3
SPROCKET(NT:15)
€ 20.00
34
0918022026
ref: 34
SPACER(22X32X9.5)
€ 10.50
35
0914018009
ref: 35
NUT
€ 6.50
36
0916722012
ref: 36
WASHER,LOCK
€ 1.50
37
0928022003
ref: 37
O RING(D:1.7,ID:22)
€ 2.50
38
2760014212
ref: 38
27600-28C01-116
CHAIN ASSEMBLY,DRIVE
€ 80.00
39-1
2762014252
ref: 39-1
JOINT ASSEMBLY,CHAIN
€ 3.00
39-2
2762014261
ref: 39-2
27620-14262
JOINT ASSEMBLY,CHAIN
€ 0.00
40
0918012068
ref: 40
SPACER(12X20X15.3)
€ 3.00
