FRONT FORK (MODEL D)
RM250 1983 (D) USA (E03)

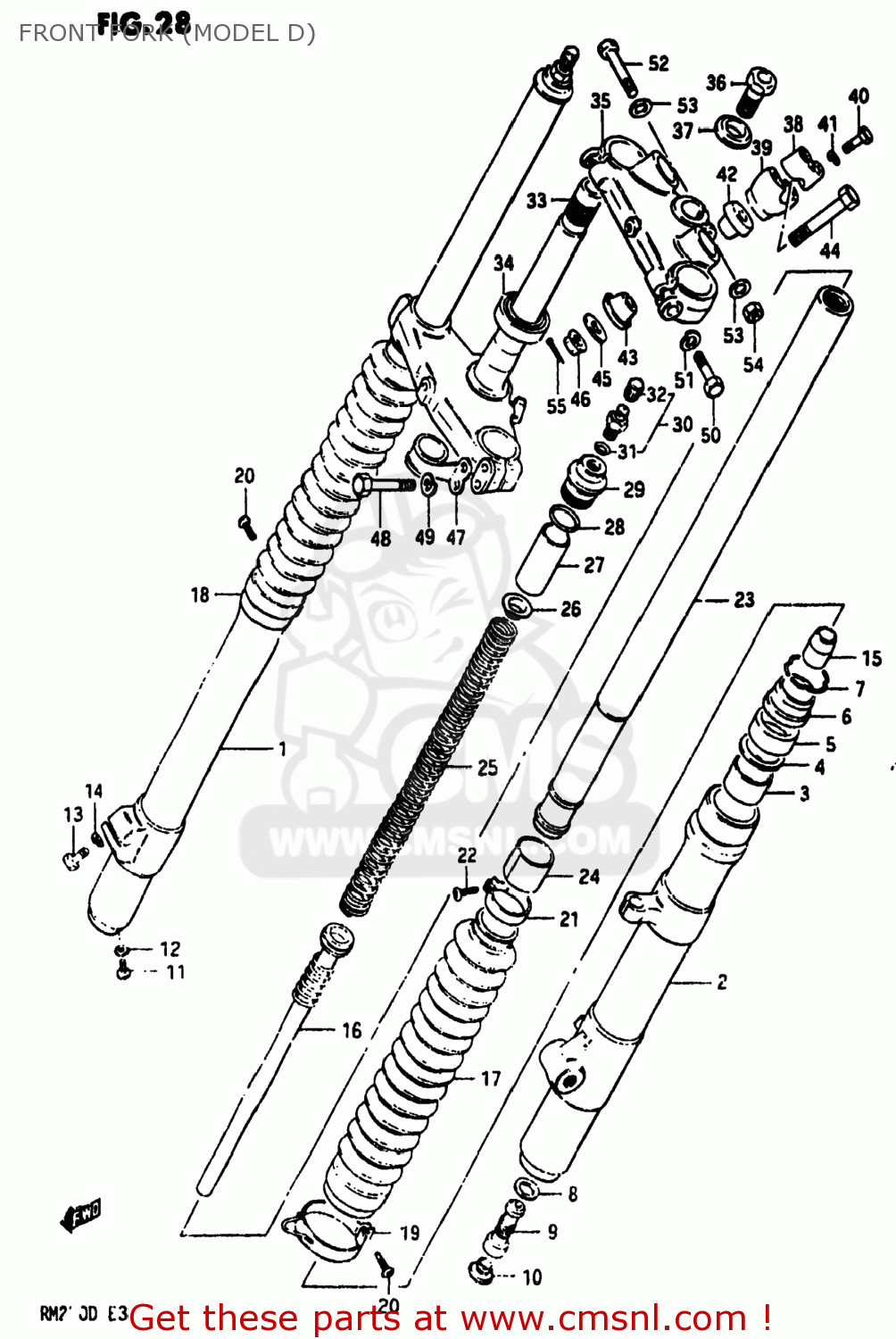

Front fork (model d) diagram RM250 1983 (D) USA (E03)
FRONT FORK (MODEL D) RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110014330163
ref: 0
DAMPER SET
€ 0.00
1
5113014330163
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114014330163
ref: 2
TUBE,OUTER,LEFT
€ 230.00
3
5116714200
ref: 3
51167-40C00
METAL,SLIDE
€ 13.50
4
5115814200
ref: 4
WASHER
€ 4.00
5
5115314330
ref: 5
SEAL,OIL
€ 11.00
6
5117314330
ref: 6
SEAL,DUST
€ 9.50
7
5115614200
ref: 7
RING,STOPPER
€ 4.50
8
5114814330
ref: 8
GASKET,FORK CYLINDER
€ 2.50
9
5177014330
ref: 9
VALVE,DF
€ 28.50
10
5118914330
ref: 10
CAP,FRONT FORK DF
€ 9.00
11
0211204068
ref: 11
02112-0406B
SCREW 4X6
€ 2.00
12
5118303010
ref: 12
GASKET,DRAIN,PLUG (NAS)
€ 3.00
13
0110708308
ref: 13
01500-08307
BOLT (8X30)
€ 2.50
14
0832131088
ref: 14
08321-01087
WASHER,LOCK,8.
€ 2.00
15
5119514330
ref: 15
PIECE,FRONT FORK OIL LOCK
€ 10.50
16
5114614330
ref: 16
CYLINDER,FRONT FORK
€ 70.00
17
5157114200
ref: 17
BOOT,FRONT FORK COVER
€ 44.00
18
5157514330
ref: 18
51574-14330
BAND,BOOT,UPPER
€ 13.50
19
5157414330
ref: 19
BAND,FRONT FORK BOOT
€ 13.50
20
0211204168
ref: 20
02112-0416A
SCREW
€ 1.00
21
5157514200
ref: 21
BAND,FRONT FORK BOOT
€ 5.50
22
0211204108
ref: 22
02112-04107
SCREW 4X10
€ 2.00
23
5111014330
ref: 23
TUBE,INNER
€ 225.50
24
5112114200
ref: 24
PISTON
€ 14.00
25
5117114330
ref: 25
SPRING,FRONT FORK
€ 0.00
26
5117214200
ref: 26
GUIDE,SPRING
€ 5.00
27
5117614260
ref: 27
SPACER,FRONT FORK SPRING
€ 4.50
28
5111714200
ref: 28
O RING
€ 2.00
29
5135114330
ref: 29
CAP,FORK INNER TUBE
€ 28.00
30
5116914140
ref: 30
VALVE,FRONT FORK AIR
€ 12.00
31
5111714210
ref: 31
09280-06005
O-RING
€ 2.50
32
5129440400
ref: 32
CAP,VALVE AIR
€ 4.00
33
5141014330291
ref: 33
STEM,STEERING
€ 0.00
34
0926530005
ref: 34
09265-30009
BEARING
€ 49.50
35
5131114330291
ref: 35
HEAD,STEERING STEM
€ 106.50
36
5135141320
ref: 36
BOLT
€ 8.50
37
5135641310
ref: 37
WASHER
€ 6.00
38
5621127200291
ref: 38
HOLDER,HANDLE UPR
€ 13.50
39
5622114330291
ref: 39
HOLDER,HANDLE LWR
€ 25.50
40
0110708358
ref: 40
01500-0835B
BOLT
€ 3.50
41
0832131088
ref: 41
08321-01087
WASHER,LOCK,8.
€ 2.00
42
5624114200
ref: 42
DAMPER,UPR
€ 32.00
43
5624214200
ref: 43
DAMPER,LWR
€ 21.50
44
5132114200
ref: 44
56321-28C00
BOLT,HANDLE HOLDER
€ 6.50
45
5135640400
ref: 45
09160-10035
WASHER,HANDLEBAR HOLDER
€ 2.00
46
0915910027
ref: 46
NUT
€ 3.00
47
5862114200
ref: 47
GUIDE,CABLE
€ 4.00
48
0110708408
ref: 48
01500-0840A
BOLT 8X40
€ 3.00
49
0832131088
ref: 49
08321-01087
WASHER,LOCK,8.
€ 2.00
50
0110710458
ref: 50
01500-1045A
BOLT
€ 2.00
51
0832131088
ref: 51
08321-01087
WASHER,LOCK,8.
€ 2.00
52
0110708508
ref: 52
01500-08507
BOLT 8X50
€ 3.00
53
0832221088
ref: 53
08322-01087
WASHER
€ 2.00
54
0831012088
ref: 54
08310-00087
NUT
€ 2.00
55
0411120208
ref: 55
04111-2020A
PIN 20X20
€ 1.50
