REAR WHEEL (MODEL D)
RM250 1983 (D) USA (E03)

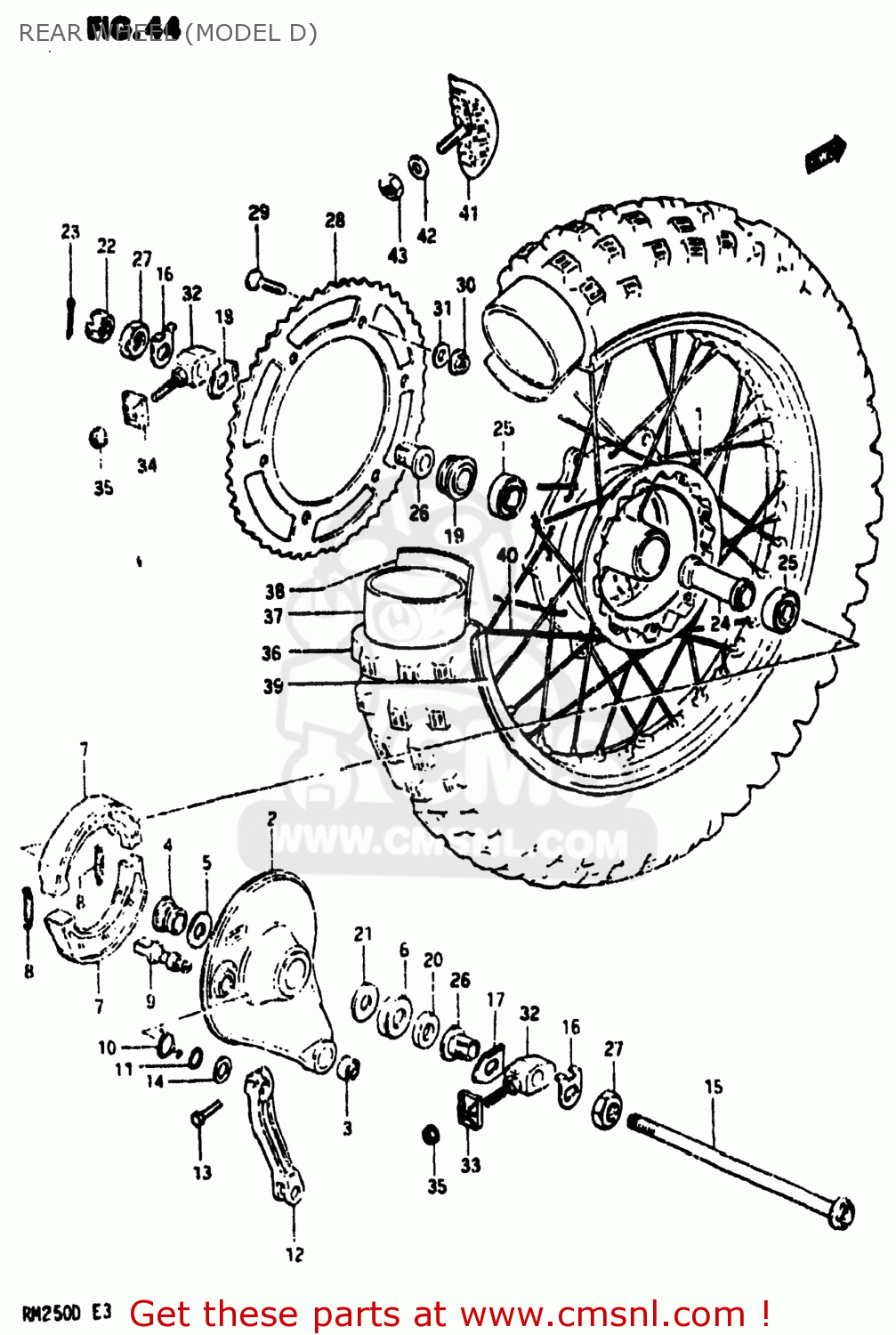

Rear wheel (model d) diagram RM250 1983 (D) USA (E03)
REAR WHEEL (MODEL D) RM250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411014110
ref: 1
64110-01B02
DRUM,REAR HUB
€ 310.50
2
6420014840
ref: 2
64200-14841
PANEL SET,REAR HUB
€ 107.00
3
6435240401
ref: 3
SPHERICAL BRNG,TORQUE LINK
€ 69.50
4
6421314100
ref: 4
SPACER,RR BRAKE ANCHOR PANEL
€ 17.00
5
0928320031
ref: 5
SEAL,OIL(20X27X5)
€ 5.00
6
6484514100
ref: 6
CVR,RR BRAKE AHR PNL DUST SEAL
€ 10.00
7
6441014100
ref: 7
64400-14820
SHOE,BRAKE (MCA)
€ 41.50
8
0944307001
ref: 8
09443-07025
SPRING(L:34)
€ 2.50
9
5444114101
ref: 9
CAM,FR BRAKE
€ 16.00
10
0944830007
ref: 10
09448-30007-XC0
SPRING
€ 19.00
11
0928012001
ref: 11
O RING(D:2.5,ID:11.4)
€ 2.50
12
6445114100
ref: 12
LEVER,RR BRAKE CAM
€ 62.50
13
0110706258
ref: 13
01500-06257
BOLT
€ 2.00
14
0916012011
ref: 14
WASHER(12.5X20X1)
€ 1.50
15
6471114201
ref: 15
AXLE,REAR
€ 150.50
16
6471214301
ref: 16
WASHER,CHAIN ADJUSTER GUIDE
€ 7.50
17
6478214200
ref: 17
PLATE,CHAIN ADJUSTER,RIGHT
€ 0.00
18
6479214200
ref: 18
PLATE,CHAIN ADJUSTER,LEFT
€ 10.50
19
6475014200
ref: 19
SPACER,RR AXLE,L
€ 16.00
20
6474114210
ref: 20
SPACER,REAR AXLE,RIGHT
€ 14.50
21
0821115281
ref: 21
09181-15223
WASHER,THRUST
€ 2.50
22
0914114004
ref: 22
NUT
€ 5.00
23
0411130308
ref: 23
04111-3030A
COTTER PIN
€ 1.50
24
6473014101
ref: 24
SPACER
€ 31.50
25
0812362027
ref: 25
BEARING
€ 14.50
26
6478114201
ref: 26
SPACER,CHAIN ADJUSTER
€ 27.00
27
0914022006
ref: 27
NUT
€ 6.00
28-1
6451140271
ref: 28-1
64511-36E00
SPROCKET,REAR
€ 99.00
28-2
6451140280
ref: 28-2
64511-28E00
SPROCKET,REAR
€ 99.00
28-3
6451140261
ref: 28-3
SPROCKET,RR(NT:51 AL)
€ 87.50
29
0912008004
ref: 29
SCREW(8X33.5)
€ 3.00
30
0831931088
ref: 30
08319-3108A
NUT
€ 2.50
31
0832211088
ref: 31
08322-01087
WASHER
€ 2.00
32
6141014131
ref: 32
ADJUSTER,CHAIN
€ 15.50
33
6142114220
ref: 33
PLATE,CHAIN ADJUSTER GEAR
€ 5.00
34
6143114200
ref: 34
PLATE,CHAIN ADJUSTER GEAR
€ 9.00
35
0831931108
ref: 35
NUT
€ 3.00
36-1
6510014340
ref: 36-1
TIRE
€ 0.00
36-2
6510014320
ref: 36-2
TIRE
€ 0.00
37
6520040430
ref: 37
TUBE,INNER
€ 0.00
38
6526115030
ref: 38
55261-11010
PROTECTOR,WHEEL,INNER
€ 3.50
39
6531114212
ref: 39
65311-14600
RIM,REAR WHEEL
€ 272.00
40
6532014221
ref: 40
65320-14112
SPOKE SET,REAR WHEEL
€ 50.00
41
6527014200
ref: 41
65270-28E00
STOPPER,BEAD
€ 38.00
42
0832211088
ref: 42
08322-01087
WASHER
€ 2.00
43
0831012088
ref: 43
08310-00087
NUT
€ 2.00
