CARBURETOR (MODEL H)
RM250 1986 (G)

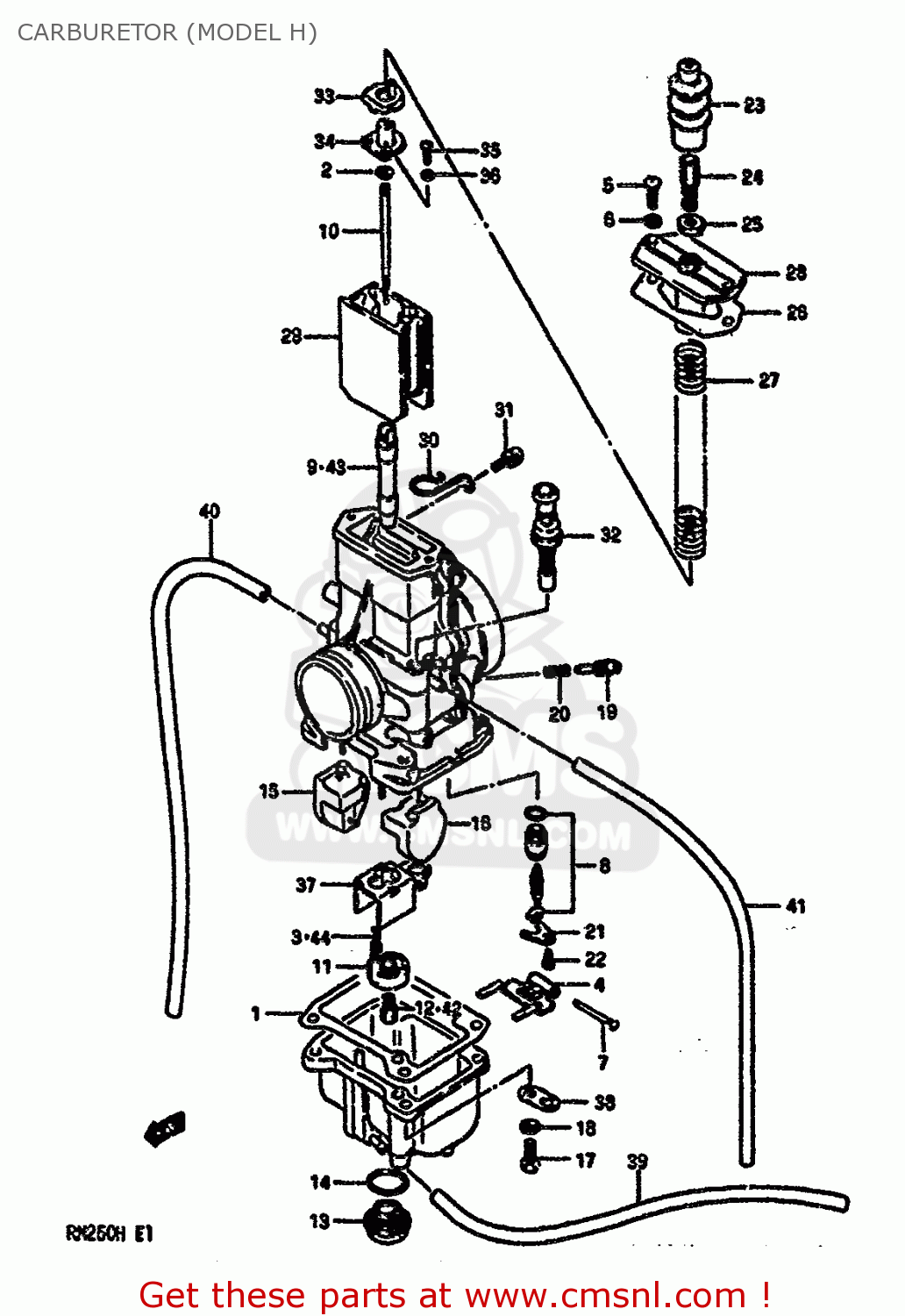

Carburetor (model h) diagram RM250 1986 (G)
CARBURETOR (MODEL H) RM250 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
0
1320000B20
ref: 0
CARBURETOR ASSEMBLY
€ 457.50
1
1325101B21
ref: 1
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
2
1339431210
ref: 2
CLIP,NEEDLE
€ 3.50
3
0949235004
ref: 3
JET,PILOT(35)
€ 7.50
4
1325340010
ref: 4
ARM,FLOAT
€ 8.00
5
0211204126
ref: 5
SCREW
€ 1.50
6
0832121046
ref: 6
LOCK WASHER
€ 2.00
7
1325492311
ref: 7
PIN,FLOAT
€ 2.00
8
1337043B00
ref: 8
VALVE ASSY,NEEDLE
€ 52.50
9
0949400558
ref: 9
JET,NEEDLE
€ 22.50
10
1338300B20
ref: 10
NEEDLE JET
€ 15.00
11
1333101B21
ref: 11
RING
€ 12.50
12
0949170011
ref: 12
JET,MAIN(350)
€ 8.50
13
1324732210
ref: 13
SCREW,GUIDE
€ 13.00
14
1324941310
ref: 14
O RING,DRAIN PLUG
€ 5.00
15
1325201B20
ref: 15
FLOAT,R
€ 22.50
16
1325201B21
ref: 16
FLOAT,L
€ 21.50
17
0211205166
ref: 17
SCREW
€ 2.00
18
0832121056
ref: 18
LOCK WASHER
€ 3.00
19
1326946010
ref: 19
SCREW,PILOT AIR
€ 8.50
20
1326801010
ref: 20
SPRING
€ 3.50
21
1337339110
ref: 21
PLATE
€ 6.50
22
0211204066
ref: 22
SCREW
€ 2.00
23
1368141510
ref: 23
CAP,CABLE ADJUSTER
€ 11.00
24
1357741612
ref: 24
ADJUSTER,CABLE
€ 8.00
25
1366116600
ref: 25
NUT
€ 5.00
26
1326614300
ref: 26
GASKET,MIXING CHAMBER (NAS)
€ 4.00
27
1357300B20
ref: 27
SPRING
€ 9.50
28
1326114300
ref: 28
CAP,CARBURETOR,TOP
€ 14.50
29
1355100B20
ref: 29
VALVE
€ 96.00
30
1369200B20
ref: 30
CLIP
€ 0.00
31
1360104148
ref: 31
SCREW
€ 2.50
32
1340014500
ref: 32
PLUNGER ASSEMBLY
€ 39.00
33
1338714230
ref: 33
SEAT,RETURN SPRING
€ 6.00
34
1339814310
ref: 34
PLATE,NEEDLE JET
€ 7.00
35
0211203106
ref: 35
SCREW
€ 1.50
36
0832121036
ref: 36
LOCK WASHER
€ 1.50
37
1325900B20
ref: 37
PLATE
€ 12.00
38
1369316600
ref: 38
PLATE
€ 8.00
39
0934304104
ref: 39
L:600-300
HOSE
€ 3.00
40
0934304104
ref: 40
L:600-400
HOSE
€ 3.00
41
0934304104
ref: 41
L:600-330
HOSE
€ 3.00
42-1
0949162005
ref: 42-1
OPT
JET,MAIN(310)
€ 10.50
42-2
0949164002
ref: 42-2
OPT
JET,MAIN(320)
€ 8.50
42-3
0949166002
ref: 42-3
OPT
JET,MAIN(330)
€ 10.50
42-4
0949168002
ref: 42-4
OPT
JET,MAIN(340)
€ 8.50
42-5
0949172011
ref: 42-5
OPT
JET,MAIN(360)
€ 8.50
42-6
0949174002
ref: 42-6
OPT
JET,MAIN (370)
€ 8.50
43-1
0949400556
ref: 43-1
OPT
JET,NEEDLE
€ 0.00
43-2
0949400557
ref: 43-2
OPT
JET,NEEDLE (R-4)
€ 18.50
43-3
0949400321
ref: 43-3
OPT
JET,NEEDLE
€ 20.50
43-4
0949400559
ref: 43-4
OPT
JET,NEEDLE
€ 14.00
43-5
0949400569
ref: 43-5
OPT
JET,NEEDLE
€ 14.00
44-1
0949230003
ref: 44-1
OPT
JET
€ 8.50
44-2
0949240004
ref: 44-2
OPT
JET,PILOT(40)
€ 17.50
44-3
0949250010
ref: 44-3
OPT
JET,PILOT(50)
€ 8.00
