ELECTRICAL (MODEL H)

RM250 1986 (G)

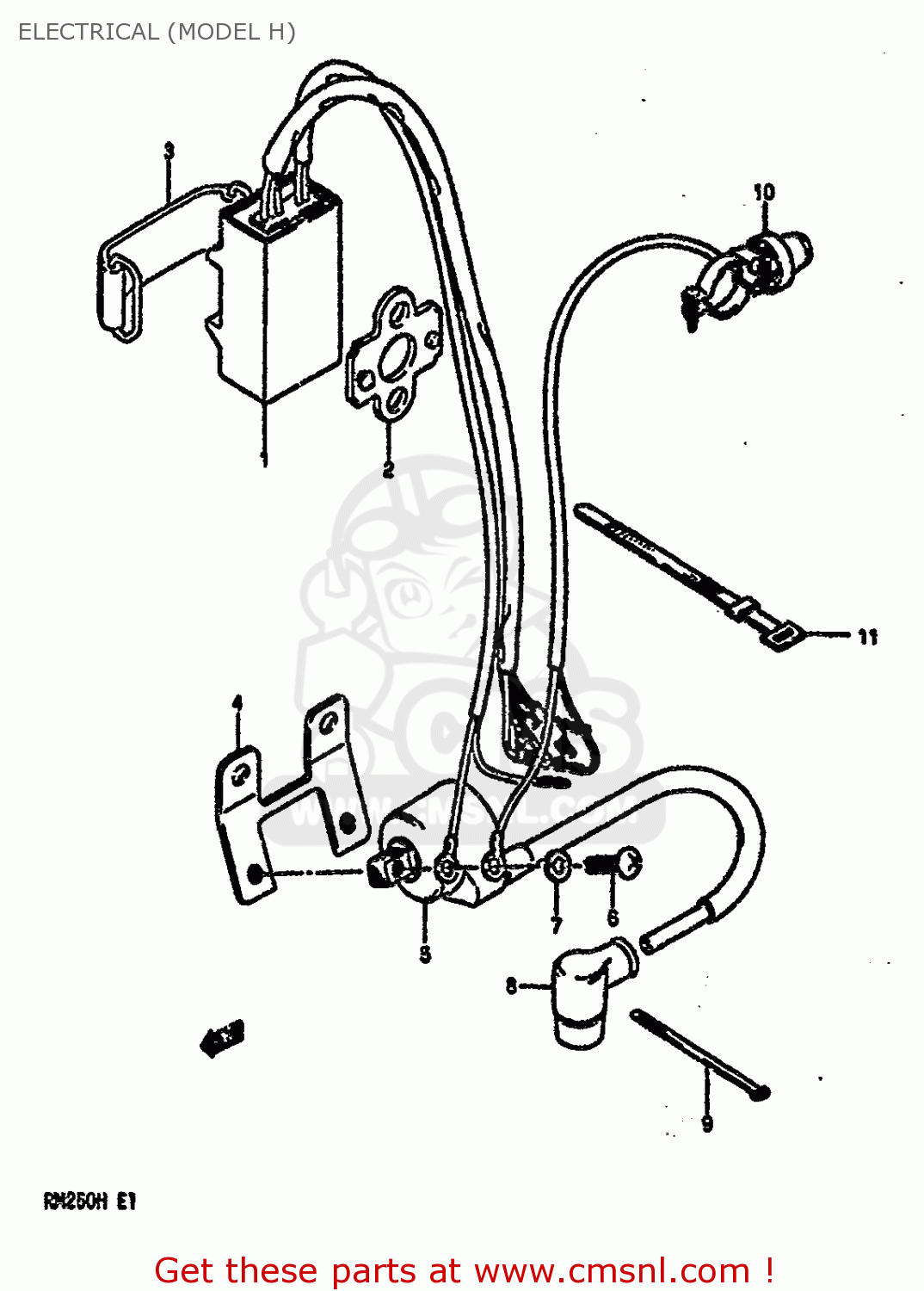

Electrical (model h) diagram RM250 1986 (G)

ELECTRICAL (MODEL H) RM250 1986 (G)

ELECTRICAL (MODEL H) RM250 1986 (G)

prices are in EUR

ref

part #

description

quantity

1

3290000B30
ref: 1

UNIT,CDI

€ 466.00

2

3294114300
ref: 2

PROTECTOR,CDI UNIT

€ 4.00

3

3294214110
ref: 3

BAND

€ 8.00

4

3341601B01
ref: 4

BRACKET,IGNITION COIL

€ 6.50

5

3341001B20
ref: 5

COIL ASSEMBLY,IGNITION

€ 123.00

6

0211206206
ref: 6

SCREW

€ 2.00

7

0832121066
ref: 7

WASHER,LOCK

€ 2.00

8

3351041111
ref: 8

CAP,SPARK PLUG

€ 23.00

9

0940709402
ref: 9

CLAMP

€ 3.00

10

3782000B00
ref: 10

SWITCH ASSEMBLY

€ 24.50

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
