RM250 1986 (G)

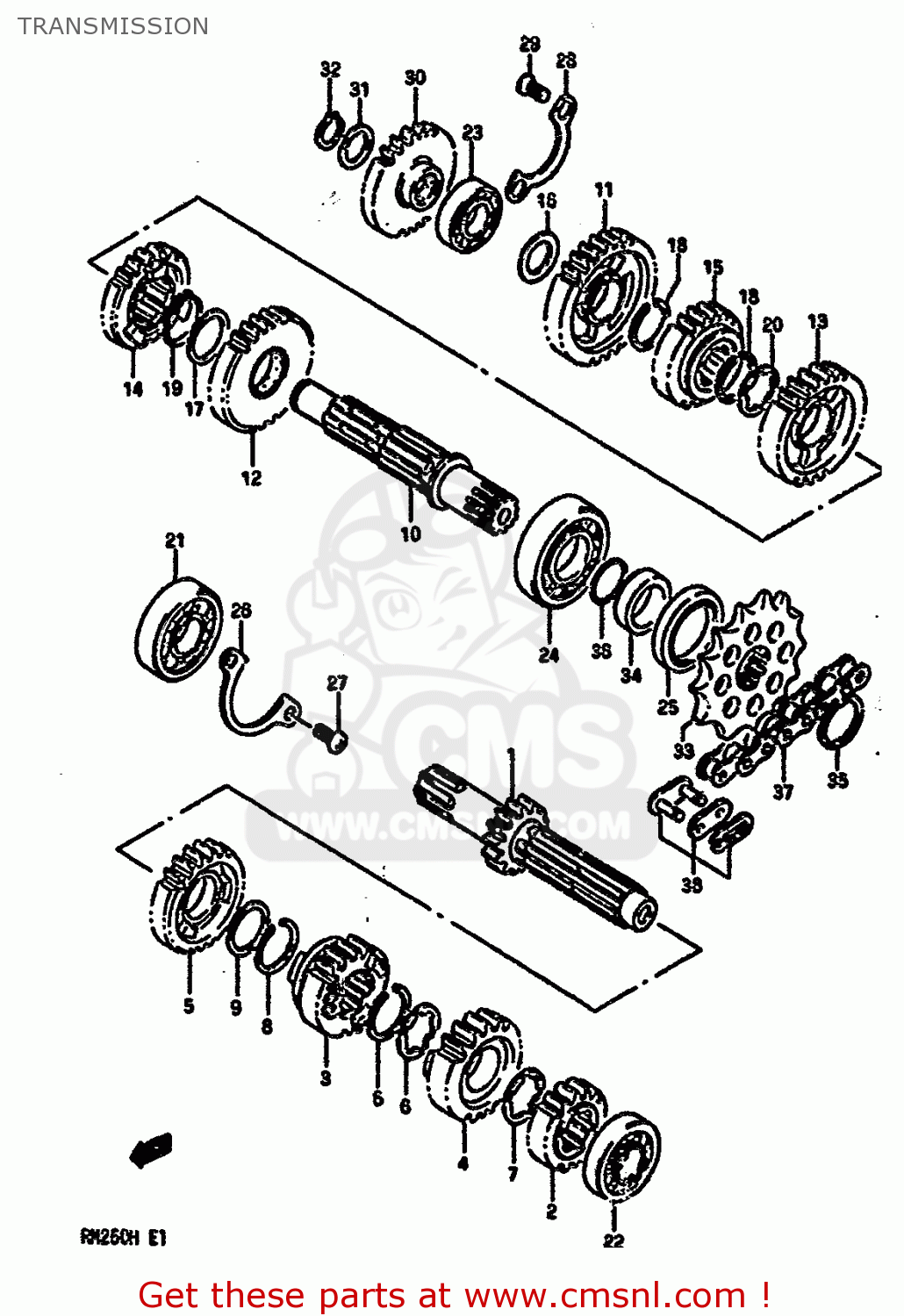

Transmission diagram RM250 1986 (G)
TRANSMISSION RM250 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1
2412100B01
ref: 1
SHAFT,COUNTER
€ 146.50
2
2422100B01
ref: 2
GEAR,2ND DRIVE
€ 69.00
3
2423100B01
ref: 3
GEAR,THIRD DRIVE
€ 82.50
4
2424100B02
ref: 4
GEAR,FOURTH DRIVE
€ 66.50
5
2425100B02
ref: 5
GEAR,5TH DRIVE
€ 83.00
6
0916722011
ref: 6
WASHER,LOCK
€ 3.00
7
0916722014
ref: 7
WASHER,LOCK
€ 4.00
8
0938022006
ref: 8
CIRCLIP
€ 3.00
9
0918122002
ref: 9
SHIM(22X28X0.5)
€ 1.00
10
2413100B00
ref: 10
SHAFT,DRIVE
€ 117.50
11
2431100B02
ref: 11
GEAR,FIRST DRIVEN
€ 45.00
12
2432000B02
ref: 12
GEAR,SECOND DRIVEN
€ 73.50
13
2433100B02
ref: 13
GEAR,THIRD DRIVEN
€ 93.50
14
2434100B01
ref: 14
GEAR,FOURTH DRIVEN
€ 86.50
15
2435100B01
ref: 15
GEAR,FIFTH DRIVEN
€ 69.50
16
0821117281
ref: 16
WASHER
€ 3.00
17
0822125325
ref: 17
SHIM
€ 2.00
18
0938022006
ref: 18
CIRCLIP
€ 3.00
19
0833131258
ref: 19
CIRCLIP,25MM
€ 2.00
20
0916722014
ref: 20
WASHER,LOCK
€ 4.00
21
0926220073
ref: 21
BEARING(20X52X15)
€ 19.00
22
0926217023
ref: 22
BEARING(17X40X12)
€ 14.00
23
0926217023
ref: 23
BEARING(17X40X12)
€ 14.00
24
0926222014
ref: 24
BEARING
€ 59.50
25
0928332003
ref: 25
SEAL,OIL(32X42X6)
€ 3.50
26
2474140300
ref: 26
PLATE,COUNTERSHAFT BEARING
€ 18.00
27
0211206128
ref: 27
SCREW 6X12
€ 2.00
28
2475140300
ref: 28
PLATE,DRIVESHAFT BEARING
€ 5.50
29
0212206128
ref: 29
SCREW
€ 3.00
30
2626041101
ref: 30
GEAR,KICK STARTER IDLE
€ 52.00
31
0821117241
ref: 31
WASHER
€ 2.00
32
0938017001
ref: 32
CIRCLIP
€ 2.00
33-1
2751114300
ref: 33-1
SPROCKET,ENGINE
€ 23.00
33-2
2751114310
ref: 33-2
OPT
SPROCKET,ENGINE
€ 23.50
33-3
2751114320
ref: 33-3
OPT
SPROCKET(NT:15)
€ 20.00
34
0918022026
ref: 34
SPACER(22X32X9.5)
€ 10.50
35
0938022006
ref: 35
CIRCLIP
€ 3.00
36
0928022003
ref: 36
O RING(D:1.7,ID:22)
€ 2.50
37
2760014310
ref: 37
CHAIN ASSEMBLY,DRIVE
€ 80.00
38-1
2762014270
ref: 38-1
JOINT ASSEMBLY,CHAIN
€ 8.50
38-2
2762014262
ref: 38-2
JOINT ASSEMBLY,CHAIN
€ 0.00
