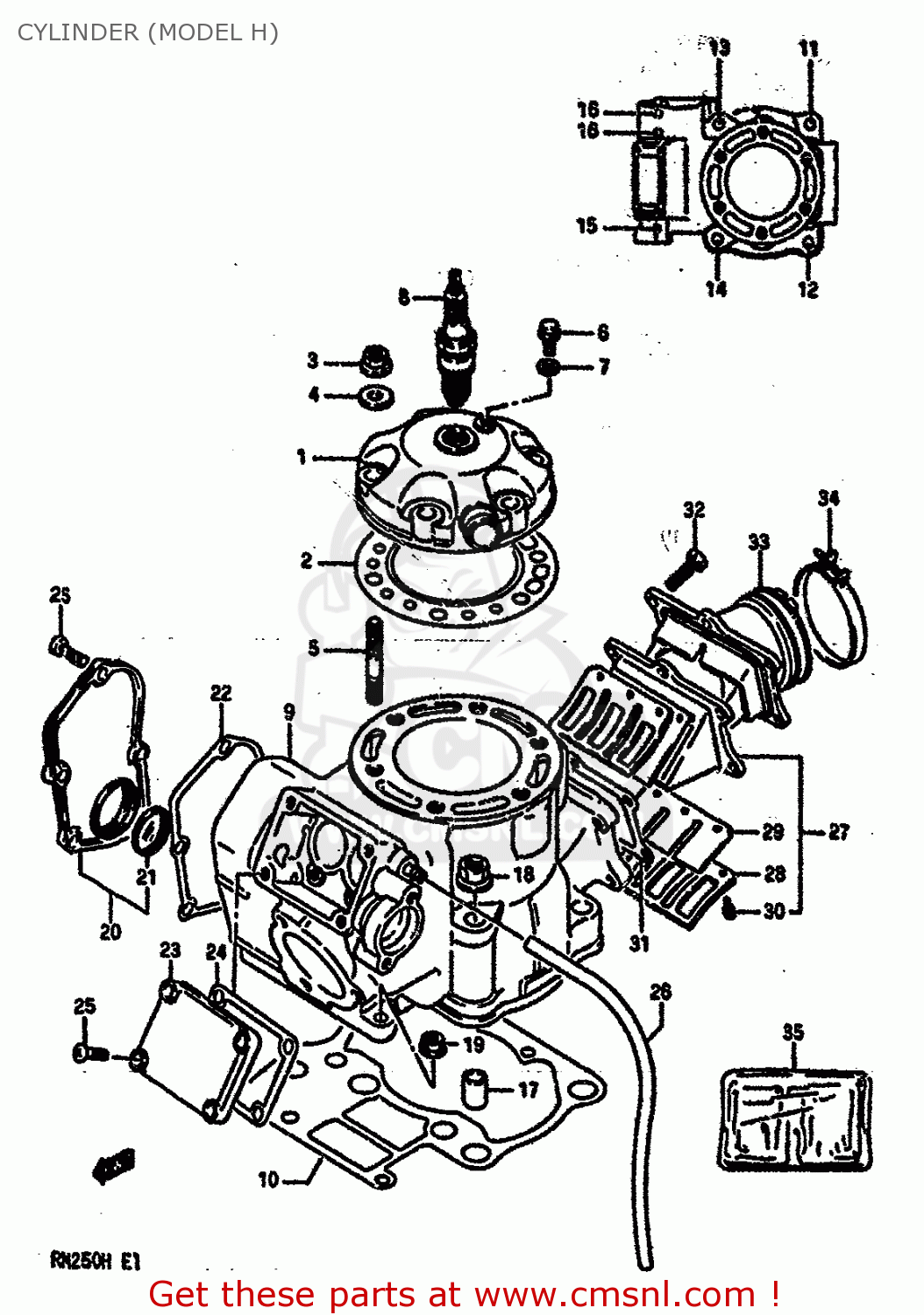

CYLINDER (MODEL H)

ref

part #

description

quantity

1

1111100B01
ref: 1

HEAD,CYLINDER

€ 98.00

2

1114100B02
ref: 2

GASKET,CYLINDER HEAD (MCA)

€ 29.50

3

0831616088
ref: 3

NUT

€ 2.50

4

0916008095
ref: 4

WASHER

€ 2.00

5

0910808142
ref: 5

BOLT,STUD

€ 3.00

6

0936006007
ref: 6

UNION

€ 3.00

7

0916806004
ref: 7

GASKET(6.2X11X1).2 (NAS)

€ 1.50

8-1

0948200208
ref: 8-1

PLUG,SPARK(NGK B-8EN)

€ 16.00

8-2

0948200114
ref: 8-2
E4

SPARK PLUG (NGK,BR8EV)

€ 81.50

9

1120000810
ref: 9

CYLINDER

€ 451.50

10

1124100B20
ref: 10

GASKET,CYLINDER (MCA)

€ 13.50

11

0142110408
ref: 11

STUD BOLT (L:40)

€ 2.00

12

0142110508
ref: 12

STUD BOLT (10X50)

€ 2.50

13

0910810093
ref: 13

STUD

€ 4.50

14

0142110908
ref: 14

STUD BOLT (10X90)

€ 3.50

15

0142106258
ref: 15

STUD 6X25

€ 2.50

16

0142106358
ref: 16

STUD BOLT

€ 2.00

17

0920613001
ref: 17

PIN

€ 2.50

18

0831616108
ref: 18

NUT

€ 2.00

19

0915906017
ref: 19

NUT

€ 2.50

20

1123000B20
ref: 20

COVER COMP,CYLINDER

€ 20.50

21

1123201B00
ref: 21

LENS,CYLINDER COVER

€ 16.00

22

1123300B20
ref: 22

GASKET,CYLINDER COVER (MCA)

€ 6.00

23

1124800B20
ref: 23

COVER,CYLINDER NO.2

€ 16.50

24

1123800B20
ref: 24

GASKET,CYLINDER COVER NO.2 (MCA)

€ 4.00

25

0211206208
ref: 25

SCREW

€ 2.00

26

0934304104
ref: 26
L:600-250

HOSE

€ 3.00

27

1315000B20
ref: 27

VALVE ASSEMBLY,REED

€ 102.50

28

1315200B20
ref: 28

STOPPER,REED VALVE

€ 5.00

29

1315300B20
ref: 29

VALVE,REED

€ 11.50

30

1315401B20
ref: 30

SCREW,REED VALVE

€ 2.00

31

1315600B20
ref: 31

GASKET,REED VALVE (MCA)

€ 4.00

32

0110706207
ref: 32

BOLT

€ 2.00

33

1311000B20
ref: 33

PIPE,INTAKE

€ 45.50

34

0940256208
ref: 34

CLAMP

€ 3.50

35

1140000870
ref: 35
OPT

GASKET SET (MCA)

€ 84.00
