FRAME-SEAT (MODEL H)

RM250 1986 (G)

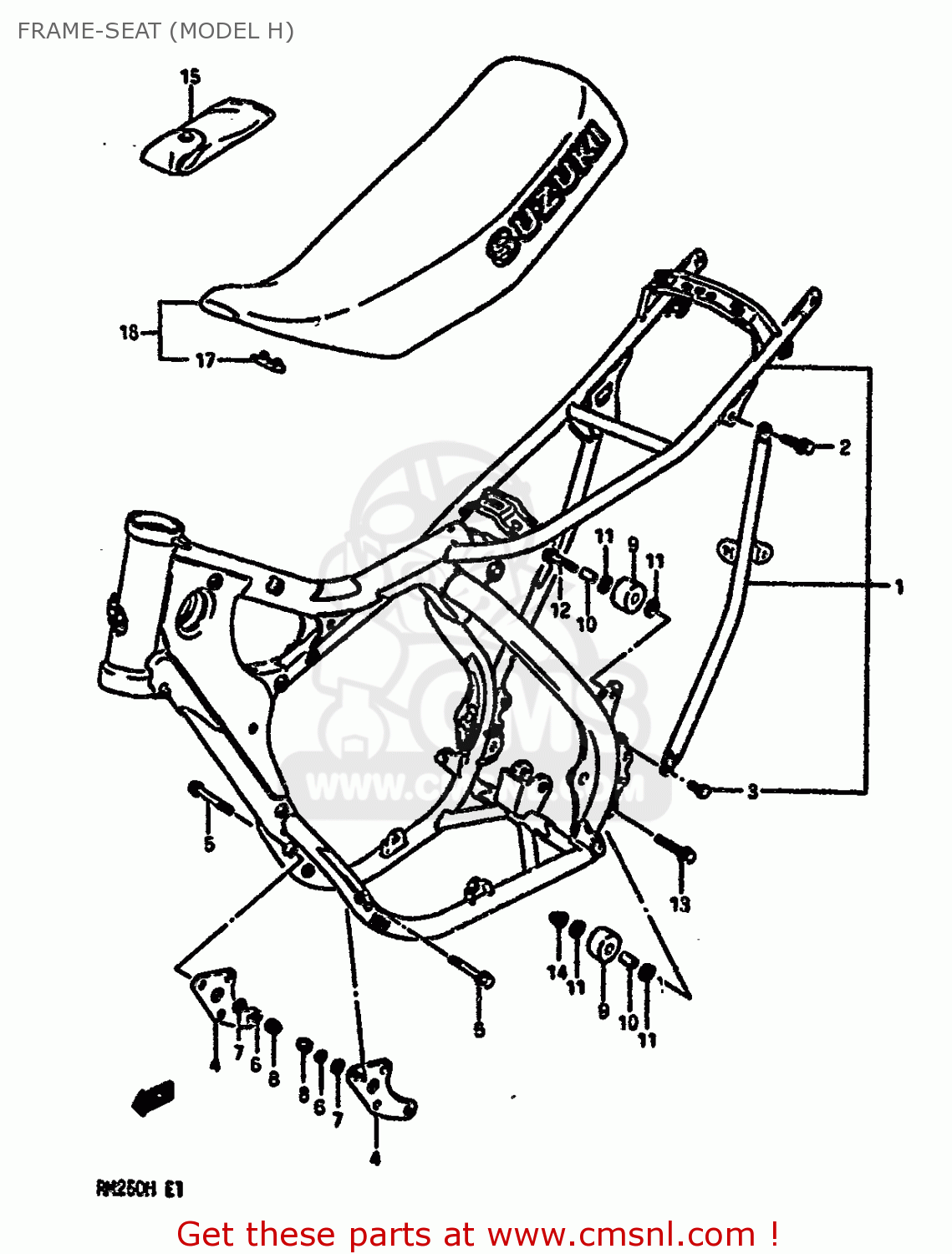

Frame-seat (model h) diagram RM250 1986 (G)

FRAME-SEAT (MODEL H) RM250 1986 (G)

FRAME-SEAT (MODEL H) RM250 1986 (G)

prices are in EUR

ref

part #

description

quantity

1

411000081019F
ref: 1

FRAME

€ 945.00

2

0910308055
ref: 2

BOLT

€ 4.00

3

0910008267
ref: 3

BOLT

€ 4.00

4

4199100B20
ref: 4

PLATE,ENGINE MOUNTING

€ 30.50

5

0910308027
ref: 5

BOLT 8X55

€ 3.50

6

0832121088
ref: 6

LOCK WASHER

€ 2.00

7

0832211088
ref: 7

WASHER

€ 2.00

8

0831921088
ref: 8

NUT

€ 1.50

9

4391101B10
ref: 9

ROLLER,CHAIN CONTROL

€ 14.50

10

0918008136
ref: 10

SPACER (8.6X13.8X28)

€ 9.00

11

0821108221
ref: 11

WASHER

€ 2.50

12

0910308063
ref: 12

BOLT(8X75)

€ 79.50

13

0910308081
ref: 13

BOLT(8X50)

€ 3.50

14

0831931087
ref: 14

NUT

€ 2.50

15

0980000320
ref: 15

TOOL SET

€ 0.00

16

4510000B114UZ
ref: 16

SEAT SET

€ 262.50

17

0932108009
ref: 17

CUSHION

€ 4.00
