REAR BRAKE
RM250 1986 (G)

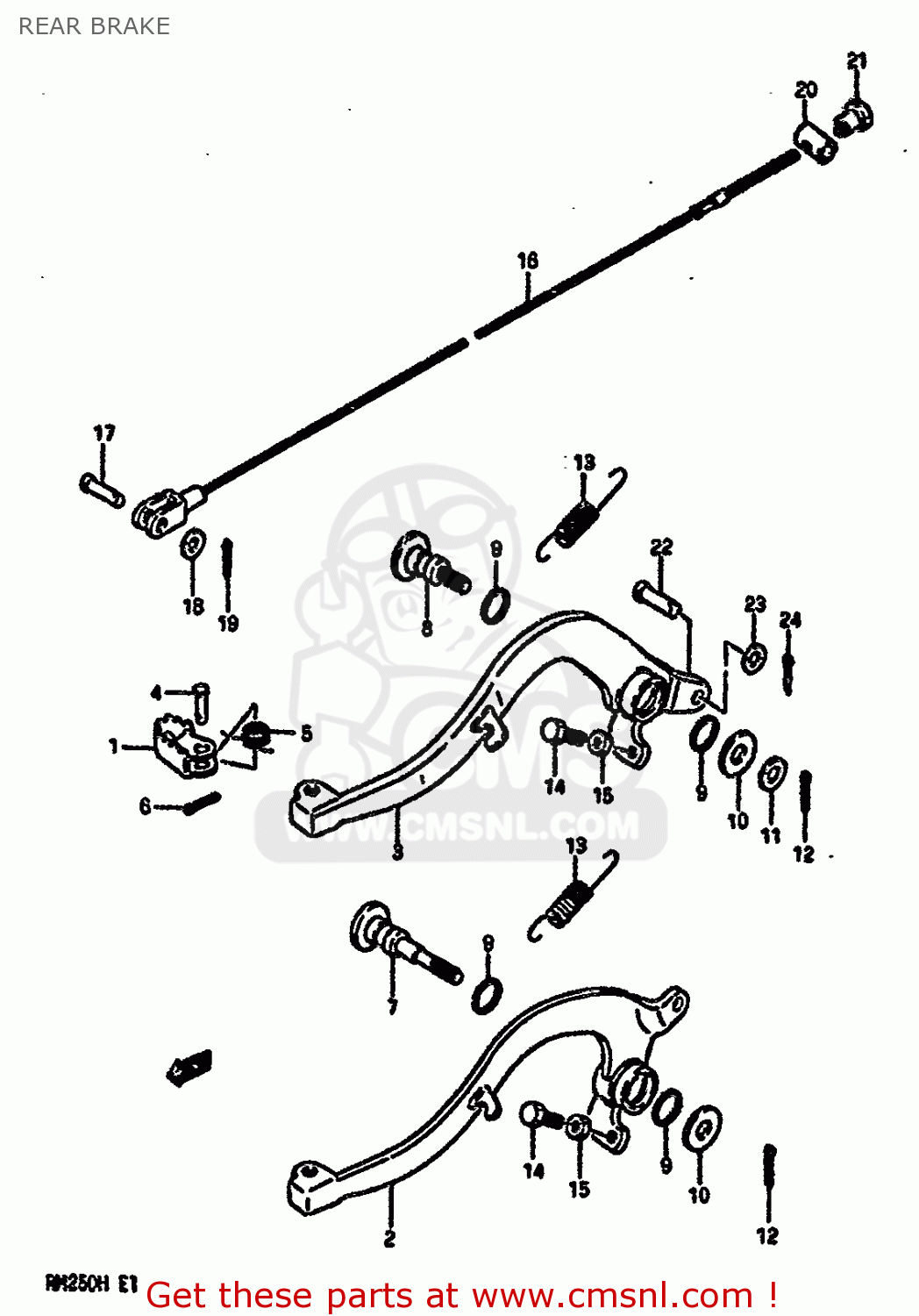

Rear brake diagram RM250 1986 (G)
REAR BRAKE RM250 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311014130
ref: 1-1
MODEL G
PEDAL,BRAKE
€ 6.00
1-2
4311001B10
ref: 1-2
MODEL H
PEDAL,BRAKE
€ 10.00
2
4312000B00
ref: 2
MODEL G
ARM COMP,BRAKE PEDAL
€ 43.50
3
4312000B20
ref: 3
MODEL H
ARM,BRAKE PEDAL
€ 36.00
4-1
0920006038
ref: 4-1
MODEL G
PIN
€ 2.00
4-2
0920006060
ref: 4-2
MODEL H
PIN
€ 5.50
5-1
0944411004
ref: 5-1
MODEL G
SPRING
€ 3.00
5-2
0944411005
ref: 5-2
MODEL H
SPRING
€ 3.00
6
0411120158
ref: 6
PIN
€ 1.50
7
4314201B00
ref: 7
MODEL G
SHAFT,BRAKE PEDAL
€ 14.50
8
4314200B20
ref: 8
MODEL H
SHAFT,BRAKE PEDAL
€ 15.50
9
0928015001
ref: 9
O-RING,BOSS
€ 2.00
10
0821110261
ref: 10
WASHER
€ 2.50
11
0832211088
ref: 11
MODEL H
WASHER
€ 2.00
12
0411120208
ref: 12
PIN 20X20
€ 1.50
13-1
0944313020
ref: 13-1
MODEL G
SPRING BRAKE PEDAL
€ 3.50
13-2
0944313023
ref: 13-2
MODEL H
SPRING BRAKE PEDAL
€ 3.50
14-1
0110706205
ref: 14-1
MODEL G
BOLT
€ 2.00
14-2
0110706207
ref: 14-2
MODEL H
BOLT
€ 2.00
15-1
0831011065
ref: 15-1
MODEL G
NUT
€ 2.00
15-2
0831011068
ref: 15-2
MODEL H
NUT
€ 2.50
16
5851001B00
ref: 16
MODEL G
CABLE,RR BRAKE
€ 16.00
17
0920005001
ref: 17
MODEL G
PIN(L:17.5)
€ 1.50
18
0832221067
ref: 18
MODEL G
WASHER
€ 2.00
19
0411120208
ref: 19
MODEL G
PIN 20X20
€ 1.50
20
0920913004
ref: 20
MODEL G
PIN
€ 7.50
21
0915006009
ref: 21
MODEL G
NUT (6MM)
€ 3.50
22
0920008048
ref: 22
MODEL H
PIN(8X20)
€ 3.00
23
0916008074
ref: 23
MODEL H
WASHER(8.5X13X1.6)
€ 2.50
24
0411120158
ref: 24
MODEL H
PIN
€ 1.50
