FRONT CALIPER (MODEL H)

RM250 1986 (G)

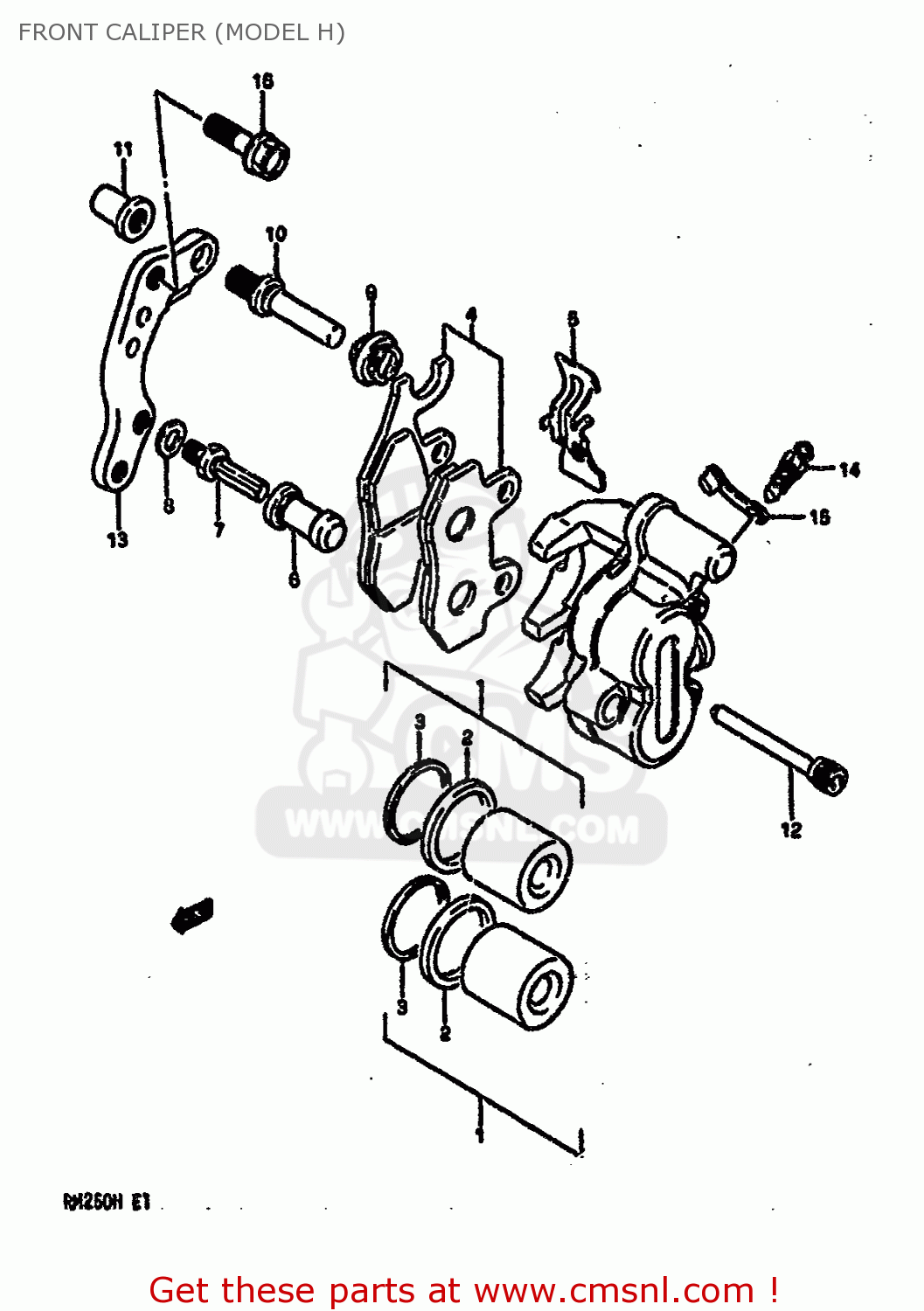

Front caliper (model h) diagram RM250 1986 (G)

FRONT CALIPER (MODEL H) RM250 1986 (G)

FRONT CALIPER (MODEL H) RM250 1986 (G)

prices are in EUR

ref

part #

description

quantity

0

5930000B21
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 384.00

1

5930000810
ref: 1

CALIPER ASSEMBLY,FRONT,LEFT

€ 66.50

2

5910700B20
ref: 2

SEAL,PISTON

€ 13.00

3

5910800B20
ref: 3

SEAL,DUST

€ 10.50

4

5930000821
ref: 4

CALIPER ASSEMBLY,FRONT,LEFT

€ 137.50

5

5931500B20
ref: 5

SPRING

€ 8.00

6

5938613A00
ref: 6

BOOT

€ 6.50

7

5938213A00
ref: 7

BOLT,PIN

€ 6.50

8

5931413A00
ref: 8

WASHER,WAVE

€ 2.00

9

5930314500
ref: 9

BOOT

€ 5.50

10

5938700B20
ref: 10

PIN,SLIDE

€ 12.50

11

5930800B20
ref: 11

NUT

€ 0.00

12

5934500B20
ref: 12

PIN,HOLDER

€ 9.50

13

5935100B20
ref: 13

BRACKET

€ 60.50

14

5912101A00
ref: 14

BLEEDER

€ 8.50

15

5912201A00
ref: 15

CAP,BLEEDER

€ 4.50

16

0910308226
ref: 16

BOLT(8X24)

€ 2.00
