EXHAUST VALVE (MODEL H)
RM250 1986 (G)

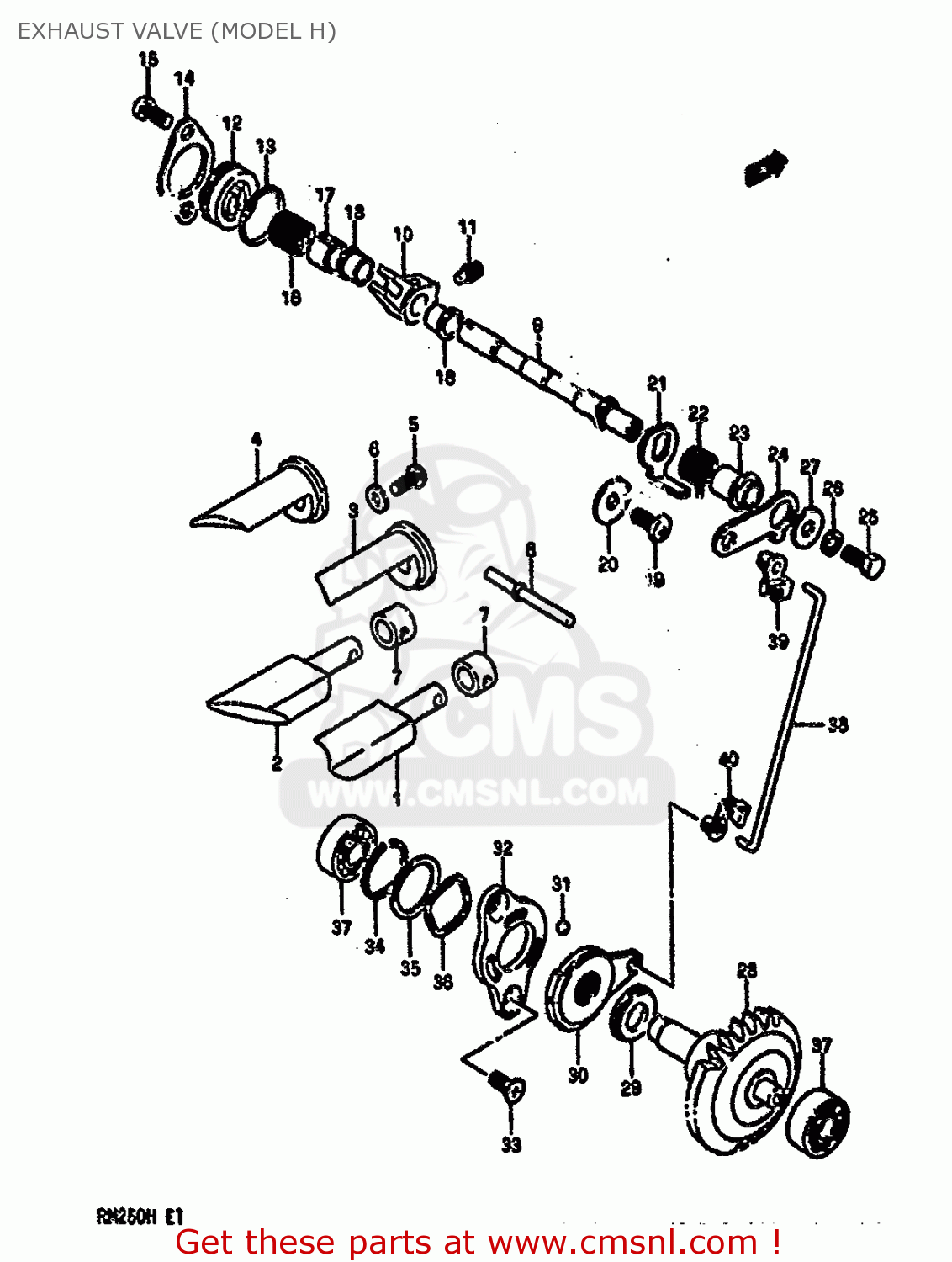

Exhaust valve (model h) diagram RM250 1986 (G)
EXHAUST VALVE (MODEL H) RM250 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1
1125400B22
ref: 1
VALVE,EXHAUST
€ 123.00
2
1125500B22
ref: 2
VALVE,EXHAUST
€ 122.50
3
1126100B22
ref: 3
GUIDE,EXHAUST VALVE
€ 122.00
4
1126200B22
ref: 4
GUIDE,EXHAUST VALVE
€ 96.50
5
0211205128
ref: 5
SCREW
€ 2.50
6
0832221057
ref: 6
WASHER
€ 2.50
7
1126300B20
ref: 7
HOLDER,EXHAUST VALVE
€ 14.00
8
1125301B30
ref: 8
PIN,EXHAUST VALVE. 43.6MM
€ 20.50
9
1125900B21
ref: 9
SHAFT,EXHAUST VALVE
€ 52.00
10
1126400B21
ref: 10
ARM,EXHAUST VALVE SHAFT
€ 17.00
11
0913406011
ref: 11
SCREW
€ 4.50
12
1125801B00
ref: 12
CAP,EXHAUST VALVE
€ 52.00
13
0928023002
ref: 13
O RING(D:1.9,ID:22.6)
€ 2.50
14
1126500B21
ref: 14
RETAINER,EXHAUST VALVE
€ 2.50
15
0211205128
ref: 15
SCREW
€ 2.50
16
0944416003
ref: 16
SPRING
€ 7.50
17
1126900B20
ref: 17
SPACER,EXHAUST VALVE SPRING
€ 19.00
18
0930108008
ref: 18
BUSH
€ 15.50
19
0211206128
ref: 19
SCREW 6X12
€ 2.00
20
0821206201
ref: 20
WASHER
€ 1.50
21
1126700B20
ref: 21
LEVER,EXHAUST VALVE NO
€ 5.50
22
0944415008
ref: 22
SPRING
€ 6.00
23
1126801B00
ref: 23
SPACER,EXHAUST VALVE
€ 8.50
24
1126600B20
ref: 24
LEVER,EXHAUST VALVE NO
€ 3.50
25
0110405126
ref: 25
BOLT
€ 1.50
26
0832121056
ref: 26
LOCK WASHER
€ 3.00
27
0916005017
ref: 27
WASHER (5.5X16X1.2)
€ 2.50
28
1267000B21
ref: 28
GOVERNOR ASSEMBLY,EXHAUST
€ 93.50
29
0926310002
ref: 29
BEARING(10X22X2.8)
€ 8.50
30
1268001820
ref: 30
ACTUATOR,EXHAUST VALVE
€ 47.50
31
0611106003
ref: 31
BALL
€ 1.50
32
1268200B20
ref: 32
STARTER,EXHAUST VALVE ACTUATOR
€ 25.00
33
0912005003
ref: 33
SCREW(5X10)
€ 2.00
34
0938019003
ref: 34
CIRCLIP
€ 2.50
35
0918119004
ref: 35
SHIM(19.1X25X0.3)
€ 4.00
36
0916419001
ref: 36
WASHER
€ 7.00
37
0926208005
ref: 37
BEARING(8X22X7)
€ 12.50
38
1268500B20
ref: 38
ROD,EXHAUST VALVE
€ 4.00
39
1268601B00
ref: 39
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
40
1268701B00
ref: 40
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
