CRANKCASE COVER-WATER PUMP (MODEL G)
RM250 1986 (G)

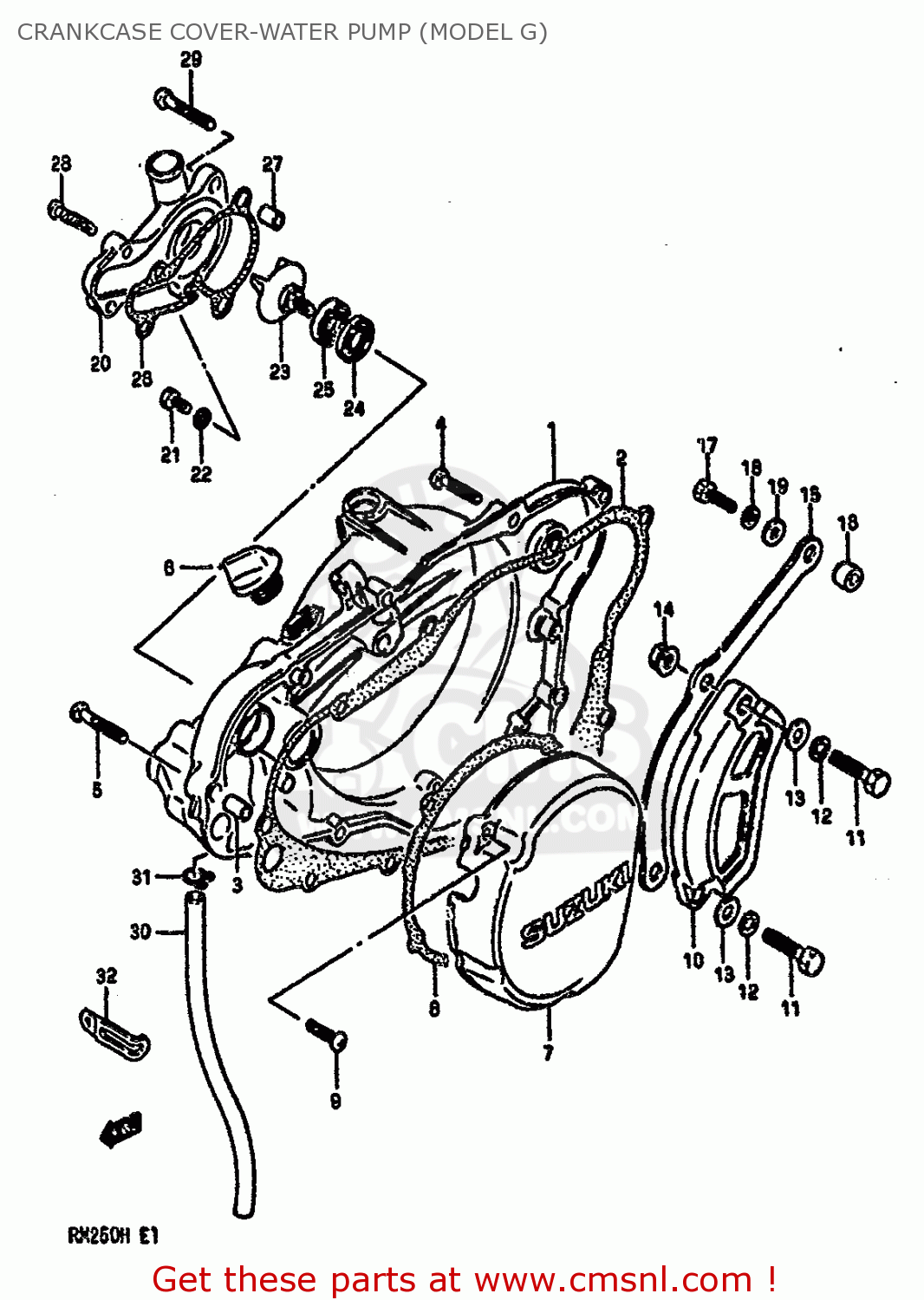

Crankcase cover-water pump (model g) diagram RM250 1986 (G)
CRANKCASE COVER-WATER PUMP (MODEL G) RM250 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1
1134000810
ref: 1
COVER SET,CLUTCH
€ 293.00
2
1148200B00
ref: 2
GASKET,CRANKCASE (MCA)
€ 18.50
3
0421109129
ref: 3
PIN
€ 2.00
4
0211206258
ref: 4
SCREW
€ 2.00
5
0211206358
ref: 5
SCREW (6X35)
€ 2.50
6
0920020810
ref: 6
PLUG SET
€ 8.00
7
1135100B00
ref: 7
COVER,MAGNETO
€ 121.00
8
1148314301
ref: 8
GASKET,MAGNETO COVER (MCA)
€ 17.50
9
0211205168
ref: 9
SCREW
€ 2.50
10
1136000B00
ref: 10
COVER,SPROCKET
€ 19.50
11
0110708308
ref: 11
BOLT (8X30)
€ 2.50
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0832211088
ref: 13
WASHER
€ 2.00
14
0831616088
ref: 14
NUT
€ 2.50
15-1
2764100B01
ref: 15-1
FOR NT:14
PLATE,FR CHAIN GUIDE
€ 11.50
15-2
2764100B10
ref: 15-2
OPT FOR NT:13
PLATE,FRONT CHAIN GUIDE
€ 8.50
15-3
2764100B20
ref: 15-3
OPT FOR NT:15
PLATE,FRONT CHAIN GUIDE
€ 10.00
16
0918006141
ref: 16
SPACER (6.5X12X8)
€ 4.00
17
0110706205
ref: 17
BOLT
€ 2.00
18
0832121064
ref: 18
WASHER,LOCK
€ 2.00
19
0832221064
ref: 19
WASHER
€ 2.00
20
1741000B01
ref: 20
CASE COMP,WATER PUMP
€ 93.00
21
1741500B00
ref: 21
BOLT,BLEEDER
€ 3.00
22
1741300B00
ref: 22
GASKET (NAS)
€ 1.50
23
1749100B03
ref: 23
IMPELLER,WATER PUMP
€ 19.50
24
0928212007
ref: 24
SEAL,OIL(12X24X7)
€ 7.00
25
0928912004
ref: 25
SEAL,OIL(12X24X6.4)
€ 9.00
26
1743100B00
ref: 26
GASKET,WATER PUMP CASE (MCA)
€ 7.50
27
0421109129
ref: 27
PIN
€ 2.00
28
0211206258
ref: 28
SCREW
€ 2.00
29
0211206308
ref: 29
SCREW 6X30
€ 2.50
30
0934304104
ref: 30
L:600-250
HOSE
€ 3.00
31
0940108401
ref: 31
CLIP
€ 1.50
32
0940406422
ref: 32
CLAMP
€ 2.50
