REAR SWINGING ARM (MODEL G)
RM250 1986 (G)

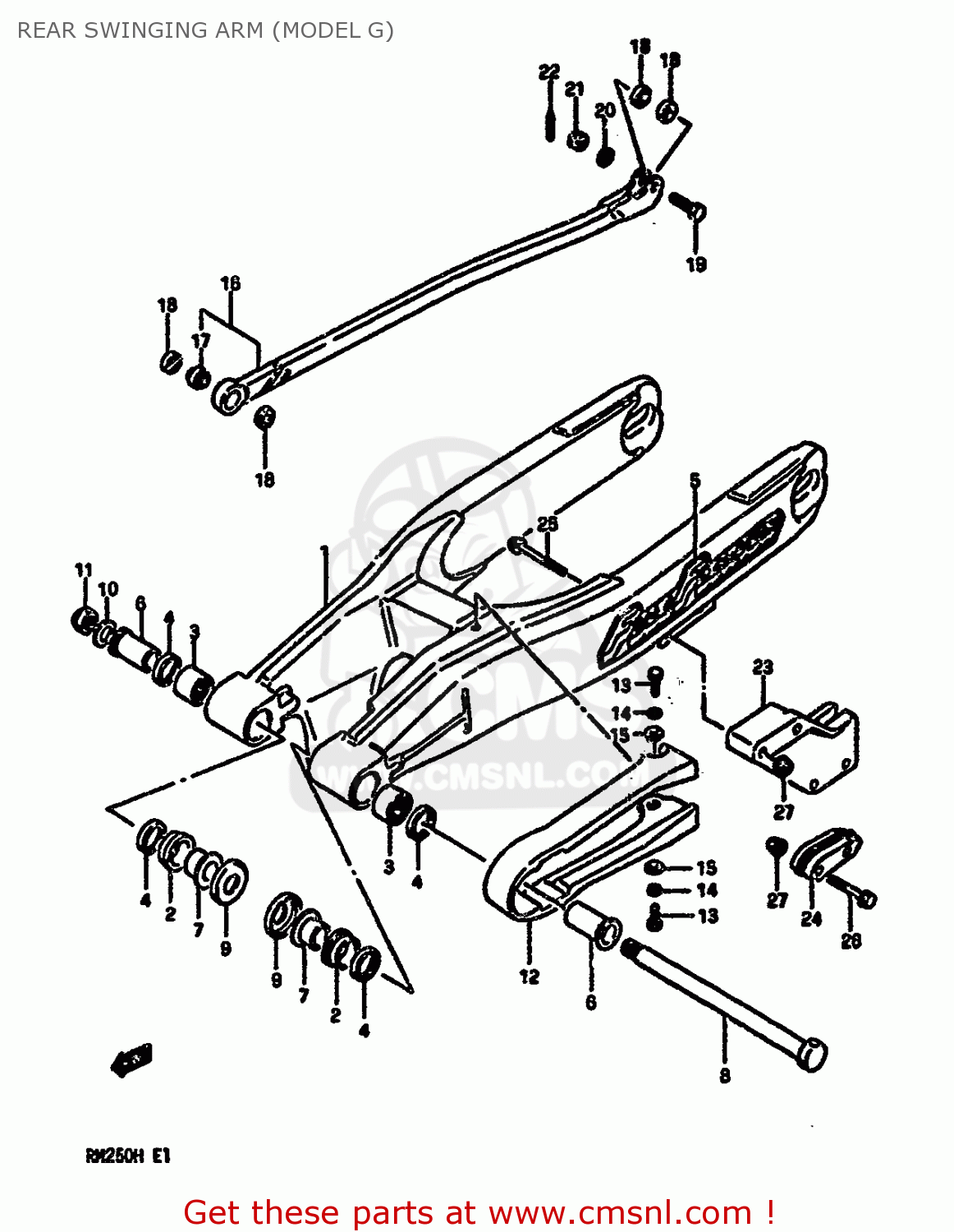

Rear swinging arm (model g) diagram RM250 1986 (G)
REAR SWINGING ARM (MODEL G) RM250 1986 (G)
×
prices are in EUR
ref
part #
description
quantity
1
6100000B10
ref: 1
SWING ARM ASSEMBLY,REAR
€ 0.00
2
6126140402
ref: 2
BUSHING,REAR SWING ARM PIVOT
€ 26.00
3
0926320041
ref: 3
BEARING(20X27X20)
€ 15.00
4
0928520005
ref: 4
OIL SEAL
€ 5.00
5
6838119A1097J
ref: 5
LABEL (FRONT CARRIER WARNING)
€ 6.50
6
6125114600
ref: 6
SPACER,RR SWINGING ARM PIVOT
€ 22.50
7
6125214100
ref: 7
SPACER,RR SWGARM PIVOT INNER
€ 12.50
8
6121100B00
ref: 8
SHAFT,RR SWINGINGARM PIVOT
€ 30.00
9
6126240400
ref: 9
COVER,RR SWGARM DUST SEAL
€ 4.00
10
0916014009
ref: 10
WASHER(14.5X29X2.3)
€ 3.50
11
0915914019
ref: 11
NUT
€ 8.50
12
6127301B00
ref: 12
BUFFER,CHAIN TOUCH DEFLECTOR
€ 50.50
13
0110706127
ref: 13
BOLT
€ 2.00
14
0832121067
ref: 14
WASHER,LOCK
€ 2.50
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
€ 1.50
16
6430000B00
ref: 16
TORQUE LINK ASSEMBLY,REAR
€ 104.50
17
6435240411
ref: 17
SPHERICAL BEARING,TORQUE
€ 69.50
18
6433940410
ref: 18
6433940410
19
0910108014
ref: 19
BOLT 8X29.5
€ 1.50
20
0832211088
ref: 20
WASHER
€ 2.00
21
0831441088
ref: 21
NUT 8MM
€ 2.50
22
0411120208
ref: 22
PIN 20X20
€ 1.50
23
6134101B00
ref: 23
GUIDE,CHAIN
€ 32.50
24
6134801B00
ref: 24
DEFENSE,CHAIN GUIDE
€ 18.00
25
0151706558
ref: 25
BOLT
€ 2.50
26
0151706458
ref: 26
BOLT,UNDER
€ 2.50
27
0831931068
ref: 27
NUT
€ 2.50
