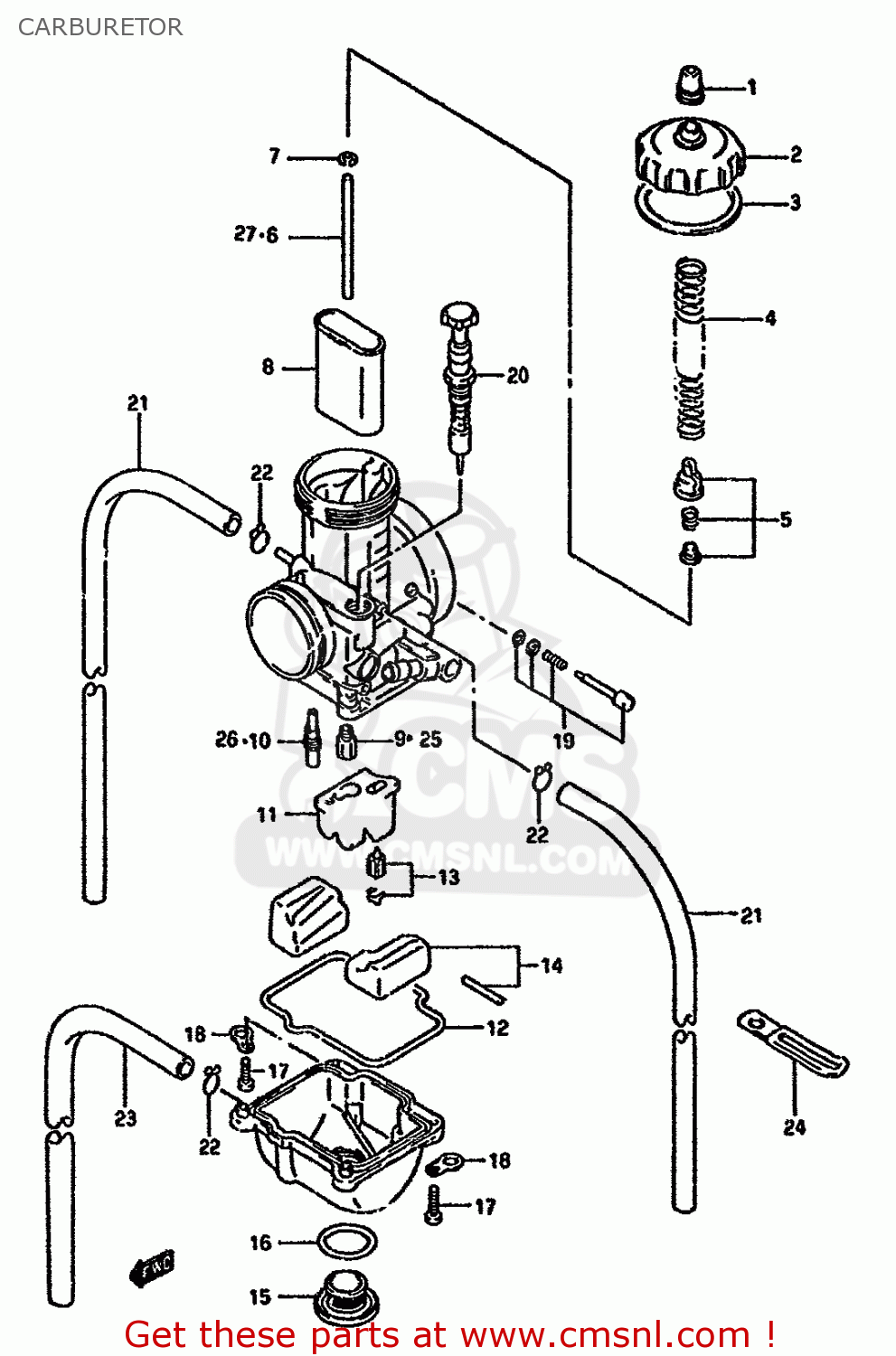

CARBURETOR

ref

part #

description

quantity

0

1320029E10
ref: 0
MODEL P

CARBURETOR ASSY

€ 529.00

0

1320029E11
ref: 0
MODEL R

CARBURETOR ASSY

€ 529.00

1

1368128E00
ref: 1

CAP,CARBURETOR

€ 7.00

2

1326128E00
ref: 2

CAP,TOP

€ 43.50

3

1326628E00
ref: 3

GASKET,TOP CAP

€ 7.50

4

1357328E00
ref: 4

SPRING

€ 9.00

5

1358128E00
ref: 5

HOLDER SET,CABLE

€ 17.00

6-1

1338328E40
ref: 6-1
MODEL P

NEEDLE(R1471MS)

€ 11.00

6-2

1338329E40
ref: 6-2
MODEL R

NEEDLE,JET(R1472M 1L)

€ 13.00

7

1339428E00
ref: 7

CLIP,NEEDLE

€ 3.50

8

1355129E10
ref: 8

VALVE,PISTON(CA:5.0)

€ 100.50

9

0949131012
ref: 9

JET,MAIN(155)

€ 13.00

10

0949255017
ref: 10

JET,SLOW(55)

€ 11.50

11

1333128E00
ref: 11

HOLDER

€ 8.50

12

1369628E00
ref: 12

GASKET,FLOAT CHAMBER

€ 11.00

13

1337028E00
ref: 13

VALVE SET,FLOAT

€ 36.50

14

1324028E00
ref: 14

FLOAT SET

€ 49.00

15

1324728E00
ref: 15

BOLT,DRAIN

€ 15.00

16

1324628E00
ref: 16

O RING

€ 3.50

17

0211234166
ref: 17

SCREW

€ 3.00

18

1369328E00
ref: 18

PLATE

€ 4.50

19

1328028E00
ref: 19

SCREW SET,AIR

€ 15.00

20

1341029E10
ref: 20

PLUNGER ASSY

€ 44.50

21

1368628E00
ref: 21

HOSE (4X7X440)

€ 7.50

22

0940106101
ref: 22

CLIP

€ 2.50

23

0935135653300
ref: 23

HOSE (3.5X6.5X300)

€ 5.50

24

0940406402
ref: 24

CLAMP

€ 2.50

25-1

0949129014
ref: 25-1
OPT

JET,MAIN(145)

€ 9.00

25-2

0949129015
ref: 25-2
OPT

JET,MAIN(148)

€ 9.00

25-3

0949130018
ref: 25-3
OPT

JET,MAIN(150)

€ 13.00

25-4

0949130019
ref: 25-4
OPT

JET,MAIN(152)

€ 13.00

25-5

0949131012
ref: 25-5
OPT

JET,MAIN(155)

€ 13.00

25-6

0949131013
ref: 25-6
OPT

JET,MAIN(158)

€ 13.00

25-7

0949132010
ref: 25-7
OPT

JET,MAIN(160)

€ 13.00

25-8

0949132011
ref: 25-8
OPT

JET,MAIN(162)

€ 13.00

25-9

0949133009
ref: 25-9
OPT

JET,MAIN(165)

€ 9.00

25-10

0949133010
ref: 25-10
OPT

JET,MAIN(168)

€ 12.50

25-11

0949138011
ref: 25-11
OPT,MODEL P

JET,MAIN(190)

€ 15.50

25-12

0949139001
ref: 25-12
OPT,MODEL P

JET,MAIN(195)

€ 12.50

25-13

0949141001
ref: 25-13
OPT,MODEL P

JET,MAIN(205)

€ 8.50

25-14

0949142006
ref: 25-14
OPT,MODEL P

JET,MAIN(210)

€ 8.50

26-1

0949245032
ref: 26-1
OPT

JET,PILOT(45)

€ 9.00

26-2

0949250023
ref: 26-2
OPT

JET,SLOW(50)

€ 11.50

26-3

0949255017
ref: 26-3
OPT,MODEL R

JET,SLOW(55)

€ 11.50

26-4

0949260016
ref: 26-4
OPT

JET,SLOW(60)

€ 12.50

26-5

0949265008
ref: 26-5
OPT

JET,SLOW(65)

€ 12.00

27-1

1338328E00
ref: 27-1
OPT

NEEDLE(R1469MS)

€ 14.50

27-2

1338328E10
ref: 27-2
OPT

NEEDLE(R1469NS)

€ 11.00

27-3

1338328E20
ref: 27-3
OPT

NEEDLE(R1470MS)

€ 11.00

27-4

1338328E30
ref: 27-4
OPT

NEEDLE(R1470NS)

€ 11.00

27-5

1338328E40
ref: 27-5
OPT,MODEL R

NEEDLE(R1471MS)

€ 11.00

27-6

1338328E50
ref: 27-6
OPT

NEEDLE(R1471NS)

€ 11.00

27-7

1338328E60
ref: 27-7
OPT

NEEDLE (R1472MS)

€ 11.50

27-8

1338328E70
ref: 27-8
OPT

NEEDLE (R1472NS)

€ 13.00

27-9

1338328E80
ref: 27-9
OPT

NEEDLE(R1473MS)

€ 13.00

27-10

1338328E90
ref: 27-10
OPT

NEEDLE(R1473NS)

€ 10.00

all assemblies
