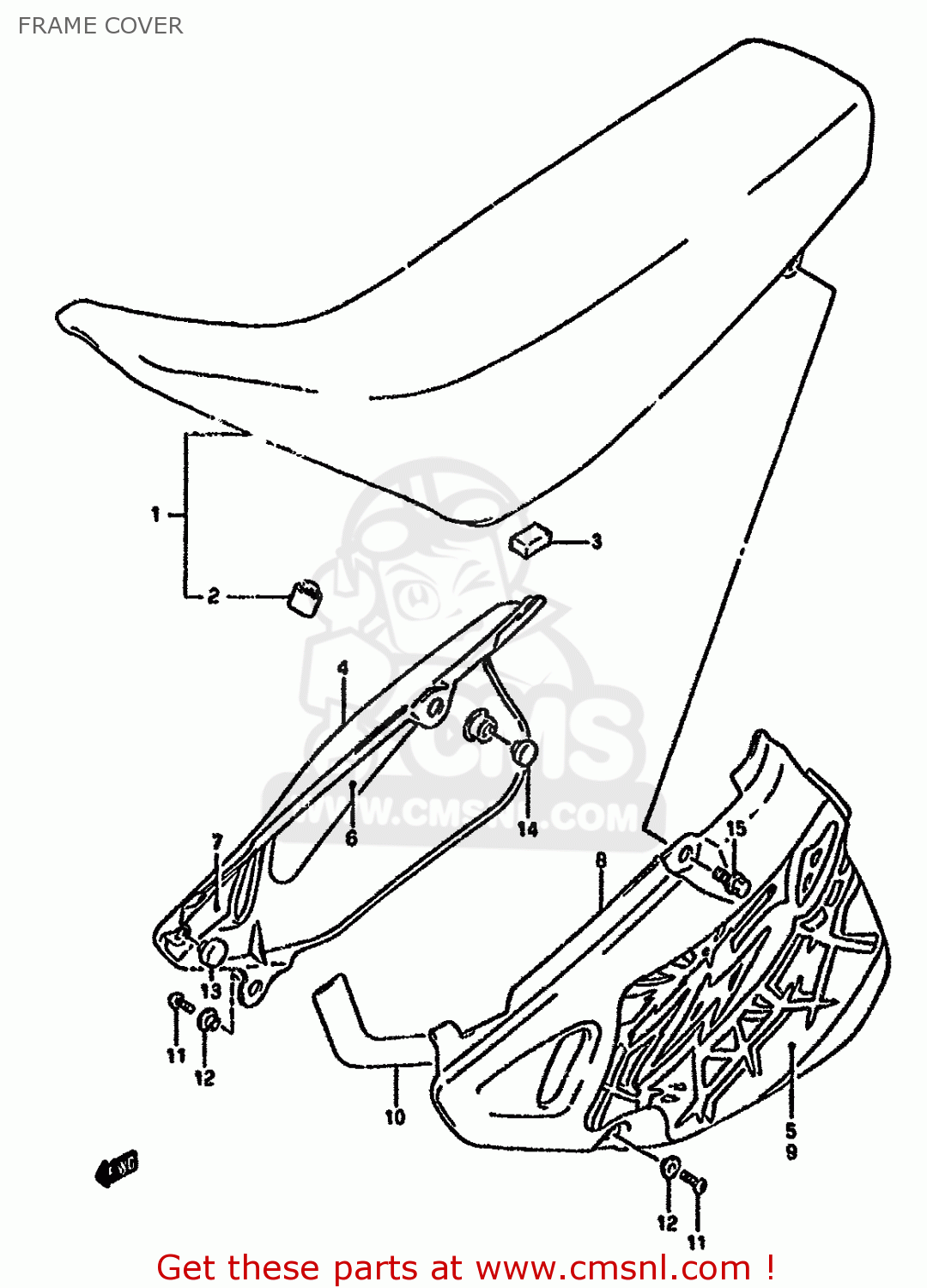

FRAME COVER

ref

part #

description

quantity

1-1

4510028E00A5K
ref: 1-1
MODEL P

SEAT ASSEMBLY

€ 334.50

1-2

4510028E10A5K
ref: 1-2
MODEL R

SEAT ASSEMBLY

€ 334.50

2

0932910001
ref: 2

CUSHION

€ 2.50

3

4529928E00
ref: 3

CUSHION,SEAT

€ 2.50

4

4711129E0030H
ref: 4

COVER,FRAME,R(WHITE)

€ 51.00

5

6813129E00A4J
ref: 5
MODEL P

EMBLEM,FRAME COVER RH

€ 47.00

6

4716629E00
ref: 6

SHIELD,FRAME COVER,R HEAT

€ 18.50

7

4716729E00
ref: 7

SHIELD,FRAME COVER,R NO.2

€ 10.00

8

4721129E0030H
ref: 8

COVER,FRAME,L(WHITE)

€ 51.00

9

6814129E00A4J
ref: 9
MODEL P

EMBLEM,FRAME COVER LH

€ 47.00

10

4726229E00
ref: 10

CUSHION,FRAME COVER LH

€ 12.00

11-1

0214206167
ref: 11-1
MODEL P

SCREW

€ 2.00

11-2

0154706127
ref: 11-2
MODEL R

BOLT

€ 2.00

12

0916906028
ref: 12

WASHER

€ 2.00

13

0932110024
ref: 13

CUSHION

€ 8.50

14

0932110027
ref: 14

CUSHION

€ 5.50

15-1

0151708128
ref: 15-1
MODEL P

BOLT 8X12

€ 3.50

15-2

0155008167
ref: 15-2
MODEL R

BOLT

€ 3.00

all assemblies
