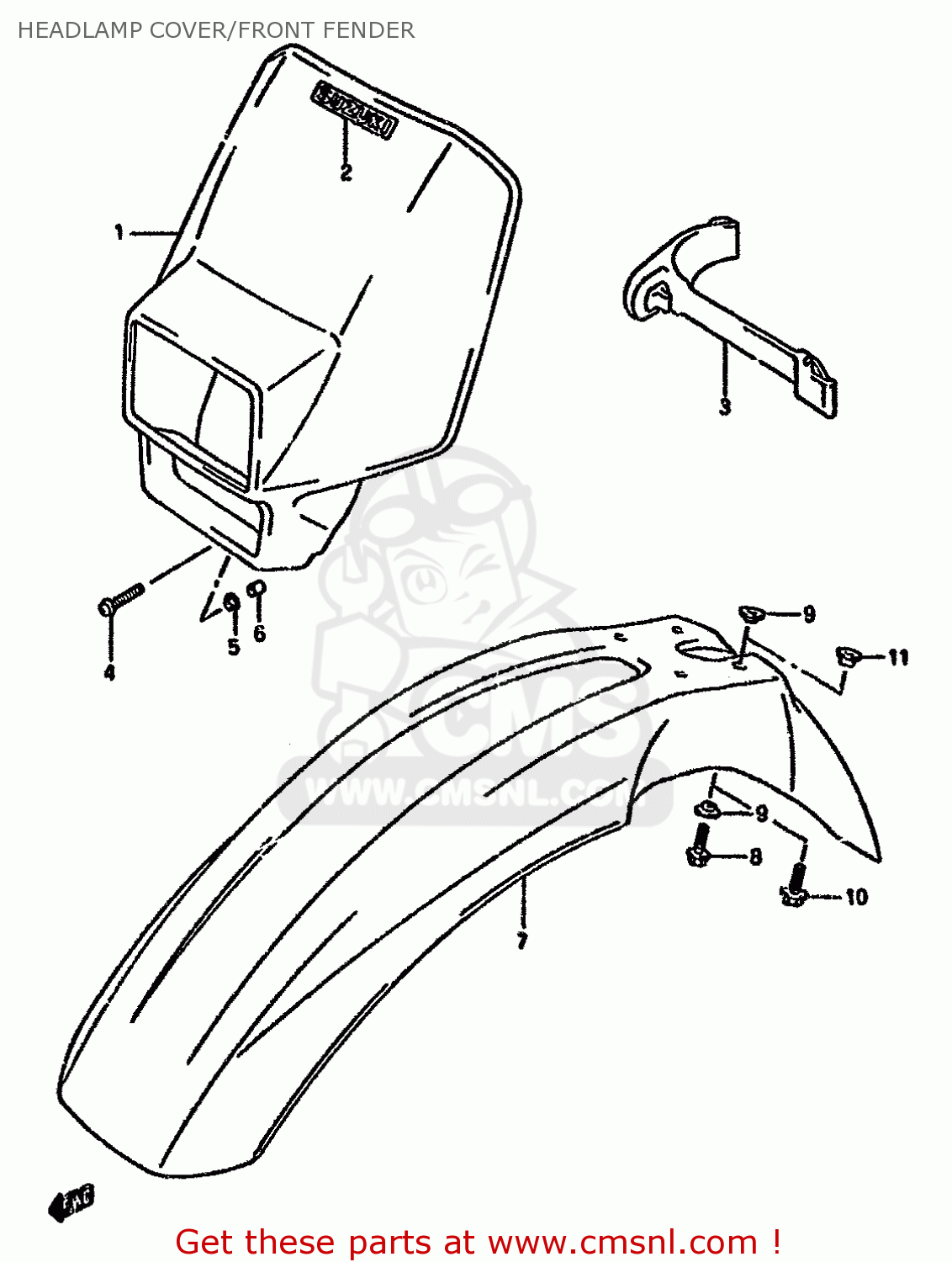

HEADLAMP COVER/FRONT FENDER

ref

part #

description

quantity

1-1

5180029E0025Y
ref: 1-1
MODEL P FOR 25Y-5181

COVER ASSY,HEADLAMP (YELLOW)

€ 75.50

1-2

5181103D0025Y
ref: 1-2

HOUSING,HEADLAMP (YELLOW)

€ 75.50

1-3

5180029E0030H
ref: 1-3
MODEL R FOR 3AE-5181

HOUSING ASSEMBLY,HEADLAMP

€ 86.50

1-4

5181103D0030H
ref: 1-4

COVER,HEADLAMP

€ 86.50

2-1

6817144B00A56
ref: 2-1
MODEL P FOR 25Y

EMBLEM,SUZUKI(YELLOW/PURPLE)

€ 10.00

2-2

6817144B00C5Z
ref: 2-2
MODEL R FOR 30H

EMBLEM,HEADLAMP COVER

€ 9.00

3

5185005D10
ref: 3

BAND,HEADLAMP COVER

€ 8.50

4-1

0214215308
ref: 4-1
MODEL P

SCREW, LOWER

€ 2.00

4-2

0214205307
ref: 4-2
MODEL R

SCREW

€ 2.00

5

0916905012
ref: 5

WASHER

€ 3.00

6

0918006198
ref: 6

SPACER(6.2X12X16)

€ 3.50

7-1

5311127C0025Y
ref: 7-1
MODEL P-53111-27C01-

FENDER,FRONT

€ 87.00

7-2

5311127C0125Y
ref: 7-2
MODEL R

FENDER,FRONT

€ 87.00

8

0151706167
ref: 8
MODEL P

BOLT 6X16

€ 1.50

9

0916906053
ref: 9
MODEL P

WASHER

€ 2.00

10

0911606130
ref: 10
MODEL R

BOLT(6X16)

€ 2.00

11

0916906073
ref: 11
MODEL R

WASHER

€ 4.00

all assemblies
