REAR BRAKE

RMX250R 1994 (R) GENERAL (E01)

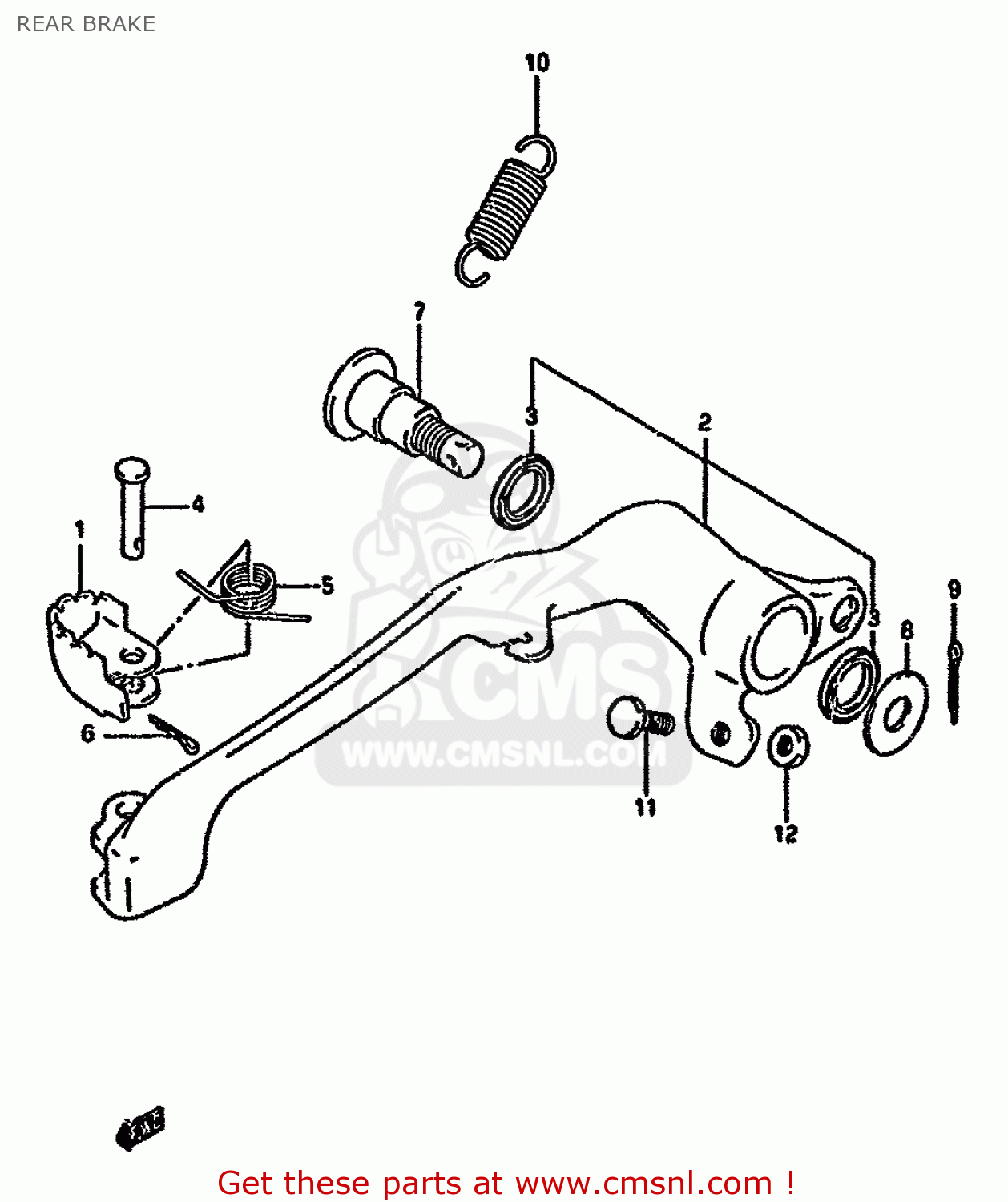

Rear brake diagram RMX250R 1994 (R) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

4311043D00
ref: 1

PEDAL,BRAKE

€ 6.00

2-1

4312028E00
ref: 2-1
MODEL P

ARM,BRAKE PEDAL

€ 136.00

2-2

4312028E10
ref: 2-2
MODEL R

ARM,BRAKE PEDAL

€ 136.00

0928415006
ref: 3

SEAL,OIL(15X21X3)

€ 3.50

0920006062
ref: 4

PIN(6X23.5)

€ 2.50

0944411006
ref: 5

SPRING

€ 3.50

0411120158
ref: 6

PIN

€ 1.50

4314227C00
ref: 7

SHAFT,BRAKE PEDAL

€ 15.00

0821110261
ref: 8

WASHER

€ 2.50

0411120208
ref: 9

PIN 20X20

€ 1.50

0944311039
ref: 10

SPRING

€ 21.50

0910006009
ref: 11

BOLT(6X23)

€ 1.50

12-1

0831011068
ref: 12-1
MODEL P

NUT

€ 2.50

12-2

0831000063
ref: 12-2
MODEL R

NUT 6MM

€ 2.00
