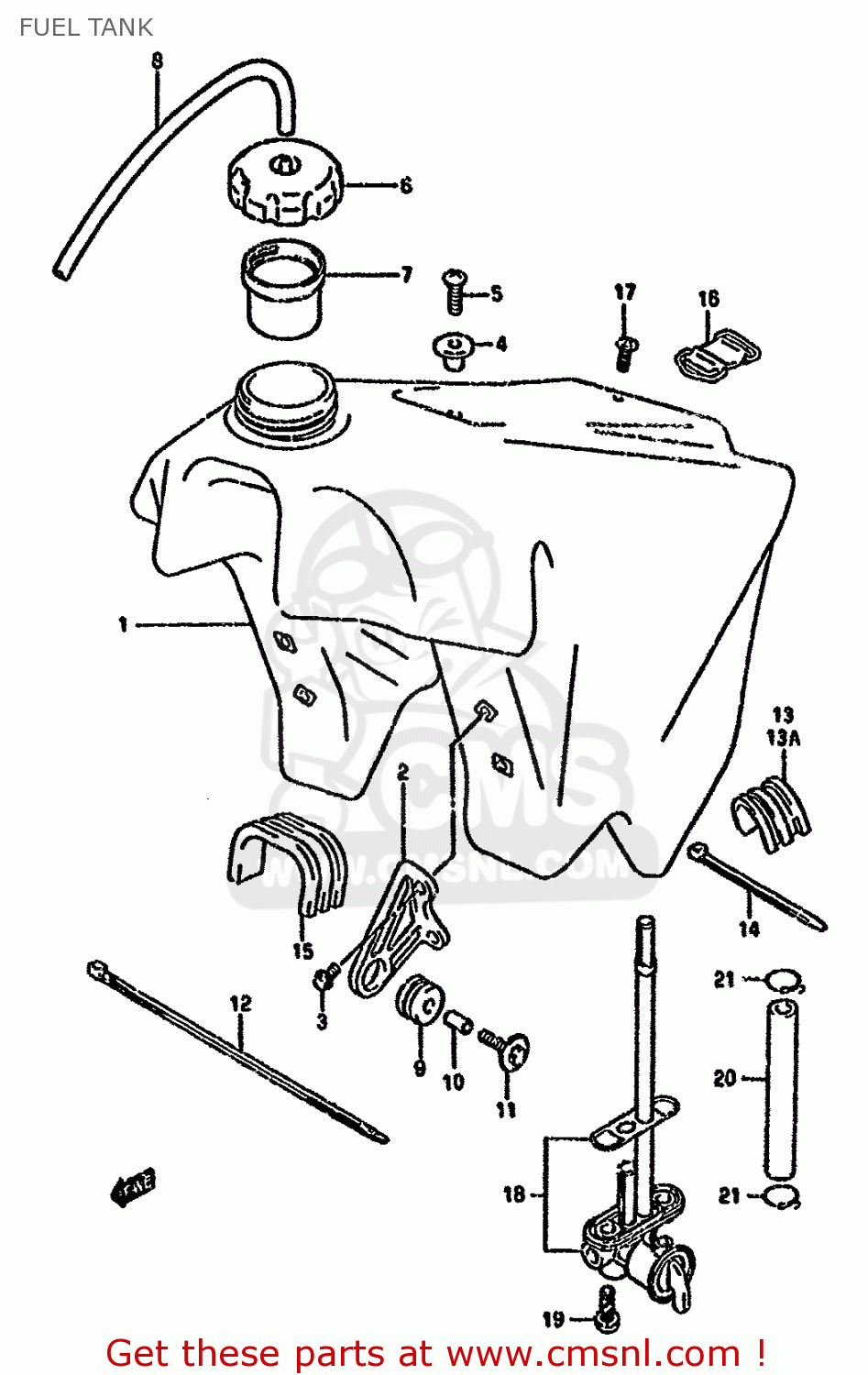

FUEL TANK

ref

part #

description

quantity

1

4411029E301TD
ref: 1

TANK,FUEL (GRAY)

€ 571.50

2

4413127C01
ref: 2

BRACKET,FUEL TANK FR

€ 6.50

3-1

0154706127
ref: 3-1
MODEL P

BOLT

€ 2.00

3-2

0154706123
ref: 3-2
MODEL R

BOLT

€ 2.00

4-1

4413227C00
ref: 4-1
MODEL P

HOOK,SEAT,FRONT

€ 39.00

4-2

4413227C01
ref: 4-2
MODEL R

HOOK,SEAT FR

€ 39.00

5-1

0214206207
ref: 5-1
MODEL P

SCREW

€ 2.00

5-2

0214206203
ref: 5-2
MODEL R

SCREW

€ 2.00

6

4420019A01
ref: 6

CAP ASSY,FUEL TANK

€ 40.00

7

4419919A00
ref: 7

TUBE,FILLER INLET

€ 4.00

8

0935250823300
ref: 8
L:300-280

HOSE

€ 13.00

9

1476201B01
ref: 9

CUSHION,MUFFLER

€ 3.00

10

0918006062
ref: 10

SPACER (6.4X9X13.5)

€ 2.00

11

0911806109
ref: 11

BOLT(6X30)

€ 3.50

12

0940730402
ref: 12

CLAMP(L:300)

€ 3.50

13-1

4454226C00
ref: 13-1
MODEL P

CUSHION,FUEL TANK NO.2

€ 8.00

13-2

4454229E00
ref: 13-2
MODEL R

CUSHION,FUEL TANK NO.2

€ 8.00

13A

4454226C00
ref: 13A
MODEL R

CUSHION,FUEL TANK NO.2

€ 8.00

14

0940714407
ref: 14

CLAMP(L:145)

€ 4.00

15

4454143D00
ref: 15

CUSHION,FUEL TANK

€ 7.50

16

4456027C00
ref: 16

BAND,FUEL TANK RR

€ 8.50

17-1

0214206164
ref: 17-1
MODEL P

SCREW

€ 2.50

17-2

0214206163
ref: 17-2
MODEL R

SCREW

€ 2.50

18

4430029E10
ref: 18

COCK ASSY,FUEL

€ 51.50

19-1

0211236168
ref: 19-1
MODEL P

SCREW

€ 2.00

19-2

0211236163
ref: 19-2
MODEL R

SCREW

€ 2.50

20

0935465113300
ref: 20
L:300-130

HOSE (6.5X11.5X300)

€ 26.00

21

0940111101
ref: 21

CLIP

€ 2.50
