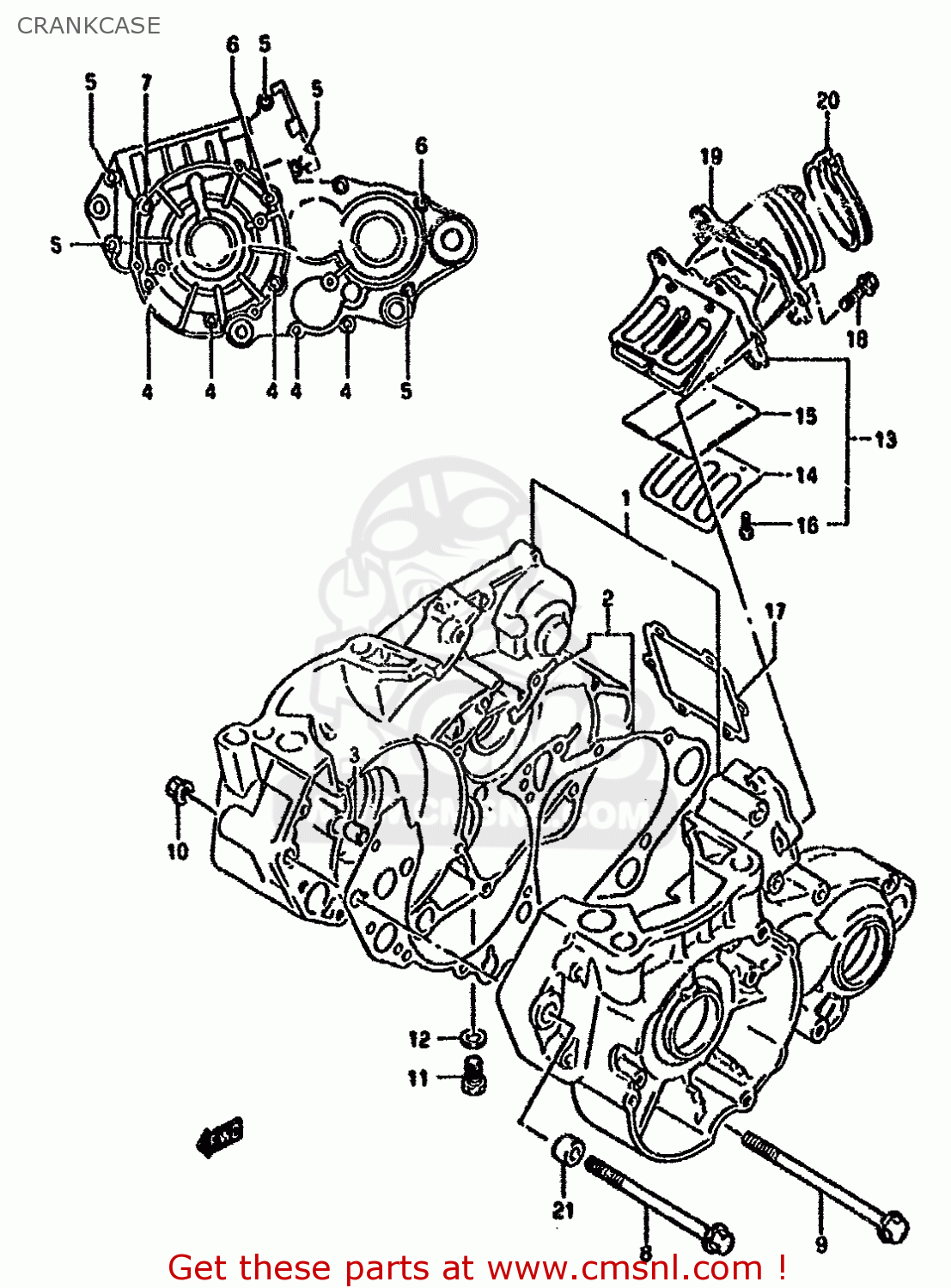

CRANKCASE

ref

part #

description

quantity

1-1

1130005895
ref: 1-1
MODEL P

CRANKCASE SET

€ 343.50

1-2

1130129820
ref: 1-2
MODEL R

CRANKCASE SET

€ 794.00

2

1148128C00
ref: 2

GASKET,CRANKCASE (NAS)

€ 15.00

3

0421109129
ref: 3

PIN

€ 2.00

4-1

0154706407
ref: 4-1
MODEL P

BOLT

€ 2.50

4-2

0154706403
ref: 4-2
MODEL R

BOLT

€ 3.00

5-1

0154706507
ref: 5-1
MODEL P

BOLT

€ 2.50

5-2

0154706503
ref: 5-2
MODEL R

BOLT

€ 3.50

6-1

0154706557
ref: 6-1
MODEL P

BOLT

€ 2.50

6-2

0154706553
ref: 6-2
MODEL R

BOLT

€ 3.00

7-1

0154706607
ref: 7-1
MODEL P

BOLT

€ 2.50

7-2

0154706603
ref: 7-2
MODEL R

BOLT

€ 3.50

8

0910308098
ref: 8

BOLT(8X115)

€ 3.00

9

0910308297
ref: 9

BOLT(8X137)

€ 7.00

10

0915908034
ref: 10

NUT

€ 2.00

11-1

0110708167
ref: 11-1
MODEL P

BOLT,8X16

€ 2.00

11-2

0155008163
ref: 11-2
MODEL R

BOLT

€ 3.00

12-1

0916808008
ref: 12-1
MODEL P

GASKET 8.2X14X1 (NAS)

€ 1.00

12-2

0916808016
ref: 12-2
MODEL R

GASKET(8.2X14X1) (NAS)

€ 1.00

13

1315028E01
ref: 13

VALVE ASSY,REED

€ 88.50

14

1315228E00
ref: 14

STOPPER,REED VALVE

€ 4.00

15

1315328E00
ref: 15

VALVE,REED

€ 14.50

16

0211213063
ref: 16

SCREW

€ 3.00

17

1315601C10
ref: 17

GASKET,REED VALVE (NAS)

€ 3.00

18-1

0154706207
ref: 18-1
MODEL P

BOLT

€ 2.50

18-2

0154706203
ref: 18-2
MODEL R

SCREW

€ 2.50

19

1311028E00
ref: 19

PIPE,INTAKE

€ 62.50

20

0940256208
ref: 20

CLAMP

€ 3.50

21

1161129E00
ref: 21

SPACER,ENG MTG

€ 8.50
