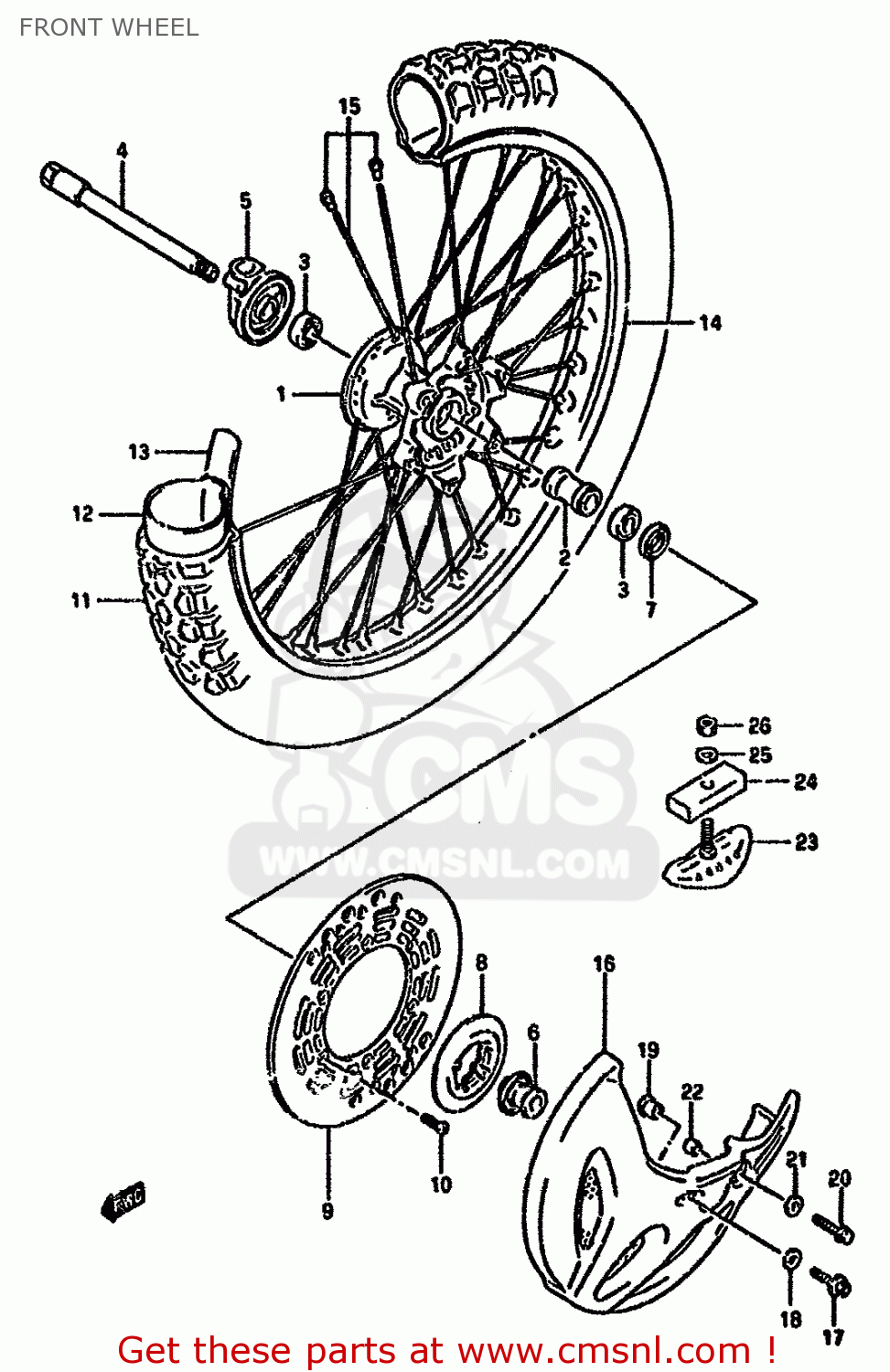

FRONT WHEEL

ref

part #

description

quantity

1

5411105D00
ref: 1

HUB,FRONT WHEEL

€ 161.00

2

5473001B00
ref: 2

SPACER,FR HUB BEARING

€ 34.00

3

0812360037
ref: 3

BEARING

€ 16.50

4

5471105D01
ref: 4

AXLE,FR

€ 52.00

5

5460005D00
ref: 5

BOX ASSY,SPEEDOMETER GEAR

€ 66.00

6

5475005D00
ref: 6

SPACER,FR AXLE,L

€ 8.50

7

0928423001
ref: 7

SEAL,OIL(23X35X6)

€ 5.00

8

5413827C10
ref: 8

CAP,FR HUB,L

€ 12.00

9

5922128C00
ref: 9

DISC,FR BRAKE

€ 193.00

10

5942129E00
ref: 10

SCREW,BRAKE DISC

€ 4.50

11

5511028C21
ref: 11

TIRE,FRONT 80/100-21

€ 97.00

12

5520016510
ref: 12

TUBE

€ 32.50

13

5526116510
ref: 13

PROTECTOR,WHEEL,INNER

€ 5.00

14

5531127C00
ref: 14

RIM,FRONT WHEEL (1.60X2

€ 322.50

15

5532001B00
ref: 15

SPOKE SET,FRONT

€ 97.00

16-1

5923128C0130H
ref: 16-1
MODEL P

COVER,FRONT BRAKE DISC

€ 38.00

16-2

5923128C0125Y
ref: 16-2
MODEL R

COVER,FR BRAKE DISC

€ 41.00

17

0910308310
ref: 17

BOLT

€ 3.00

18

0916008043
ref: 18

WASHER(8.5X18X1)

€ 1.50

19

0916908047
ref: 19

WASHER (8.5X16X1.6)

€ 6.50

20-1

0154706257
ref: 20-1
MODEL P

BOLT

€ 2.50

20-2

0154706253
ref: 20-2
MODEL R

SCREW

€ 2.50

21

0916006028
ref: 21

WASHER(6.5X18X1)

€ 1.50

22

0918006116
ref: 22

SPACER(6.1X8X14.5)

€ 2.00

23

6527014300
ref: 23

STOPPER,BEAD

€ 26.00

24

6527127C00
ref: 24

CUSHION,BEAD STOPPER

€ 5.50

25-1

0832211088
ref: 25-1
MODEL P

WASHER

€ 2.00

25-2

0832201083
ref: 25-2
MODEL R

WASHER

€ 1.50

26-1

0831012088
ref: 26-1
MODEL P

NUT

€ 2.00

26-2

0831000083
ref: 26-2
MODEL R

NUT

€ 1.50
