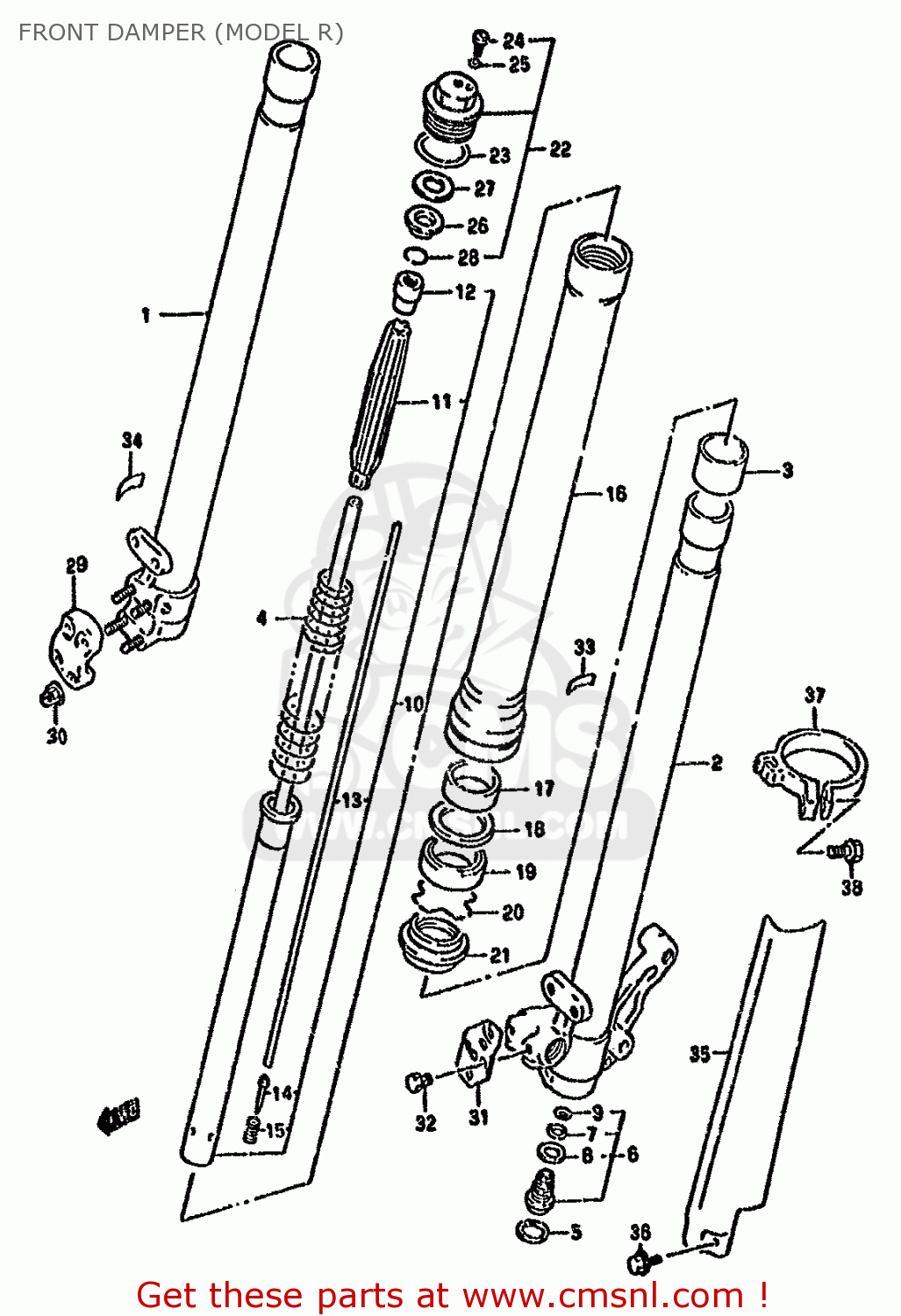

FRONT DAMPER (MODEL R)

ref

part #

description

quantity

0

5110329E20
ref: 0
SHOWA

DAMPER ASSY,RH

€ 0.00

0

5110429E20
ref: 0
SHOWA

DAMPER ASSY,LH

€ 0.00

1

5111028E00
ref: 1

TUBE,INNER,RIGHT

€ 416.50

2

5112028E00
ref: 2

TUBE,INNER,L

€ 451.50

3

5112127C40
ref: 3

BUSH,SLIDE

€ 13.50

4

5117129E20
ref: 4

SPRING,MAIN

€ 61.00

5

5113343D00
ref: 5

RING,CTR BOLT STOPPER

€ 5.00

6

5117029E50
ref: 6

BOLT ASSEMBLY,CENTER

€ 198.00

7

5117743D00
ref: 7

O RING,CTR BOLT

€ 5.50

8

5114843D00
ref: 8

GASKET (NAS)

€ 6.50

9

5117443D00
ref: 9

O RING,CTR BOLT UPR

€ 3.00

10

5119029E20
ref: 10

CYLINDER

€ 502.50

11

5117228E00
ref: 11

GUIDE,PUSH ROD SPRING

€ 36.00

12

5112943D00
ref: 12

NUT,ROD

€ 19.50

13

5119128E00
ref: 13

ROD,PUSH

€ 8.00

14

5119205080
ref: 14

NEEDLE

€ 0.00

15

5119328E00
ref: 15

SPRING,PUSH ROD

€ 3.50

16

5113028E00
ref: 16

TUBE,OUTER

€ 549.50

17

5116728E00
ref: 17

BUSH,GUIDE

€ 19.00

18

5115827C40
ref: 18

SPACER,SEAL

€ 6.00

19

5115328E30
ref: 19

SEAL,OIL

€ 19.00

20

5115627C40
ref: 20

RING,OIL SEAL STOPPER

€ 3.50

21

5117328E30
ref: 21

SEAL,DUST

€ 22.00

22

5135128E00
ref: 22

BOLT ASSY,FORK

€ 97.00

23

5111727C40
ref: 23

O RING

€ 3.50

24

5135727C40
ref: 24

BOLT,PLUG

€ 5.50

25

5111719C10
ref: 25

O RING

€ 2.00

26

5117528E00
ref: 26

SEAT,SPRING

€ 8.00

27

5117628E00
ref: 27

WASHER,THRUST

€ 5.50

28

5113328E00
ref: 28

RING,STOPPER

€ 4.00

29

5113227C40
ref: 29

HOLDER,AXLE,R

€ 34.00

30

0831931067
ref: 30

NUT

€ 2.50

31

5924827C40
ref: 31

GUIDE,HOSE,L

€ 14.00

32

0150005087
ref: 32

BOLT

€ 2.00

33

5114929E20
ref: 33

LABEL

€ 2.50

34

5114929E40
ref: 34

LABEL

€ 3.50

35-1

5150129E00
ref: 35-1

PROTECTOR,FORK,R

€ 80.00

35-2

5151129E00
ref: 35-2

PROTECTOR,FORK,L

€ 87.00

36

5862727C40
ref: 36

BOLT,PROTECTOR(6X10)

€ 2.50

37

5121043D00
ref: 37

GUIDE,FORK PROTECTOR

€ 46.50

38

5862843D00
ref: 38

BOLT,PROTECTOR GUIDE,6

€ 2.50

all assemblies
