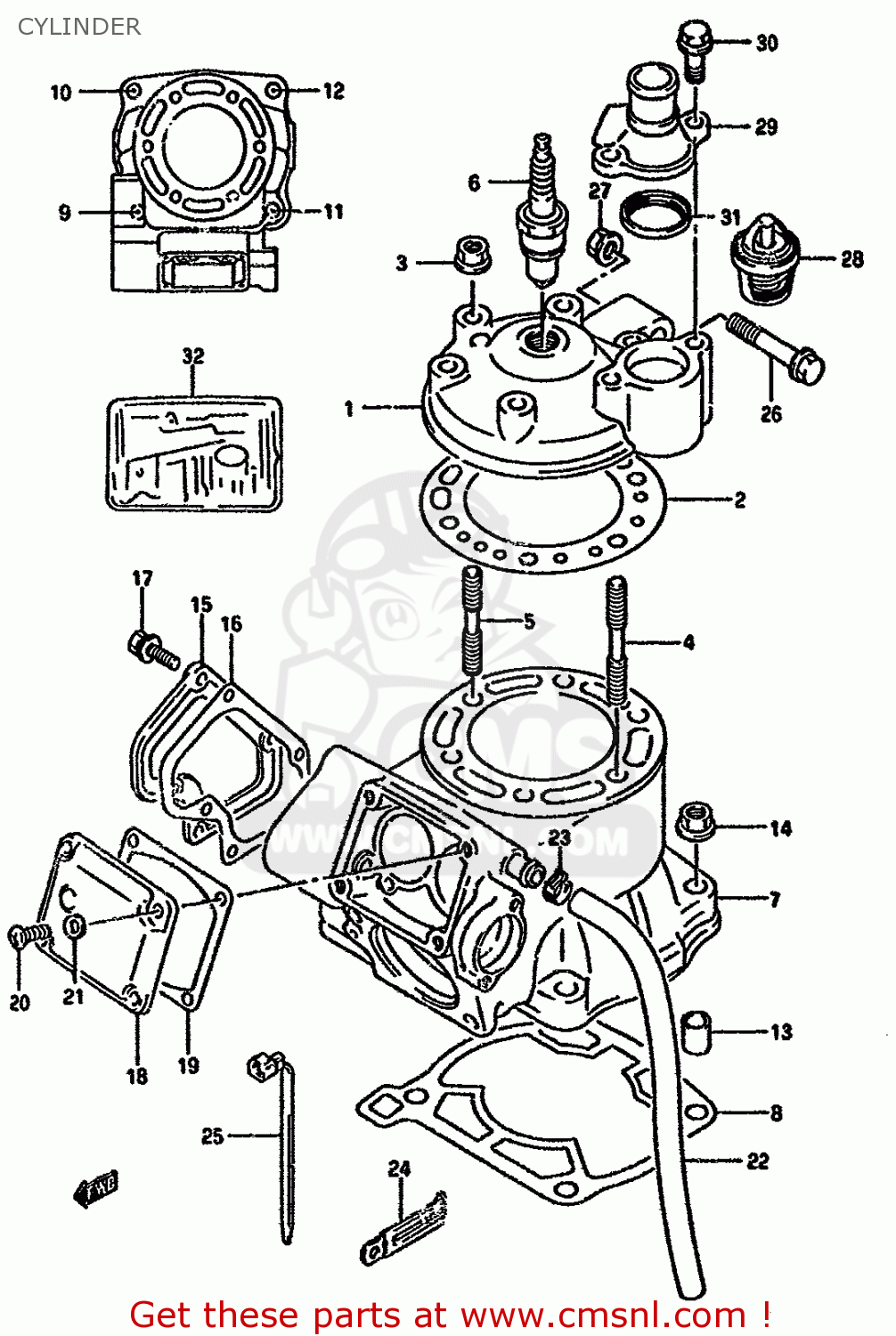

CYLINDER

ref

part #

description

quantity

1

1111129E00
ref: 1

HEAD,CYLINDER

€ 155.50

2

1114129E00
ref: 2

GASKET,CYLINDER HEAD

€ 26.00

3-1

0831616088
ref: 3-1
MODEL P

NUT

€ 2.50

3-2

0831610083
ref: 3-2
MODEL R

NUT

€ 3.00

4

0910808234
ref: 4

STUD BOLT (L:76)

€ 13.50

5

0910808235
ref: 5

BOLT,STUD

€ 9.00

6

0948200115
ref: 6

SPARK PLUG BR9EV

€ 81.50

7

1120029821
ref: 7

CYLINDER SET

€ 805.00

8

1124128C11
ref: 8

GASKET,CYLINDER (NAS)

€ 11.50

9

0142110308
ref: 9

STUD 10X30

€ 2.50

10

0142110358
ref: 10

STUD BOLT

€ 2.00

11

0142110408
ref: 11

STUD BOLT (L:40)

€ 2.00

12

0142110458
ref: 12

STUD BOLT (L:45)

€ 2.50

13

0920613006
ref: 13

PIN

€ 9.00

14-1

0831616108
ref: 14-1
MODEL P

NUT

€ 2.00

14-2

0831610103
ref: 14-2
MODEL R

NUT

€ 2.00

15-1

1123129E00
ref: 15-1
MODEL P

COVER,CYLINDER NO.1

€ 23.50

15-2

1123129E01
ref: 15-2
MODEL R

COVER,CYLINDER NO.1

€ 23.50

16

1123329E00
ref: 16

GASKET,CYL COVER NO.1 (NAS)

€ 4.50

17-1

0117706168
ref: 17-1
MODEL P

BOLT

€ 3.00

17-2

0158006163
ref: 17-2
MODEL R

BOLT

€ 2.50

18

1124805010
ref: 18

COVER,CYLINDER NO.2

€ 0.00

19

1123805D00
ref: 19

GASKET,CYLINDER COVER (NAS)

€ 2.50

20-1

0211205168
ref: 20-1
MODEL P

SCREW

€ 2.50

20-2

0211205163
ref: 20-2
MODEL R

SCREW

€ 2.00

21

0916805010
ref: 21

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

22

0934309501
ref: 22

HOSE

€ 13.50

23

0940112405
ref: 23

CLIP

€ 3.00

24

0940406402
ref: 24

CLAMP

€ 2.50

25

0940714403
ref: 25

CLAMP(L:125)

€ 2.50

26-1

0910308043
ref: 26-1
MODEL P

BOLT(8X45)

€ 4.50

26-2

0910308083
ref: 26-2
MODEL R

BOLT(8X41)

€ 3.50

27

0915908034
ref: 27

NUT

€ 2.00

28

1767029E00
ref: 28
OPT

THERMOSTAT,WATER 60 DEG

€ 49.00

29

1766129E00
ref: 29

COVER,THERMOSTAT

€ 83.00

30-1

0151708207
ref: 30-1
MODEL P

BOLT

€ 3.00

30-2

0155008203
ref: 30-2
MODEL R

BOLT

€ 3.00

31

1766430B00
ref: 31

SEAL,THERMOSTAT COVER

€ 41.00

32

1140129810
ref: 32

GASKET SET (NAS)

€ 119.00
