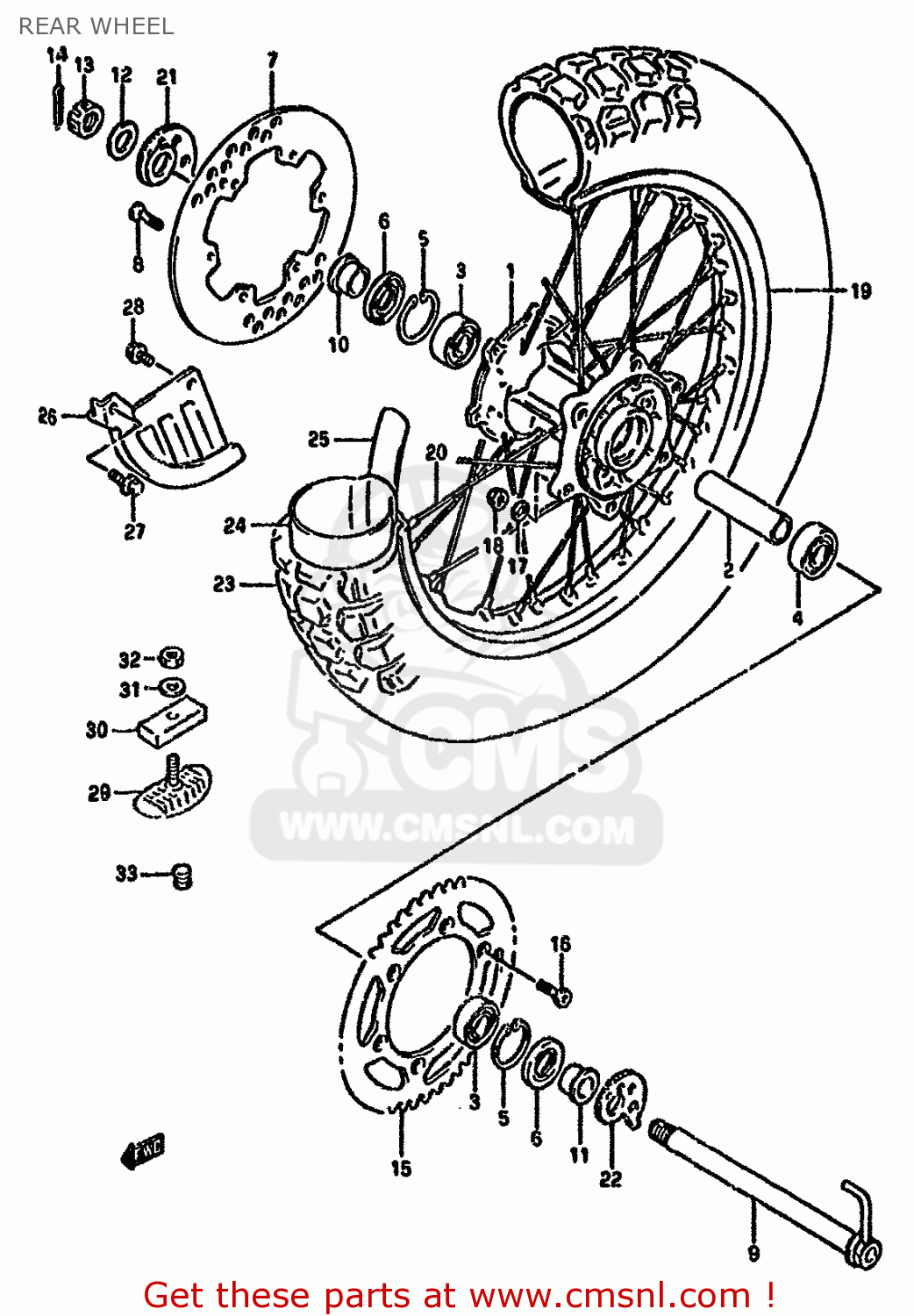

REAR WHEEL

ref

part #

description

quantity

1

6411028C01
ref: 1

HUB,RR

€ 352.00

2

6473100B30
ref: 2

SPACER,RR HUB BEARING

€ 15.50

3

0813362047
ref: 3

BEARING WHEEL REAR(20X47X14)

€ 22.50

4

0812360047
ref: 4

BALL BEARING

€ 21.00

5

0833141478
ref: 5

CIRCLIP,14MM

€ 2.50

6

0928326019
ref: 6

SEAL,OIL(26X47X5)

€ 9.50

7

6921143D00
ref: 7

DISC,RR BRAKE

€ 160.00

8

5942129E00
ref: 8

SCREW,BRAKE DISC

€ 4.50

9

6471029E10
ref: 9

AXLE,RR

€ 66.00

10

6474105D00
ref: 10

SPACER,RR AXLE,R

€ 9.00

11

6475105D00
ref: 11

SPACER,RR AXLE,L

€ 15.00

12

0916019022
ref: 12

WASHER(19X32X3.2)

€ 5.00

13-1

0831441188
ref: 13-1
MODEL P

NUT 18MM

€ 6.00

13-2

0831440183
ref: 13-2
MODEL R

NUT

€ 4.50

14

0411140308
ref: 14

PIN,COTTER

€ 1.50

15-1

6451100B11
ref: 15-1
STEEL

SPROCKET,REAR

€ 86.00

15-2

6451100B01
ref: 15-2
OPT,STEEL

SPROCKET,RR(NT:49)

€ 99.00

15-3

6451100B21
ref: 15-3
OPT,STEEL

SPROCKET,RR(NT:51)

€ 66.00

15-4

6451140281
ref: 15-4
OPT,ALUMINIUM

SPROCKET,REAR

€ 99.00

15-5

6451140271
ref: 15-5
OPT,ALUMINIUM-64511-

SPROCKET,REAR

€ 99.00

15-6

6451115D20
ref: 15-6
OPT,ALUMINIUM

SPROCKET,REAR (NT:50)

€ 99.00

15-7

6451140261
ref: 15-7
OPT,ALUMINIUM

SPROCKET,RR(NT:51 AL)

€ 87.50

16

0912008004
ref: 16

SCREW(8X33.5)

€ 3.00

17

0916408011
ref: 17

WASHER

€ 3.50

18

0831931087
ref: 18

NUT

€ 2.50

19

6531128C00
ref: 19

RIM,REAR WHEEL (2.15X18)(A

€ 351.50

20

6532029E10
ref: 20

SPOKE SET,REAR WHEEL

€ 94.00

21

6141029E00
ref: 21
RH

ADJUSTER,CHAIN,R

€ 13.00

22

6141014D10
ref: 22
LH

ADJUSTER,CHAIN,R

€ 31.50

23

6510005D00
ref: 23

TIRE,REAR 110/100-18

€ 0.00

24

6520029E10
ref: 24

TUBE ASSEMBLY,WHEEL,INNER

€ 0.00

25

5526111010
ref: 25

PROTECTOR,INNER TUBE

€ 3.50

26

6923128C00
ref: 26

COVER,REAR DISC

€ 29.50

27-1

0151706207
ref: 27-1
MODEL P

BOLT 6X20

€ 2.50

27-2

0155006203
ref: 27-2
MODEL R

BOLT

€ 2.50

28-1

0151706128
ref: 28-1
MODEL P

BOLT

€ 2.50

28-2

0155006123
ref: 28-2
MODEL R

BOLT

€ 2.50

29

6527028E00
ref: 29

STOPPER,BEAD(2.15)

€ 38.00

30

6527127C00
ref: 30

CUSHION,BEAD STOPPER

€ 5.50

31-1

0832211088
ref: 31-1
MODEL P

WASHER

€ 2.00

31-2

0832201083
ref: 31-2
MODEL R

WASHER

€ 1.50

32-1

0831012088
ref: 32-1
MODEL P

NUT

€ 2.00

32-2

0831000083
ref: 32-2
MODEL R

NUT

€ 1.50

33

0925008013
ref: 33

CAP(OD:12)

€ 2.00
