CARBURETOR
SP370 1978 1979 (C) (N) USA (E03)

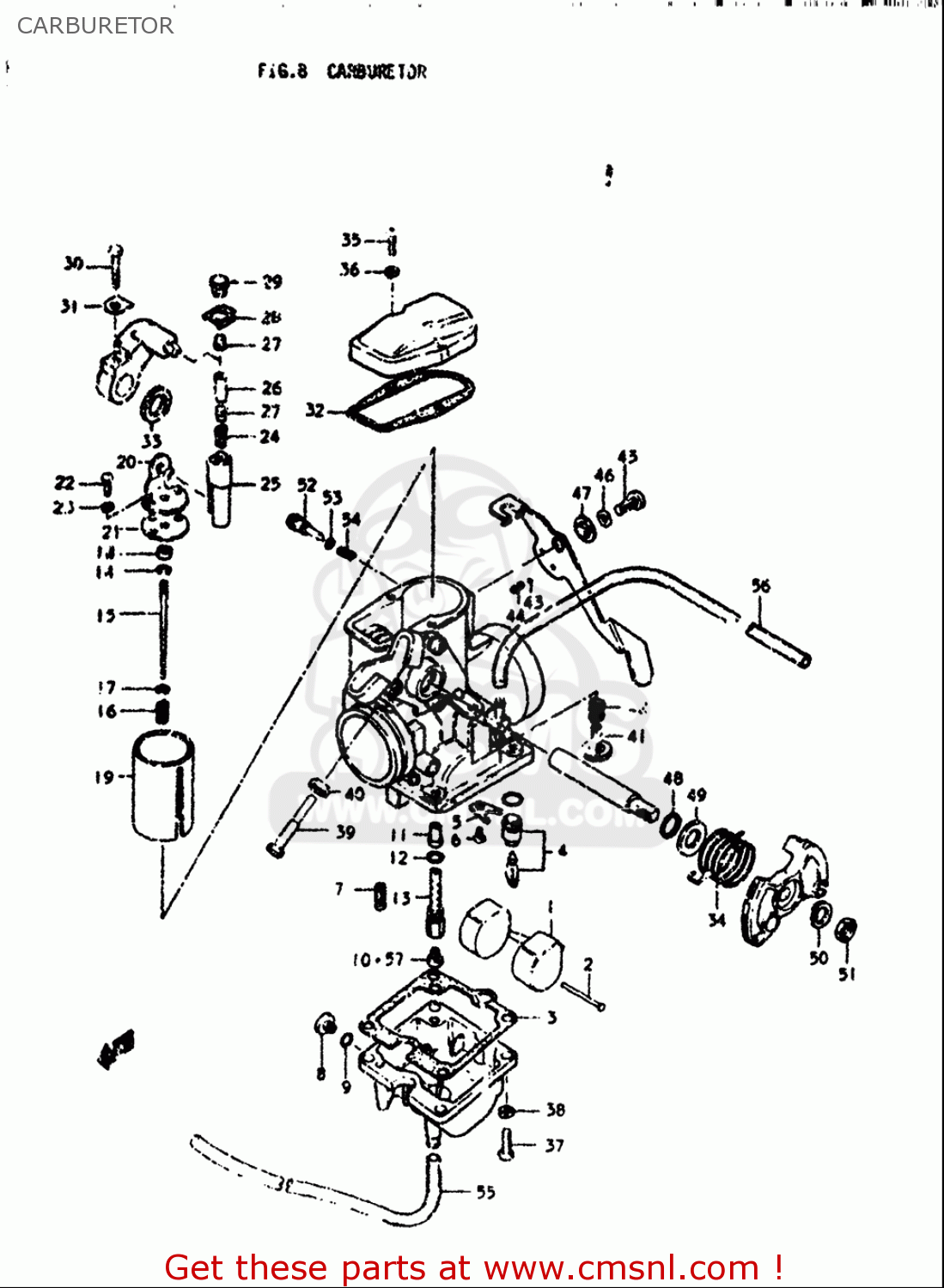

Carburetor diagram SP370 1978 1979 (C) (N) USA (E03)
CARBURETOR SP370 1978 1979 (C) (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1325232410
ref: 1
FLOAT
€ 34.50
2
1325492311
ref: 2
PIN,FLOAT
€ 2.00
3
1325132410
ref: 3
GASKET,FLOAT CAHMBER (NAS)
€ 9.50
4
1337032410
ref: 4
VALVE ASSY,NEEDLE
€ 90.00
5
1337339110
ref: 5
PLATE
€ 6.50
6
0211204063
ref: 6
SCREW 4X6
€ 2.00
7
0949225005
ref: 7
JET,PILOT(25)
€ 6.50
8
1324745010
ref: 8
SCREW
€ 7.50
9
1324643010
ref: 9
O RING
€ 4.00
10
0949125010
ref: 10
JET,MAIN(125)
€ 8.50
12
1324643010
ref: 12
O RING
€ 4.00
14
1339410010
ref: 14
CLIP
€ 4.50
16
1338847010
ref: 16
SPRING
€ 7.00
17
1338247010
ref: 17
WASHER,JET NEEDLE
€ 3.00
18
1338747010
ref: 18
RING
€ 7.50
22
0211203107
ref: 22
SCREW
€ 1.50
23
0916203001
ref: 23
WASHER,LOCK
€ 1.50
24
1354332410
ref: 24
SPRING,CARBURETOR
€ 0.00
29
1354832212
ref: 29
SCREW
€ 0.00
32
1326630650
ref: 32
GASKET,TOP (NAS)
€ 6.50
35
0211204163
ref: 35
SCREW 4X16
€ 1.00
36
0832101043
ref: 36
WASHER,LOCK
€ 2.00
37
0211205167
ref: 37
SCREW
€ 2.50
38
0832101057
ref: 38
WASHER,LOCK
€ 2.00
39
1360532410
ref: 39
SCREW
€ 0.00
42
1326831210
ref: 42
SPRING,THROTTLE SCREW
€ 4.00
43
1359693010
ref: 43
BALL,CARBURETOR
€ 3.50
44
1343443010
ref: 44
SPRING
€ 6.50
45
0211206127
ref: 45
SCREW
€ 2.00
46
0832101067
ref: 46
WASHER,LOCK
€ 2.50
47
1342430650
ref: 47
RING,CARBURETOR STARTER
€ 5.00
48
1355632410
ref: 48
SEAL
€ 7.50
50-1
0832101087
ref: 50-1
WASHER,LOCK
€ 2.00
50-2
0832101087
ref: 50-2
WASHER,LOCK
€ 2.00
51-1
1360737010
ref: 51-1
NUT
€ 2.00
51-2
0831000087
ref: 51-2
NUT
€ 2.00
52
1326915011
ref: 52
SCREW,PILOT AIR ADJUSTING
€ 12.50
53
1329533010
ref: 53
O RING
€ 4.50
54
1326801010
ref: 54
SPRING
€ 3.50
56
0935545855600
ref: 56
HOSE(4.5X8.5X600)
€ 14.00
