FRONT FORK
SP370 1978 1979 (C) (N) USA (E03)

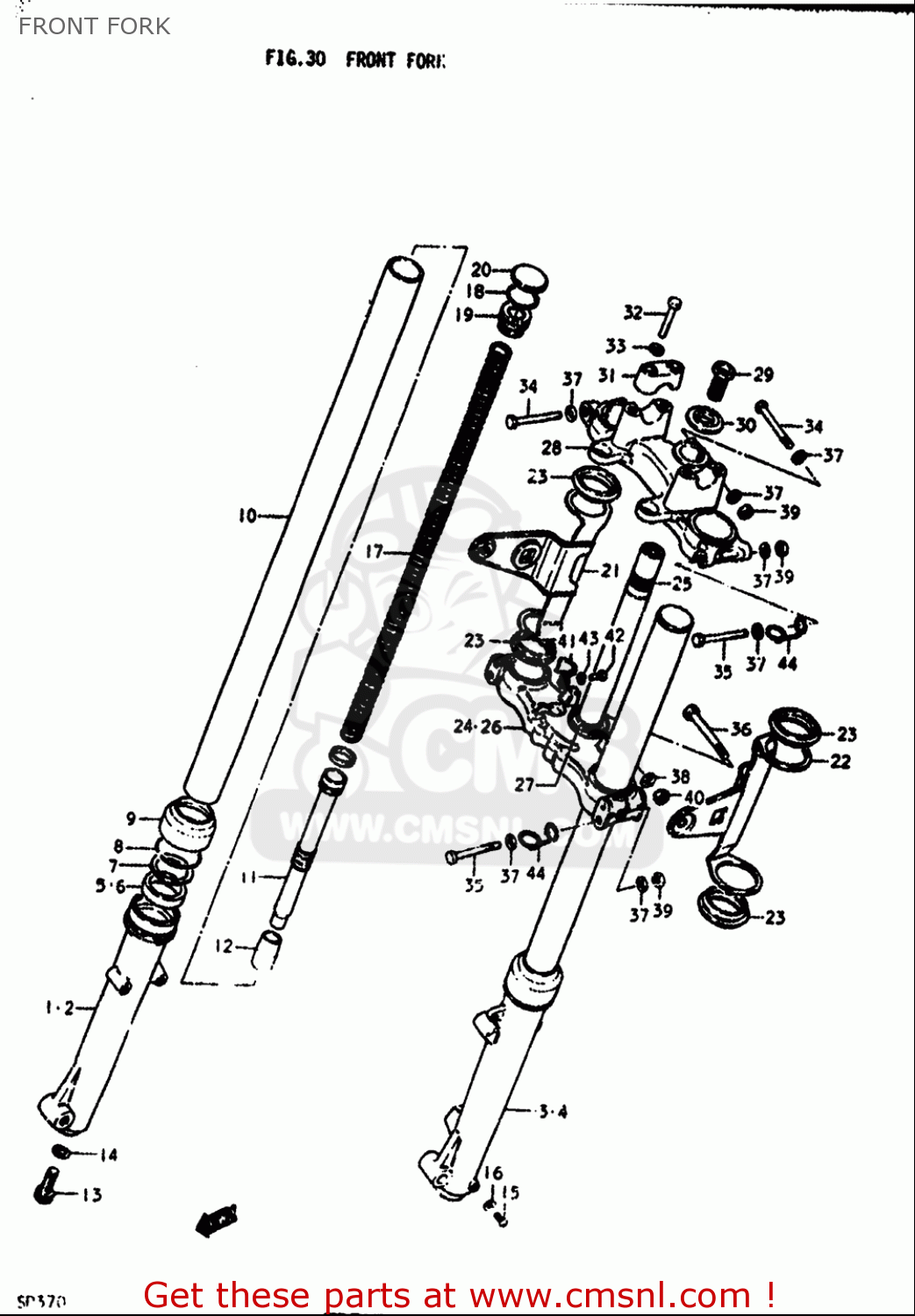

Front fork diagram SP370 1978 1979 (C) (N) USA (E03)
FRONT FORK SP370 1978 1979 (C) (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5
5115316730
ref: 5
SEAL,OIL
€ 28.50
6
5115316730
ref: 6
SEAL,OIL
€ 28.50
9
5117341110
ref: 9
SEAL,DUST
€ 10.50
12
5119549071
ref: 12
PIECE,OIL LOCK
€ 12.00
13
5114716510
ref: 13
BOLT,FORK CYLINDER(10X25)
€ 3.50
14
5114841310
ref: 14
GASKET (NAS)
€ 2.50
15
0211204087
ref: 15
SCREW
€ 1.50
16
5118303010
ref: 16
GASKET,DRAIN,PLUG (NAS)
€ 3.00
18
5111716310
ref: 18
O RING
€ 4.50
19
5135130520
ref: 19
CAP,FORK INNER TUBE
€ 9.00
20
5118930520
ref: 20
CAP,FR FORK
€ 11.50
27
5162133001
ref: 27
RACE,STEERING OUTER LWR
€ 10.00
29
5135141310
ref: 29
BOLT,STEERING STEM HEAD
€ 10.50
30
5135641310
ref: 30
WASHER
€ 6.00
31
5621127100
ref: 31
HOLDER,HANDLEBAR
€ 12.50
32
0150008353
ref: 32
BOLT
€ 3.50
33
0832101087
ref: 33
WASHER,LOCK
€ 2.00
34
0150008557
ref: 34
BOLT
€ 3.00
35
0150008603
ref: 35
BOLT
€ 2.50
36
0150010603
ref: 36
BOLT
€ 3.50
37
0832201087
ref: 37
WASHER
€ 2.00
38
0832101107
ref: 38
WASHER,LOCK
€ 2.00
39
0831000087
ref: 39
NUT
€ 2.00
40
0831000107
ref: 40
NUT
€ 2.50
41
5145305110
ref: 41
CLIP,BRAKE CABLE
€ 4.50
42
0211206107
ref: 42
SCREW
€ 1.50
43
0832101067
ref: 43
WASHER,LOCK
€ 2.50
44
5145529330
ref: 44
CLIP
€ 5.50
