RIGHT HANDLE SWITCH
SP370 1978 1979 (C) (N) USA (E03)

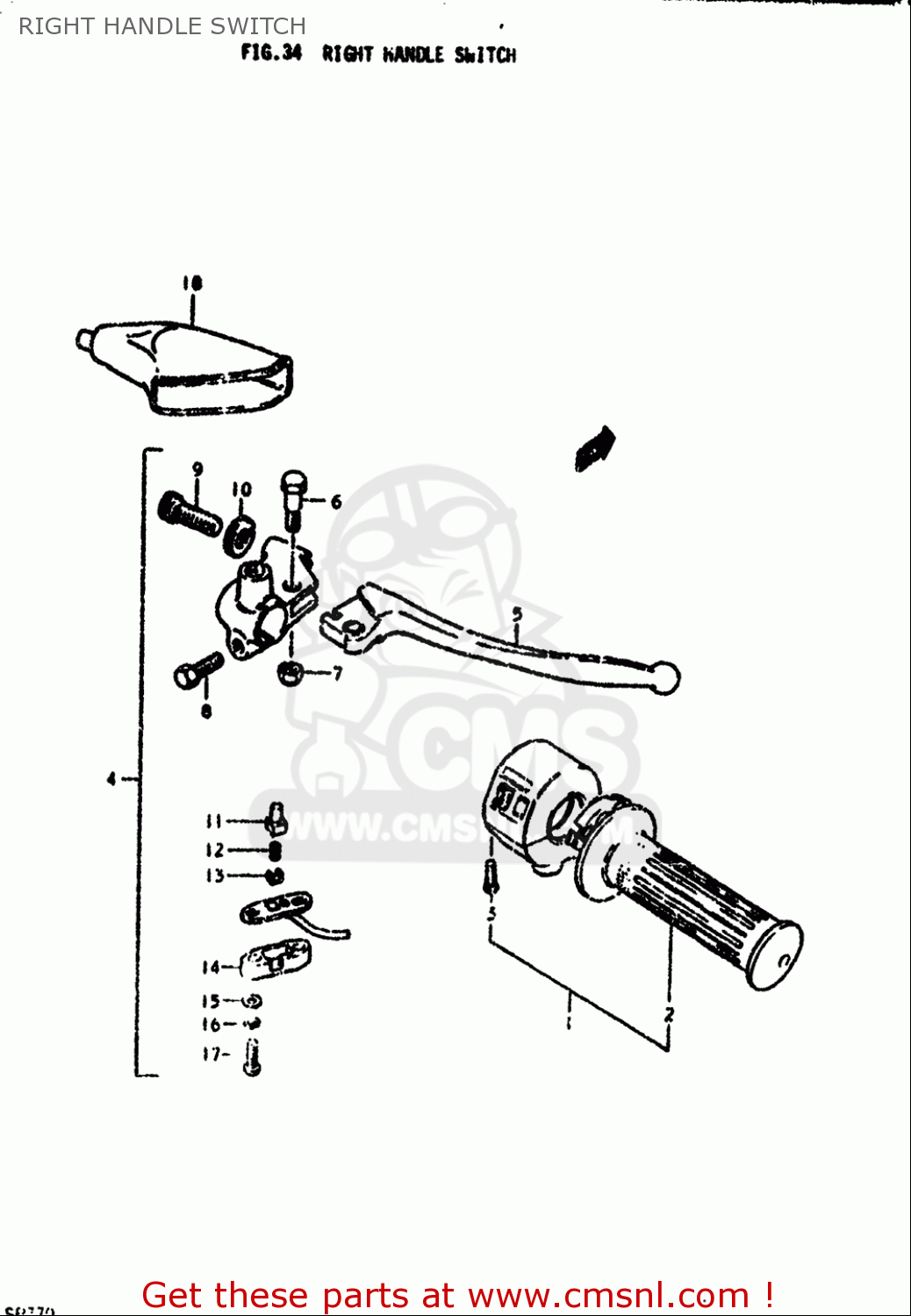

Right handle switch diagram SP370 1978 1979 (C) (N) USA (E03)
RIGHT HANDLE SWITCH SP370 1978 1979 (C) (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710030530
ref: 1
CASE ASSEMBLY,THROTTLE
€ 47.00
2
5711030501
ref: 2
GRIP,THROTTLE
€ 22.50
3
0211205257
ref: 3
SCREW
€ 2.00
4
5730030501
ref: 4
BRAKE LEVER & SWITCH ASSY
€ 59.00
5
5742018602
ref: 5
LEVER,BRAKE
€ 37.00
6
5743111013
ref: 6
BOLT,LEVER PIVOT
€ 6.00
7
0831921068
ref: 7
NUT 6MM
€ 2.00
8
0150006207
ref: 8
BOLT
€ 2.00
9
5744111010
ref: 9
ADJUSTER,CABLE
€ 8.00
10
5744211010
ref: 10
NUT,CABLE ADJUSTER
€ 4.00
11
5746518601
ref: 11
CONTACT,SWITCH
€ 4.50
12
5746518601
ref: 12
CONTACT,SWITCH
€ 4.50
13
5746518601
ref: 13
CONTACT,SWITCH
€ 4.50
14
5748133010
ref: 14
COVER,FR BK TERMINAL BASE
€ 19.50
15
0832201037
ref: 15
WASHER
€ 2.00
16
0916203001
ref: 16
WASHER,LOCK
€ 1.50
17
0912503105
ref: 17
SCREW
€ 2.50
18
5734140002
ref: 18
COVER,CLUTCH LEVER
€ 7.50
