SPEEDOMETER - TACHOMETER
SP370 1978 1979 (C) (N) USA (E03)

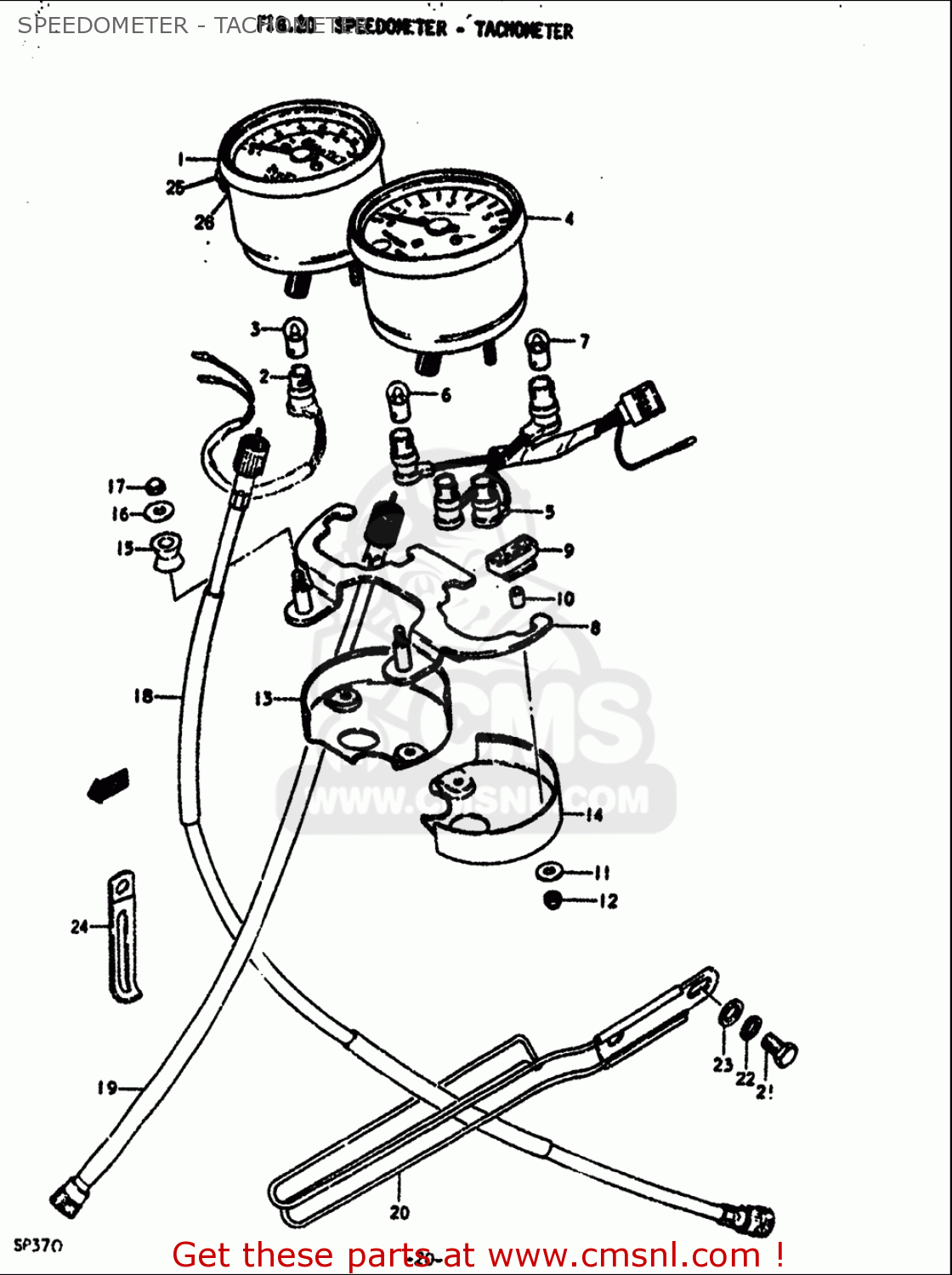

Speedometer - tachometer diagram SP370 1978 1979 (C) (N) USA (E03)
SPEEDOMETER - TACHOMETER SP370 1978 1979 (C) (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3
0947106002
ref: 3
BULB(6V/3W)
€ 2.50
2
3417345302
ref: 2
SOCKET,METER
€ 15.50
6
0947106001
ref: 6
BULB(6V1.7W,STANLEY,A61A)
€ 2.50
7
0947106002
ref: 7
BULB(6V/3W)
€ 2.50
10
3497244022
ref: 10
SPACER
€ 5.50
11
0916005043
ref: 11
WASHER(5.5X16X1.2)
€ 2.50
12
0831310057
ref: 12
NUT
€ 1.50
15
3495615100
ref: 15
CUSHION
€ 4.00
16
0916006084
ref: 16
WASHER(6.5X18X1.6)
€ 2.00
17
0831310067
ref: 17
NUT
€ 2.00
18
3491032410
ref: 18
CABLE ASSY,SPEEDOMETER
€ 20.50
19
3494037410
ref: 19
CABLE ASSY,TACHOMETER
€ 31.50
20
3493005203
ref: 20
GUIDE,CABLE
€ 16.00
21
0150008127
ref: 21
BOLT
€ 2.50
22
0832101087
ref: 22
WASHER,LOCK
€ 2.00
23
0832201087
ref: 23
WASHER
€ 2.00
24
0940406432
ref: 24
CLAMP(L:65)
€ 2.50
26
0913902003
ref: 26
SCREW(2X6)
€ 2.00
