TURN SIGNAL LAMP
SP370 1978 1979 (C) (N) USA (E03)

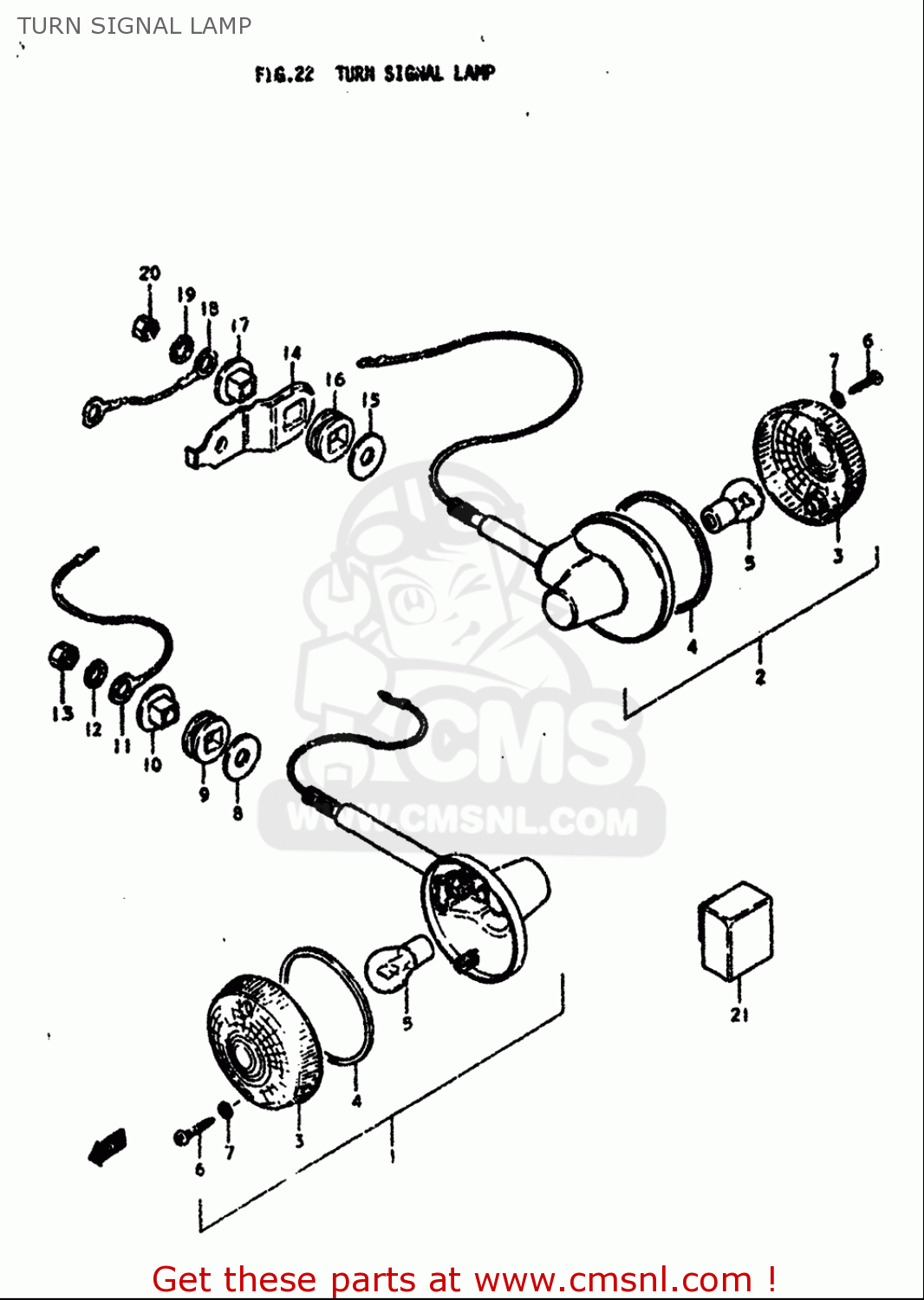

Turn signal lamp diagram SP370 1978 1979 (C) (N) USA (E03)
TURN SIGNAL LAMP SP370 1978 1979 (C) (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560139370999
ref: 1-1
LAMP ASSY,FR TURN SIGNAL
€ 78.50
1-2
3560139370999
ref: 1-2
LAMP ASSY,FR TURN SIGNAL
€ 78.50
2-1
3560332411999
ref: 2-1
LAMP ASSY,TURNSIGNAL
€ 80.50
2-2
3560332411999
ref: 2-2
LAMP ASSY,TURNSIGNAL
€ 80.50
3
3561228620
ref: 3
LENS
€ 10.50
4
3561328620
ref: 4
GASKET (NAS)
€ 7.00
5
0947106011
ref: 5
BULB(6V17W,STANLEY,A4513A)
€ 9.50
6
0321104207
ref: 6
SCREW
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
0916010501
ref: 8
WASHER(10.5X30X2.3)
€ 2.50
9
3569032200
ref: 9
CUSHION
€ 38.50
10
3569532401
ref: 10
SPACER
€ 4.50
11
3666033000
ref: 11
LEAD WIRE,EARTH
€ 5.00
12
0832101107
ref: 12
WASHER,LOCK
€ 2.00
13
0831000107
ref: 13
NUT
€ 2.50
14
4158032401
ref: 14
BRACKET,REAR TURN SIGNAL
€ 8.00
15
0916010501
ref: 15
WASHER(10.5X30X2.3)
€ 2.50
16
3569032200
ref: 16
CUSHION
€ 38.50
17
3569532401
ref: 17
SPACER
€ 4.50
18
3686244000
ref: 18
LEAD WIRE,EARTH
€ 4.00
19
0832101107
ref: 19
WASHER,LOCK
€ 2.00
20
0831000107
ref: 20
NUT
€ 2.50
21
3861005X50
ref: 21
RELAY ASSY,TURNSIGNAL
€ 46.50
