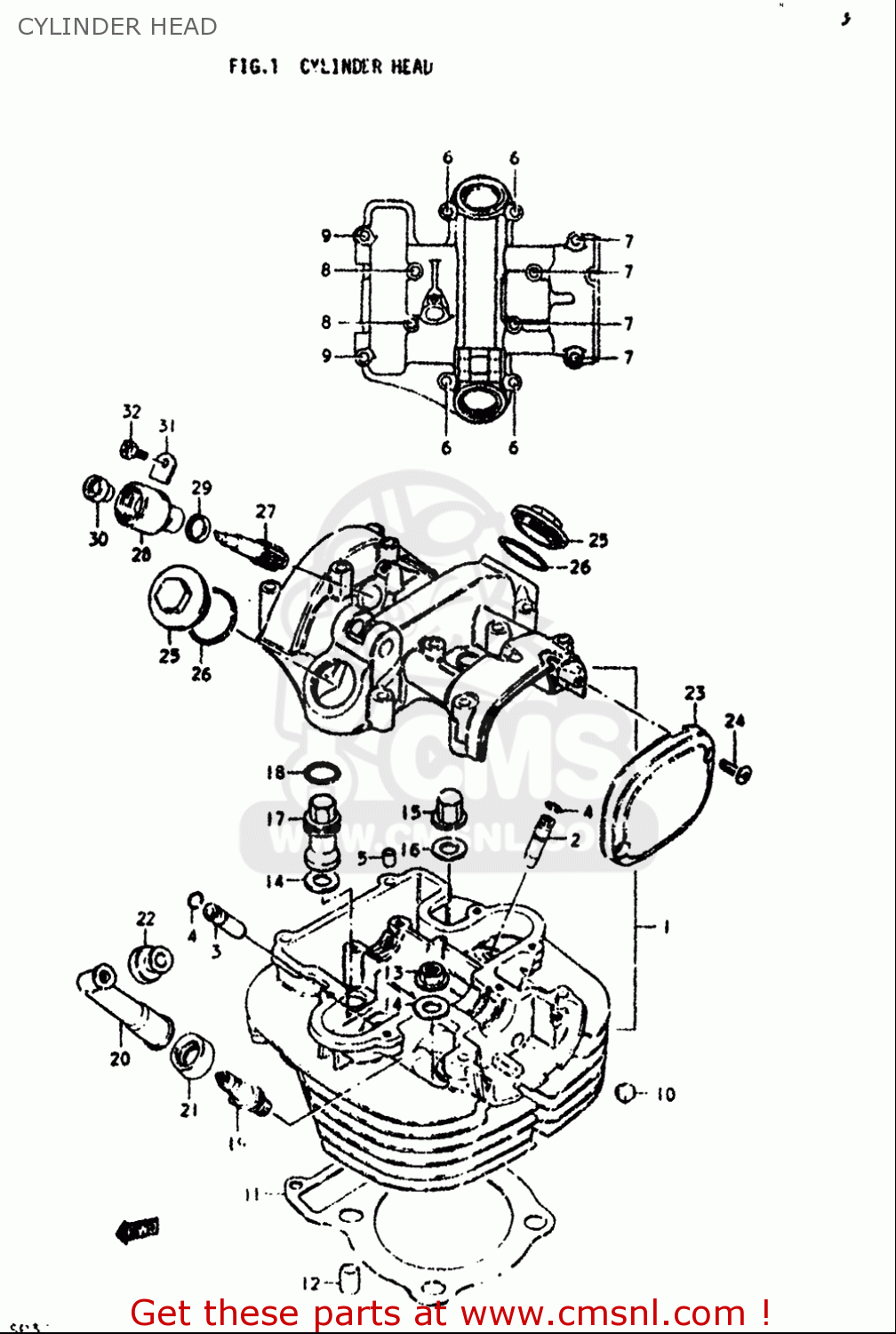

CYLINDER HEAD

ref

part #

description

quantity

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0155006357
ref: 6

BOLT

€ 2.50

7

0155006307
ref: 7

BOLT

€ 2.00

8

0155006657
ref: 8

BOLT

€ 3.00

10

1125213630
ref: 10

PAD,CYLINDER RUBBER(N1)

€ 2.00

11

1114137101
ref: 11

GASKET,CYLINDER HEAD (NAS)

€ 65.00

12

0421113189
ref: 12

PIN

€ 2.50

13-1

0831610107
ref: 13-1

NUT

€ 2.00

13-2

083161010A
ref: 13-2

NUT

€ 2.00

14

0916010039
ref: 14

WASHER(10.5X22X2.3)

€ 2.50

15-1

0915910026
ref: 15-1

NUT

€ 6.00

15-2

0915910026
ref: 15-2

NUT

€ 6.00

16

0916810017
ref: 16

GASKET(10.5X22X2) (NAS)

€ 3.50

17

1114532400
ref: 17

NUT,CYLINDER HEAD SEAL

€ 16.50

18

0928018004
ref: 18

O RING(D:2.4,ID:17.8)

€ 5.50

19-1

0948200144
ref: 19-1

SPARK PLUG D8EA

€ 3.50

19-2

0948200145
ref: 19-2

SPARK PLUG X24ES-U

€ 3.50

20

3351045010
ref: 20

CAP ASSY,SPARK PLUG

€ 23.00

21

3354138210
ref: 21

SEAL,SPARK PLUG

€ 7.00

22

3354238B00
ref: 22

SEAL,HIGH TENSION CORD

€ 4.50

24

0212205167
ref: 24

SCREW

€ 2.00

25

1117542A00
ref: 25

CAP,INSPECTION

€ 9.50

26

0928030001
ref: 26

O RING(D:3,ID:29.5)

€ 2.00

27

2643147003
ref: 27

GEAR,TACHOMETER DRIVEN

€ 29.00

28

2644149000
ref: 28

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

29

2645145000A
ref: 29

SEAL,TACHOMETER DRIVEN

€ 4.50

30

0928905002
ref: 30

SEAL,OIL(5X12X8)

€ 11.00

31

2644933000
ref: 31

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

32

0912805101
ref: 32

SCREW(5X12)

€ 1.50
