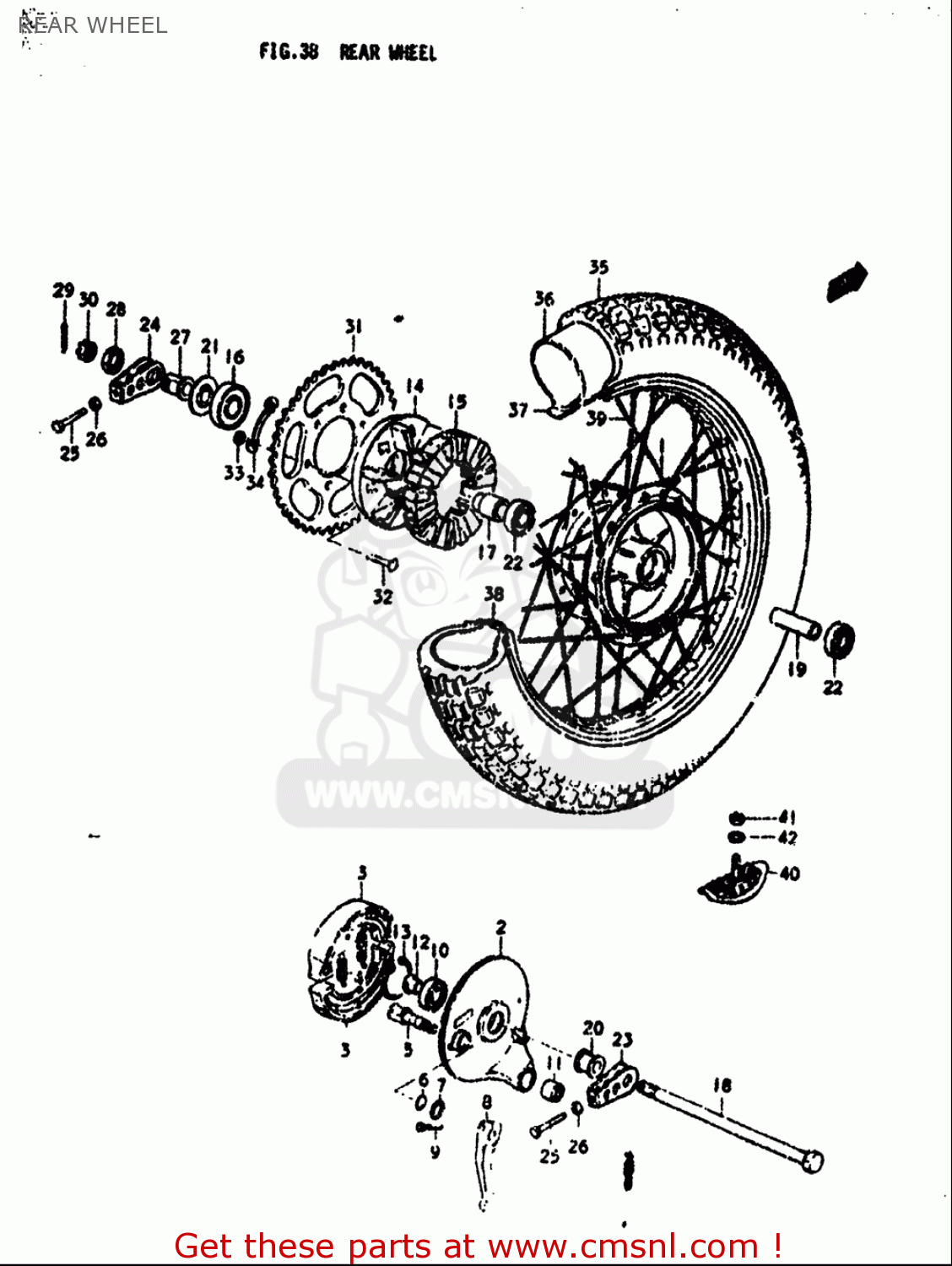

REAR WHEEL

ref

part #

description

quantity

3

6440002830
ref: 3

SHOE SET,BRAKE (NAS)

€ 35.00

4

5542041100
ref: 4

SPRING

€ 5.50

5-1

5444008004
ref: 5-1

CAM,BRAKE

€ 19.00

5-2

5444008004
ref: 5-2

CAM,BRAKE

€ 19.00

6

0928015003
ref: 6

O RING(D:2.4,ID:14.8)

€ 2.00

7

0916015048
ref: 7

WASHER(15.5X24X1.6)

€ 2.50

9

0150006257
ref: 9

BOLT

€ 2.00

10

0813360047
ref: 10

BEARING

€ 21.00

11

0931910008
ref: 11

BUSH

€ 8.00

13

0833141426
ref: 13

CIRCLIP

€ 1.50

15

6465032400
ref: 15

CUSHION,REAR DRUM

€ 7.50

16

0812363047
ref: 16

BEARING

€ 14.00

18

6471116500
ref: 18

AXLE,REAR

€ 41.00

21

6475032400
ref: 21

SPACER,REAR AXLE,RIGHT

€ 9.00

22

0815363027
ref: 22

BEARING

€ 12.00

23

6141032400
ref: 23

ADJUSTER,CHAIN

€ 22.00

24

6141041100
ref: 24

ADJUSTER,CHAIN

€ 10.00

25

0910408034
ref: 25

BOLT(8X50)

€ 3.00

26

083100008A
ref: 26

NUT

€ 2.00

27

6479141100
ref: 27

SPACER,CHAIN ADJUSTER

€ 14.50

28

0914022003
ref: 28

NUT

€ 10.00

29

0411130408
ref: 29

PIN 30X40

€ 1.50

30

0914114001
ref: 30

NUT

€ 4.50

31-1

6451132401
ref: 31-1

SPROCKET,RR

€ 101.50

32

0910508001
ref: 32

BOLT(8X33.5)

€ 2.50

33

0831000087
ref: 33

NUT

€ 2.00

34

0916908011
ref: 34

WASHER

€ 2.50

36

6520049015
ref: 36

TUBE,INNER

€ 39.00

37

5526111010
ref: 37

PROTECTOR,INNER TUBE

€ 3.50

39

6532016520
ref: 39

SPOKE SET,RR

€ 54.00

40

6527043D00
ref: 40

STOPPER,BEAD(1.85)

€ 30.50

41

0831000087
ref: 41

NUT

€ 2.00

42

0832201087
ref: 42

WASHER

€ 2.00
