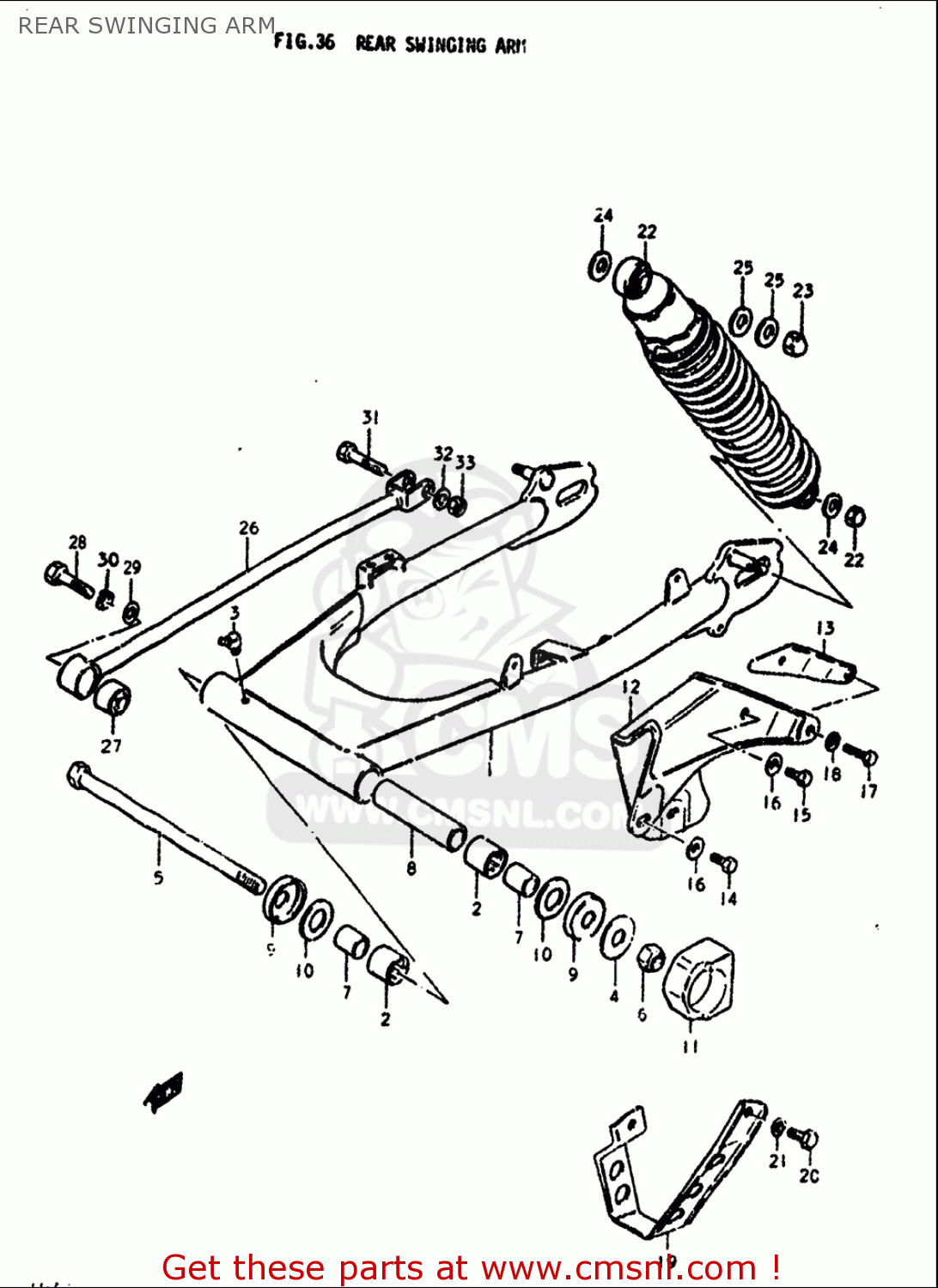

REAR SWINGING ARM

ref

part #

description

quantity

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

0835131008
ref: 3

NIPPLE,GREASE

€ 10.50

5-2

6121132410
ref: 5-2

SHAFT,REAR SWING ARM

€ 31.50

6-1

0831921148
ref: 6-1

NUT 14MM

€ 3.00

6-2

0831921168
ref: 6-2

NUT 16MM

€ 5.00

7-1

6125132400
ref: 7-1

SPACER,RR SWGARM PIVOT

€ 12.50

7-2

6125132410
ref: 7-2

SPACER,RR SWGARM PIVOT

€ 8.50

8-2

0918016018
ref: 8-2

SPACER (16.2X21.7X142)

€ 12.50

9-1

6126245002
ref: 9-1

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

9-2

6126232410
ref: 9-2

COVER,RR SWGARM DUST SEAL

€ 10.00

10-1

0916014020
ref: 10-1

WASHER(14.2X34X1)

€ 2.50

10-2

0821116341
ref: 10-2

WASHER

€ 2.00

11

6127341110
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 19.00

13

6138030500
ref: 13

REINFORCEMENT,CHAIN CASE

€ 6.00

14

0150006107
ref: 14

BOLT

€ 2.00

15

0910006011
ref: 15

BOLT(6X8)

€ 2.50

16

0916906010
ref: 16

WASHER

€ 3.00

17

0150006167
ref: 17

BOLT

€ 3.00

18

0832201067
ref: 18

WASHER

€ 2.00

20

0150008127
ref: 20

BOLT

€ 2.50

21

0832101087
ref: 21

WASHER,LOCK

€ 2.00

23

0831310107
ref: 23

NUT

€ 2.50

24

0832201127
ref: 24

WASHER

€ 2.00

25

0916010127
ref: 25

WASHER (10.5X24X2.3)

€ 2.00

27

0931910008
ref: 27

BUSH

€ 8.00

28

0150010407
ref: 28

BOLT

€ 3.00

29

0832201107
ref: 29

WASHER

€ 2.50

30

0832101107
ref: 30

WASHER,LOCK

€ 2.00

31

0150010407
ref: 31

BOLT

€ 3.00

32

0832201107
ref: 32

WASHER

€ 2.50

33

0915910027
ref: 33

NUT

€ 3.00
