SV1000 2003 (K3) USA (E03)

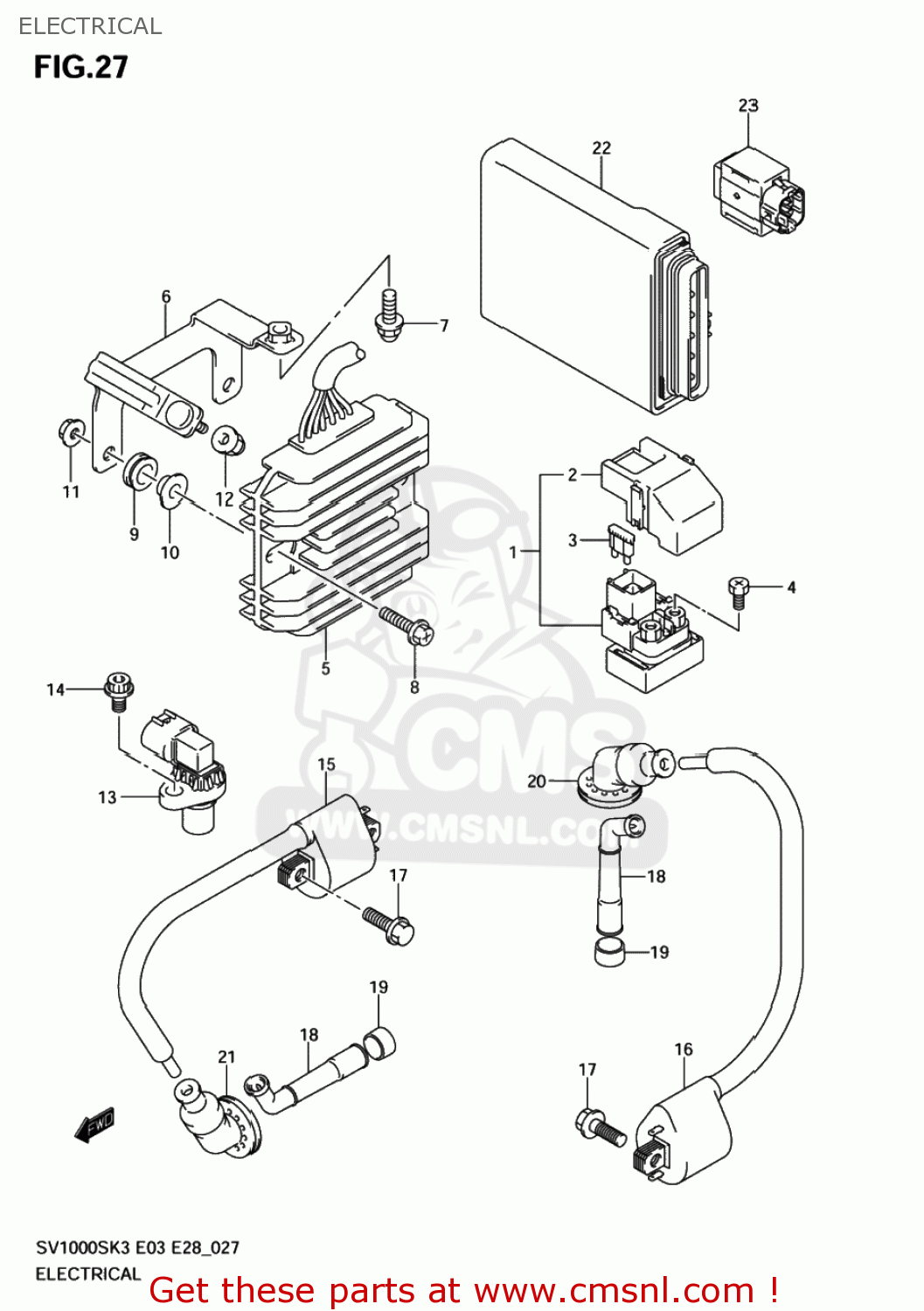

Electrical diagram SV1000 2003 (K3) USA (E03)
ELECTRICAL SV1000 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180006G00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 78.50
2
3186147E00
ref: 2
COVER
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280016G00
ref: 5
32800-16G01
RECTIFIER ASSY
€ 301.00
6
3283116G00
ref: 6
BRACKET,RECT FTG
€ 8.50
7
0910406009
ref: 7
BOLT(6X15)
€ 3.00
8
0216206303
ref: 8
02162-0630A
BOLT (GREEN)
€ 1.50
9
0932008072
ref: 9
CUSHION
€ 4.50
10
0918006325
ref: 10
SPACER(6.2X8.4X6.9)
€ 3.00
11
0831320067
ref: 11
NUT
€ 2.00
12
0831610063
ref: 12
08316-1006B
NUT
€ 2.50
13
3322080G00
ref: 13
SENSOR ASSY,CRANK POSITION
€ 91.50
14
0713006163
ref: 14
07130-0616B
BOLT,OIL FILLE
€ 3.00
15
3341006G00
ref: 15
COIL ASSY,IGNITION
€ 79.00
16
3342006G00
ref: 16
COIL ASSY,IGNITION
€ 112.50
17
0154706203
ref: 17
01547-0620B
SCREW
€ 2.50
18
3351017G00
ref: 18
CAP ASSY,SPARK PLUG
€ 28.50
19
3354123E01
ref: 19
SEAL,SPARK PLUG CAP
€ 7.00
20
3354206G00
ref: 20
SEAL,HIGH TENSION CORD RR
€ 5.50
21
3354206G10
ref: 21
SEAL,HIGH TENSION CORD FR
€ 5.50
22-1
3292016G70
ref: 22-1
CONTROL UNIT,FI
€ 0.00
22-2
3292016G10
ref: 22-2
CONTROL UNIT, FI
€ 0.00
22-3
3292016GE0
ref: 22-3
CONTROL UNIT,FI
€ 0.00
22-4
3292016GK0
ref: 22-4
CONTROL UNIT,FI
€ 0.00
23
3396006G10
ref: 23
SENSOR ASSY,FUEL CUT
