FUEL TANK (MODEL K5)

SV1000 2003 (K3) USA (E03)

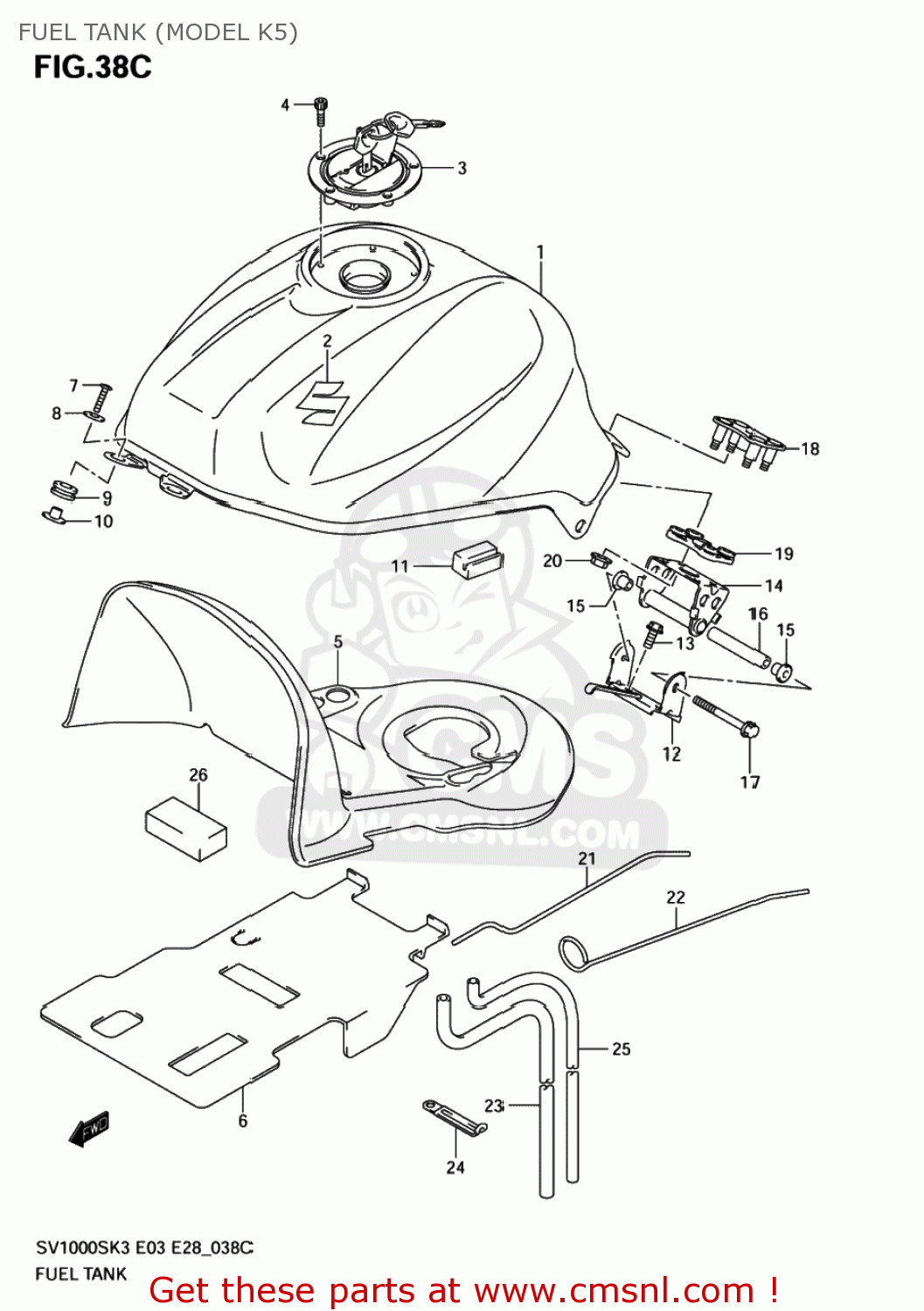

Fuel tank (model k5) diagram SV1000 2003 (K3) USA (E03)

FUEL TANK (MODEL K5) SV1000 2003 (K3) USA (E03)

FUEL TANK (MODEL K5) SV1000 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410016G60YD8
ref: 1-1

TANK ASSY,FUEL(SILVER)

€ 683.00

1-2

4410016G60YU7
ref: 1-2

TANK ASSY, FUEL (RED)

€ 0.00

1-3

4410016G60YAY
ref: 1-3

TANK ASSY, FUEL (BLACK)

€ 736.50

1-4

4410016G80YD8
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-5

4410016G80YU7
ref: 1-5
44100-16G81-YU7

TANK ASSY, FUEL (RED)

€ 754.00

1-6

4410016G80YAY
ref: 1-6
44100-16G81-YAY

TANK ASSY,FUEL(BLACK)

€ 736.50

2

6811118G20
ref: 2

EMBLEM,S

€ 22.50

3-1

4420016850
ref: 3-1

CAP SET,FUEL TANK

€ 155.50

3-2

4420016860
ref: 3-2

CAP SET,FUEL TANK

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4419116G00
ref: 5

SHIELD,FUEL TANK HEAT

€ 179.00

6

4427116G10
ref: 6

SHEET,HEAT SHIELD RUBBER

€ 50.50

7

0913906029
ref: 7

SCREW(6X25)

€ 5.00

8

0916006054
ref: 8

WASHER(6.5X22X1.6)

€ 2.00

9

4451116G00
ref: 9

CUSHION,FUEL TANK FR

€ 4.00

10

4451216G00
ref: 10

SPACER,FUEL TANK FR

€ 6.50

11

4454116G00
ref: 11

CUSHION,FUEL TANK SIDE

€ 9.00

12-1

4455016G10
ref: 12-1

BRACKET,FUEL T

€ 13.50

12-2

4455016G20
ref: 12-2

BRACKET,FUEL TANK NO.2

€ 0.00

13

0155008203
ref: 13
01550-0820A

BOLT

€ 3.00

14

4453016G10
ref: 14

BRACKET,FUEL TANK NO.1

€ 34.00

15

4454316G00
ref: 15

CUSHION,TANK RR BRACKET

€ 19.00

16

4456135F00
ref: 16

SPACER,FUEL TANK RR

€ 10.50

17

0910306060
ref: 17

BOLT(6X100)

€ 2.50

18

4457016G00
ref: 18

BRACKET,FUEL TANK RR UP

€ 12.50

19

4454216G00
ref: 19

CUSHION,FUEL TANK RR

€ 11.50

20

0831931063
ref: 20
08319-3106A

NUT

€ 2.50

21

4457416G00
ref: 21

STAY,FUEL TANK

€ 11.50

22

4442316G10
ref: 22

HOSE,WATER DRAIN

€ 9.50

23

0940406433
ref: 23

CLAMP(L:80)

€ 3.00

24

4442416G00
ref: 24
44424-18G00

HOSE,FUEL TANK

€ 13.50

25

4454516G00
ref: 25

CUSHION,FUEL TANK

€ 6.00

26

6824116G00
ref: 26

MOLDING

€ 4.50
