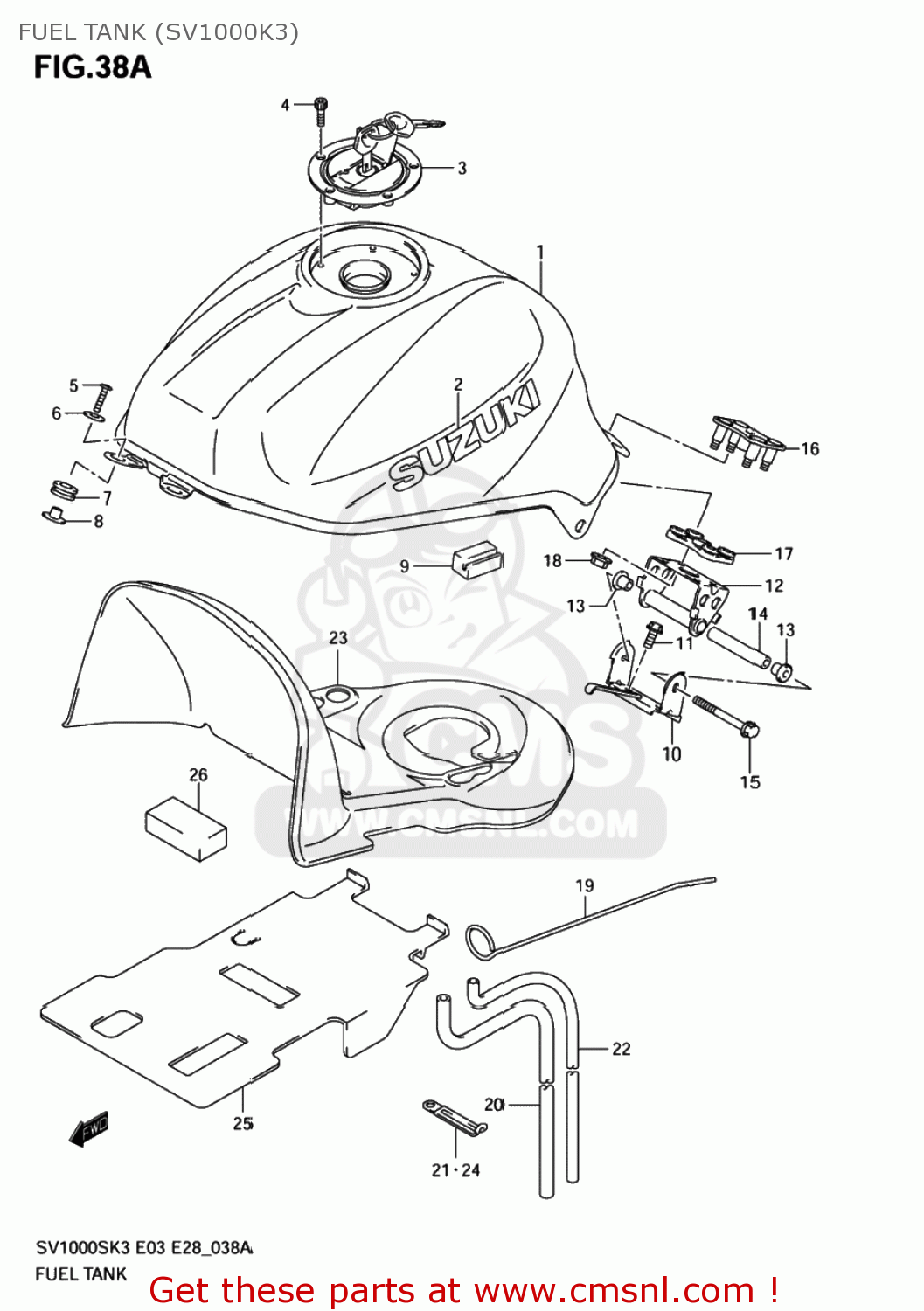

FUEL TANK (SV1000K3)

ref

part #

description

quantity

1-1

4410016G01YD8
ref: 1-1

TANK ASSY,FUEL(SILVER)

€ 628.00

1-2

4410016G0133J
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 0.00

1-3

4410016G01YC2
ref: 1-3

TANK ASSY,FUEL(BLUE)

€ 645.00

1-4

4410016G21YD8
ref: 1-4
44100-16G22-YD8

TANK ASSY, FUEL (SILVER)

€ 778.50

1-5

4410016G2133J
ref: 1-5

TANK ASSY,FUEL

€ 0.00

1-6

4410016G21YC2
ref: 1-6
44100-16G22-YC2

TANK ASSY,FUEL(BLUE)

€ 503.50

2-1

6811147C10YU8
ref: 2-1

EMBLEM

€ 17.50

2-2

6811147C10YD8
ref: 2-2

EMBLEM

€ 14.50

3-1

4420016850
ref: 3-1

CAP SET,FUEL TANK

€ 155.50

3-2

4420016860
ref: 3-2

CAP SET,FUEL TANK

€ 0.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

0913906029
ref: 5

SCREW(6X25)

€ 5.00

6

0916006054
ref: 6

WASHER(6.5X22X1.6)

€ 2.00

7

4451116G00
ref: 7

CUSHION,FUEL TANK FR

€ 4.00

8

4451216G00
ref: 8

SPACER,FUEL TANK FR

€ 6.50

9

4454116G00
ref: 9

CUSHION,FUEL TANK SIDE

€ 9.00

10-1

4455016G10
ref: 10-1

BRACKET,FUEL T

€ 13.50

10-2

4455016G20
ref: 10-2

BRACKET,FUEL TANK NO.2

€ 0.00

11

0155008203
ref: 11
01550-0820A

BOLT

€ 3.00

12

4453016G10
ref: 12

BRACKET,FUEL TANK NO.1

€ 34.00

13

4454316G00
ref: 13

CUSHION,TANK RR BRACKET

€ 19.00

14

4456135F00
ref: 14

SPACER,FUEL TANK RR

€ 10.50

15

0910306060
ref: 15

BOLT(6X100)

€ 2.50

16

4457016G00
ref: 16

BRACKET,FUEL TANK RR UP

€ 12.50

17

4454216G00
ref: 17

CUSHION,FUEL TANK RR

€ 11.50

18

0831931063
ref: 18
08319-3106A

NUT

€ 2.50

19

4457416G00
ref: 19

STAY,FUEL TANK

€ 11.50

20

4442316G10
ref: 20

HOSE,WATER DRAIN

€ 9.50

21

0940406433
ref: 21

CLAMP(L:80)

€ 3.00

22

4442416G00
ref: 22
44424-18G00

HOSE,FUEL TANK

€ 13.50

23

4419116G00
ref: 23

SHIELD,FUEL TANK HEAT

€ 179.00

24

0940406433
ref: 24

CLAMP(L:80)

€ 3.00

25

4427116G10
ref: 25

SHEET,HEAT SHIELD RUBBER

€ 50.50

26

4454516G00
ref: 26

CUSHION,FUEL TANK

€ 6.00
