SPEEDOMETER (SV1000SK5)
SV1000 2003 (K3) USA (E03)

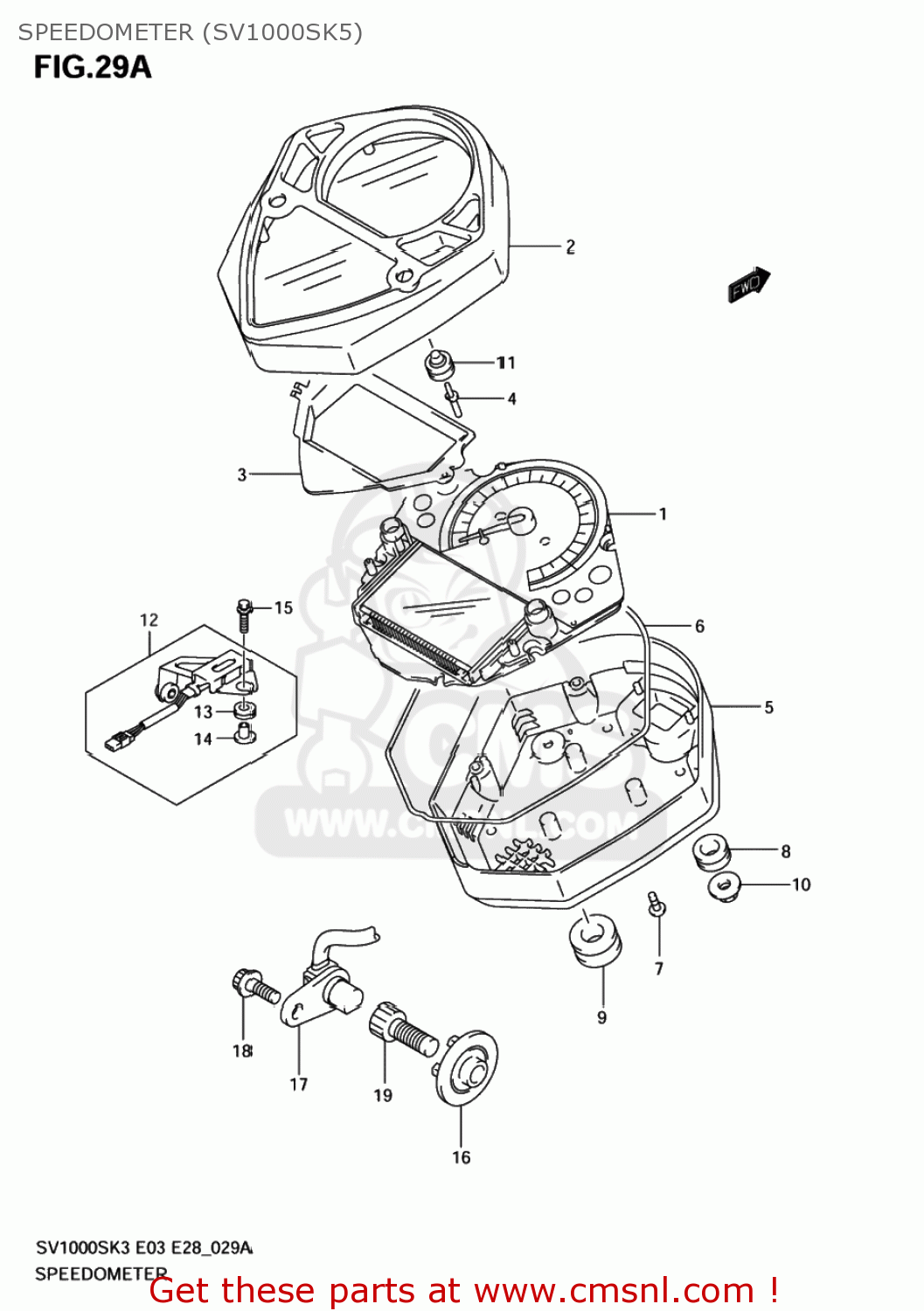

Speedometer (sv1000sk5) diagram SV1000 2003 (K3) USA (E03)
SPEEDOMETER (SV1000SK5) SV1000 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412016G80
ref: 1-1
SPEEDOMETER
€ 0.00
1-2
3412016G60
ref: 1-2
SPEEDOMETER
€ 731.50
2
3415016G00
ref: 2
CASE,SPEEDOMETER UPR
€ 158.50
3
3412516G00
ref: 3
PLATE,SPEEDOMETER
€ 10.50
4
3412416G00
ref: 4
KNOB,SPEEDOMETER
€ 6.00
5
3415216G00
ref: 5
CASE,SPEEDOMETER LWR
€ 49.00
6
3415316G00
ref: 6
GASKET,METER CASE (NAS)
€ 13.00
7
3418932B00
ref: 7
CUSHION
€ 5.00
8
3495513E00
ref: 8
CUSHION
€ 3.00
9
0915905044
ref: 9
09159-05049
NUT
€ 1.50
10
3418316G30
ref: 10
SCREW,SPEEDOMETER
€ 3.50
11
3412616G00
ref: 11
COVER,SPEEDOMETER KNOB
€ 7.50
12
3651016G00
ref: 12
RESISTOR ASSY
€ 94.50
13
0932010015
ref: 13
CUSHION
€ 2.50
14
0918006319
ref: 14
SPACER(6.5X10X11.6)
€ 3.50
15
0911606131
ref: 15
BOLT(6X25)
€ 2.00
16
3498135F00
ref: 16
34981-38G01
ROTOR,SPEED
€ 15.00
17
3499035F00
ref: 17
SENSOR,SPEED
€ 112.50
18
0712005123
ref: 18
07120-0512B
BOLT
€ 2.00
19
0713008253
ref: 19
07130-0825B
BOLT
€ 3.50
