MUFFLER
SV1000 2003 (K3) USA (E03)

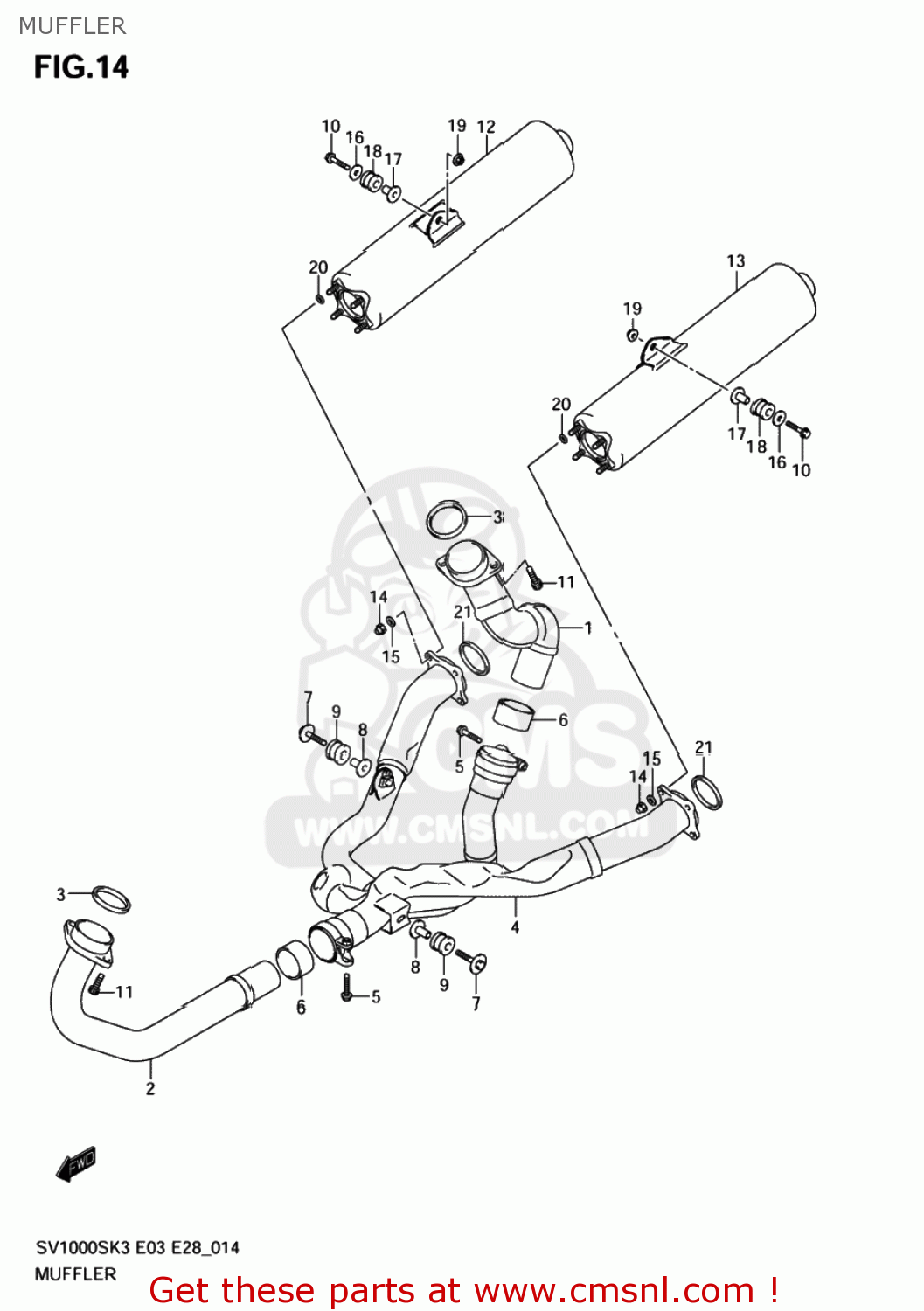

Muffler diagram SV1000 2003 (K3) USA (E03)
MUFFLER SV1000 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415016G01
ref: 1
PIPE,EXHAUST RR
€ 77.50
2
1416016G00
ref: 2
PIPE,EXHAUST FR
€ 177.00
3
1418131D00
ref: 3
GASKET,EXHAUST PIPE (NAS)
€ 9.50
4-1
1421016G10
ref: 4-1
PIPE,EXHAUST CTR
€ 0.00
4-2
1421016G40
ref: 4-2
14210-16G60
PIPE, EXHAUST CENTER
€ 580.50
4-3
1421016G60
ref: 4-3
PIPE,EXHAUST CTR
€ 580.50
5
0910308365
ref: 5
BOLT(8X35)
€ 3.50
6
1477142F10
ref: 6
CONNECTOR,MUFFLER
€ 13.00
7
0911808152
ref: 7
09118-08152-A05
BOLT 8X45
€ 5.00
8
0918008152
ref: 8
SPACER(8.6X12X24.2)
€ 6.00
9
0932012048
ref: 9
CUSHION
€ 5.00
10
0910308358
ref: 10
BOLT(8X45)
€ 3.50
11
0910608165
ref: 11
BOLT(8X25)
€ 5.00
12-1
1431016G10H01
ref: 12-1
BODY,MUFFLER,R
€ 514.00
12-2
1431016G40H01
ref: 12-2
14310-16G70-H01
BODY, MUFFLER RH
€ 787.50
12-3
1431016G70H01
ref: 12-3
BODY,MUFFLER,R
€ 787.50
12-4
1431016G60H01
ref: 12-4
14310-16G60
BODY COMP,MUFFL
€ 1,220.00
13-1
1434016G10H01
ref: 13-1
BODY,MUFFLER,L
€ 0.00
13-2
1434016G40H01
ref: 13-2
14340-16G70-H01
BODY, MUFFLER LH
€ 686.00
13-3
1434016G70H01
ref: 13-3
BODY,MUFFLER,L
€ 686.00
13-4
1434016G60H01
ref: 13-4
14340-16G60
BODY,MUFFLER,L
€ 1,176.00
14
0915908116
ref: 14
NUT
€ 7.50
15
0916008059
ref: 15
WASHER(8.5X18X1.6)
€ 2.00
16
0916008142
ref: 16
WASHER(8.5X28X1.5)
€ 2.50
17
0918008152
ref: 17
SPACER(8.6X12X24.2)
€ 6.00
18
0932012048
ref: 18
CUSHION
€ 5.00
19
0836125088
ref: 19
08361-2508A
NUT
€ 2.50
20
0928008012
ref: 20
O RING(D:1.9,ID:7.8)
€ 4.00
21
1418102F00
ref: 21
GASKET,MUFFLER JOINT (NAS)
€ 7.00
