FRONT BRAKE HOSE
SV1000 2003 (K3) USA (E03)

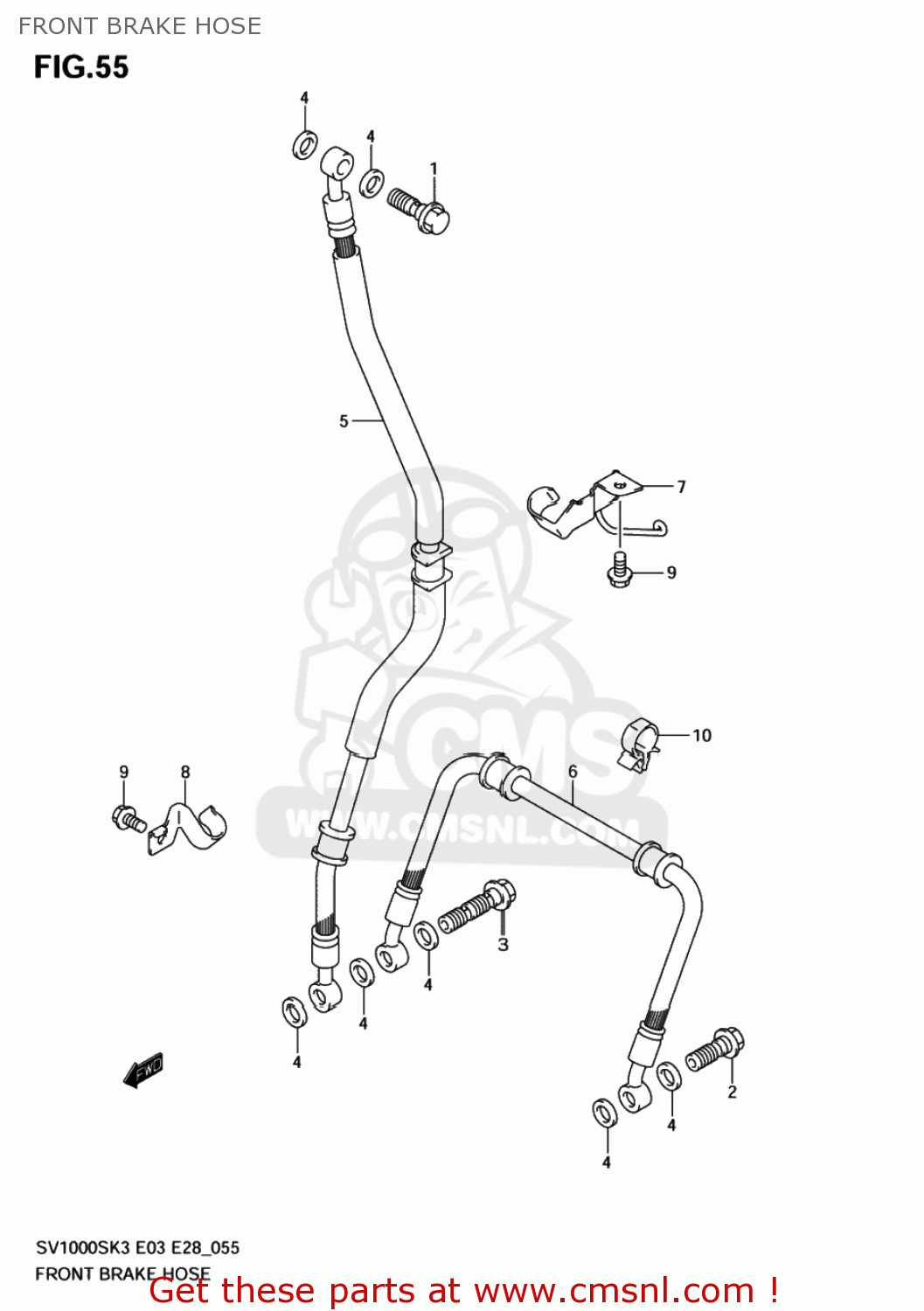

Front brake hose diagram SV1000 2003 (K3) USA (E03)
FRONT BRAKE HOSE SV1000 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0936010042
ref: 1
09360-10062
BOLT UNION
€ 5.00
2
0936010042
ref: 2
09360-10062
BOLT UNION
€ 5.00
3
0936010044
ref: 3
09360-10064
BOLT UNION
€ 5.00
4
0916110009
ref: 4
WASHER(10X15X1.5)
€ 2.00
5-1
5948016G00
ref: 5-1
HOSE,FR BRAKE NO.1
€ 91.00
5-2
5948016G10
ref: 5-2
HOSE,FR BRAKE NO.1
€ 100.50
6
5924016G00
ref: 6
HOSE,FR BRAKE NO.2
€ 93.00
7
5926016G00
ref: 7
CLAMP,FR BRAKE HOSE
€ 15.50
8
5926816G00
ref: 8
CLAMP,FR BRAKE HOSE NO.2
€ 7.50
9
0154706123
ref: 9
01547-0612B
BOLT
€ 2.00
10
0940314304
ref: 10
CLAMP
€ 3.00
