SEAT TAIL COVER (SV1000K3)
SV1000 2003 (K3) USA (E03)

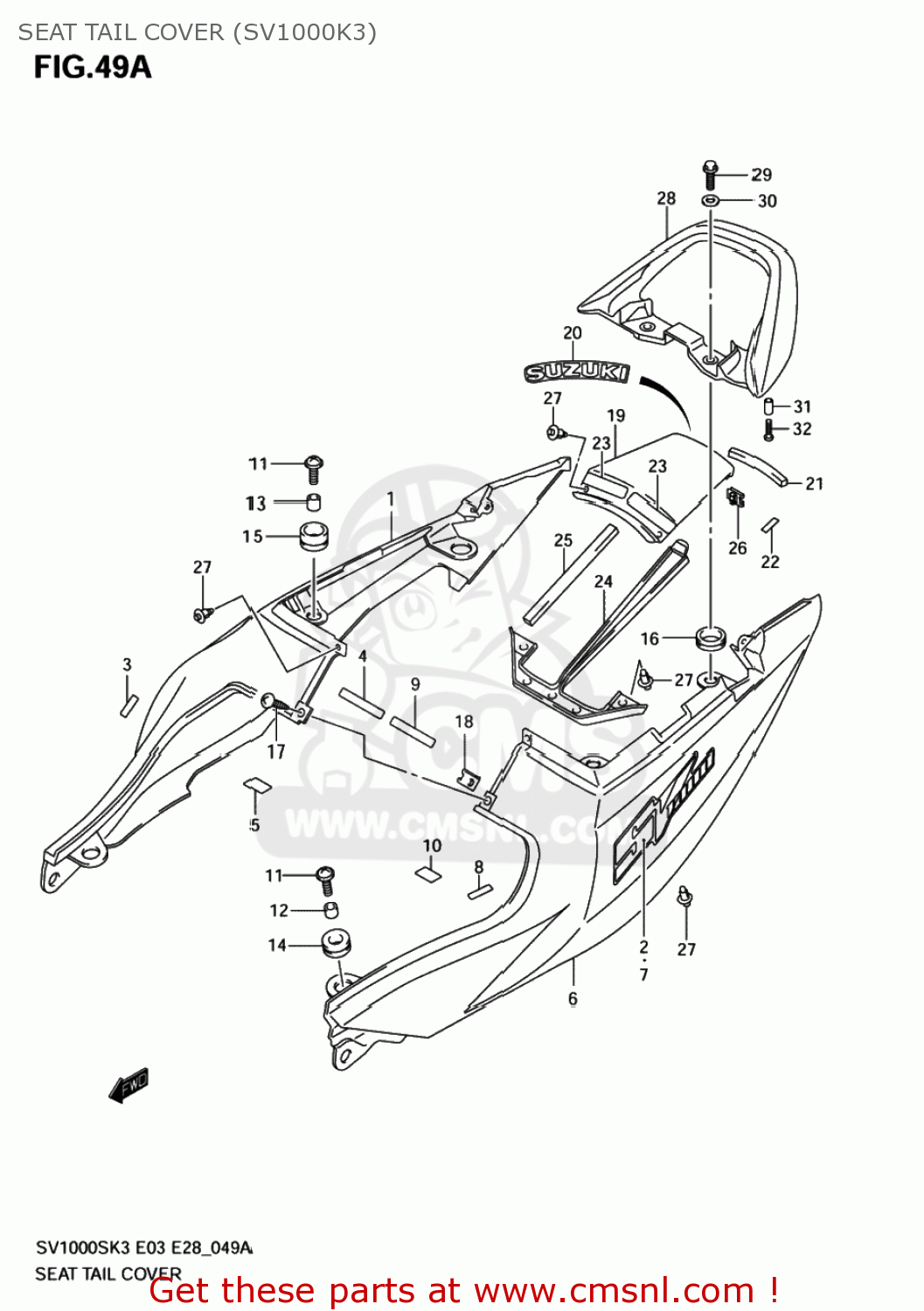

Seat tail cover (sv1000k3) diagram SV1000 2003 (K3) USA (E03)
SEAT TAIL COVER (SV1000K3) SV1000 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4550116G00YC2
ref: 1-1
45501-16G02-YC2
COVER,SEAT TAI
€ 149.00
1-2
4550116G00YD8
ref: 1-2
45501-16G02-YD8
COVER,SEAT TAI
€ 162.50
1-3
4550116G0033J
ref: 1-3
COVER SET,SEAT
€ 107.50
2-1
6816116G10ML6
ref: 2-1
EMBLEM,SEAT TAIL COVER
€ 12.50
2-2
6816116G10ML4
ref: 2-2
EMBLEM,SEAT TAIL COVER
€ 12.50
2-3
6816116G10ML5
ref: 2-3
EMBLEM,SEAT TAIL COVER
€ 12.00
3
4551642F00
ref: 3
TAPE,COVER
€ 7.00
4
4551716G10
ref: 4
TAPE,SEAT TAIL COVER NO.2 FR
€ 8.50
5
4716110D00
ref: 5
PROTECTOR,FRAME COVER
€ 3.50
6-1
4550216G00YC2
ref: 6-1
45502-16G02-YC2
COVER,SEAT TAI
€ 149.00
6-2
4550216G00YD8
ref: 6-2
45502-16G02-YD8
COVER,SEAT TAI
€ 88.00
6-3
4550216G0033J
ref: 6-3
COVER,SEAT TAI
€ 99.00
7-1
6816116G10ML6
ref: 7-1
EMBLEM,SEAT TAIL COVER
€ 12.50
7-2
6816116G10ML4
ref: 7-2
EMBLEM,SEAT TAIL COVER
€ 12.50
7-3
6816116G10ML5
ref: 7-3
EMBLEM,SEAT TAIL COVER
€ 12.00
8
4551642F00
ref: 8
TAPE,COVER
€ 7.00
9
4551716G10
ref: 9
TAPE,SEAT TAIL COVER NO.2 FR
€ 8.50
10
4716110D00
ref: 10
PROTECTOR,FRAME COVER
€ 3.50
11
0913606105
ref: 11
SCREW(6X20)
€ 2.00
12
0918006286
ref: 12
SPACER(6.5X10X9.4)
€ 2.50
13
0918006286
ref: 13
SPACER(6.5X10X9.4)
€ 2.50
14
0932010052
ref: 14
CUSHION
€ 4.50
15
4711516G00
ref: 15
CUSHION,SEAT TAIL COVER CTR
€ 3.00
16
0932020010
ref: 16
CUSHION
€ 2.50
17
0324115123
ref: 17
03241-1512B
SCREW
€ 2.50
18
0914805038
ref: 18
NUT
€ 2.50
19-1
4550316G00YC2
ref: 19-1
COVER,SEAT TAIL CTR
€ 47.50
19-2
4550316G00YD8
ref: 19-2
COVER,SEAT TAIL CTR
€ 76.00
19-2
4550316G00YD8
ref: 19-2
COVER,SEAT TAIL CTR
€ 76.00
19-3
4550316G0033J
ref: 19-3
COVER,SEAT TAIL CTR
€ 76.00
19-3
4550316G0033J
ref: 19-3
COVER,SEAT TAIL CTR
€ 76.00
20-1
6816116G00YD8
ref: 20-1
EMBLEM,SUZUKI
€ 6.00
20-2
6816116G00YU8
ref: 20-2
EMBLEM,SUZUKI
€ 7.50
21
4551816G00
ref: 21
CUSHION,SEAT TAIL COVER CTR
€ 2.50
22
4551716G00
ref: 22
TAPE,SEAT TAIL COVER
€ 6.50
23
4551642F00
ref: 23
TAPE,COVER
€ 7.00
24-1
4551416G00YC2
ref: 24-1
COVER,SEAT TAIL RR
€ 34.50
24-2
4551416G00YD8
ref: 24-2
COVER,SEAT TAIL RR
€ 34.50
24-2
4551416G00YD8
ref: 24-2
COVER,SEAT TAIL RR
€ 34.50
24-3
4551416G0033J
ref: 24-3
COVER,SEAT TAIL RR
€ 48.00
25
4551916G00
ref: 25
CUSHION,SEAT TAIL COVER
€ 5.50
26
0914806018
ref: 26
NUT
€ 2.50
27
09409063145PK
ref: 27
CLIP(BLACK)
€ 3.50
28-1
4621116G00YC2
ref: 28-1
HANDLE,PILLION RIDER
€ 148.00
28-2
4621116G00YD8
ref: 28-2
HANDLE,PILLION RIDER
€ 179.50
28-3
4621116G0033J
ref: 28-3
HANDLE,PILLION RIDER
€ 164.50
29
0155108303
ref: 29
01551-0830A
BOLT.MUF SPRT F
€ 3.00
30
0916008501
ref: 30
WASHER(8.5X24X2.3)
€ 2.00
31
0918006271
ref: 31
SPACER(6.5X9X18)
€ 2.00
32
0913906112
ref: 32
SCREW(6X25)
€ 3.00
