STEERING STEM (SV1000SK3/SK4/SK5)
SV1000 2003 (K3) USA (E03)

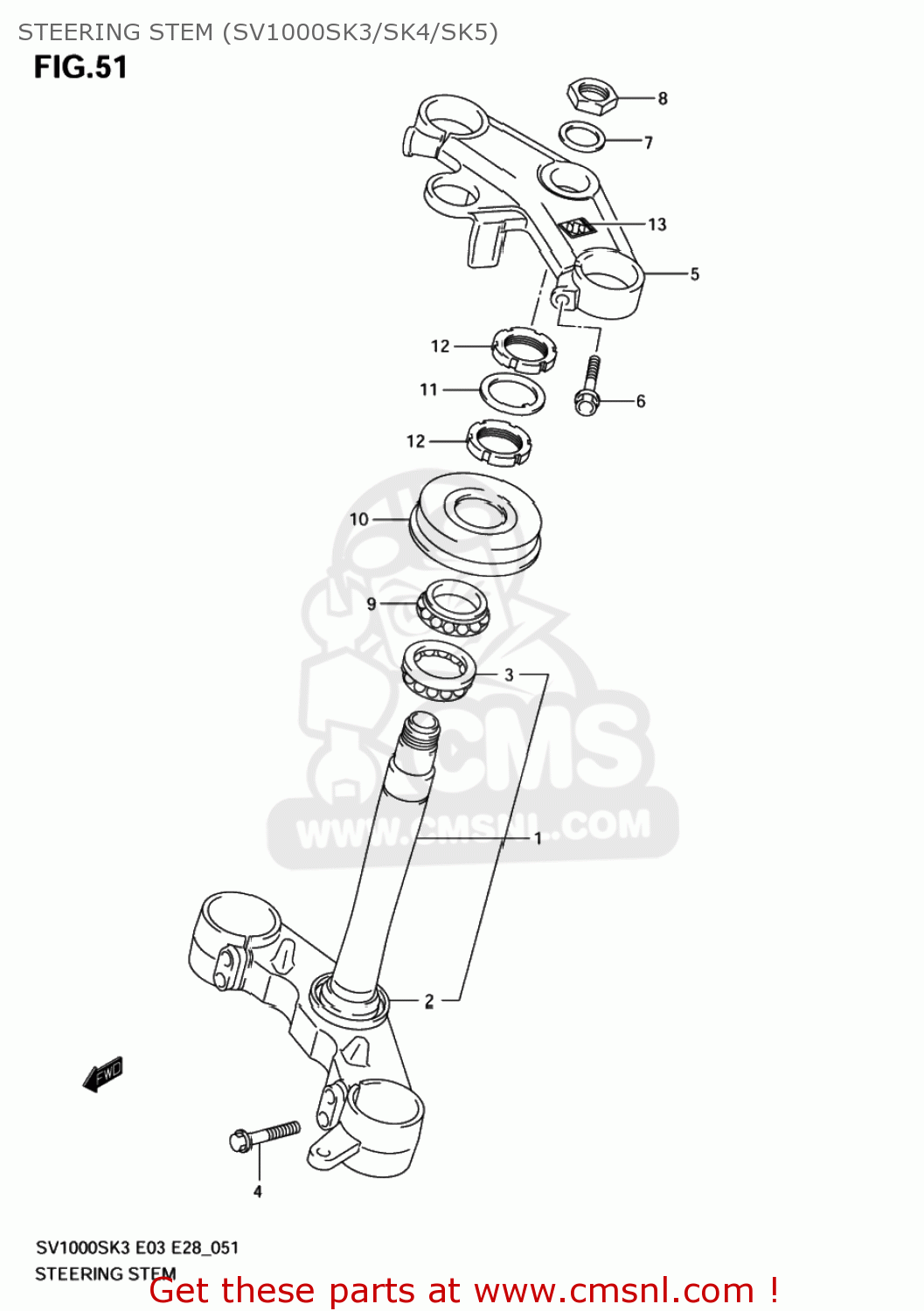

Steering stem (sv1000sk3/sk4/sk5) diagram SV1000 2003 (K3) USA (E03)
STEERING STEM (SV1000SK3/SK4/SK5) SV1000 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141016G20
ref: 1
STEM,STEERING
€ 862.50
2
5164412C00
ref: 2
SEAL,STEERING LWR
€ 5.50
3
0926730010
ref: 3
BEARING(30X55X17)
€ 46.50
4
5132840F30
ref: 4
BOLT
€ 5.50
5
5131116G20
ref: 5
HEAD,STEERING STEM
€ 456.50
6
5132840F30
ref: 6
BOLT
€ 5.50
7
5135627C00
ref: 7
WASHER,STEM HEAD(24.5X34X1.6)
€ 2.50
8
5135324F00
ref: 8
NUT
€ 27.50
9
0926730010
ref: 9
BEARING(30X55X17)
€ 46.50
10
5164333E00
ref: 10
SEAL,STEERING UPR DUST
€ 12.50
11
5164133E00
ref: 11
WASHER,STEERING STEM
€ 3.00
12
5163133E00
ref: 12
NUT,STEERING STEM
€ 12.00
13
6828135F00
ref: 13
EMBLEM,S
€ 13.00
