FRONT CYLINDER HEAD

SV1000 2003 (K3) USA (E03)

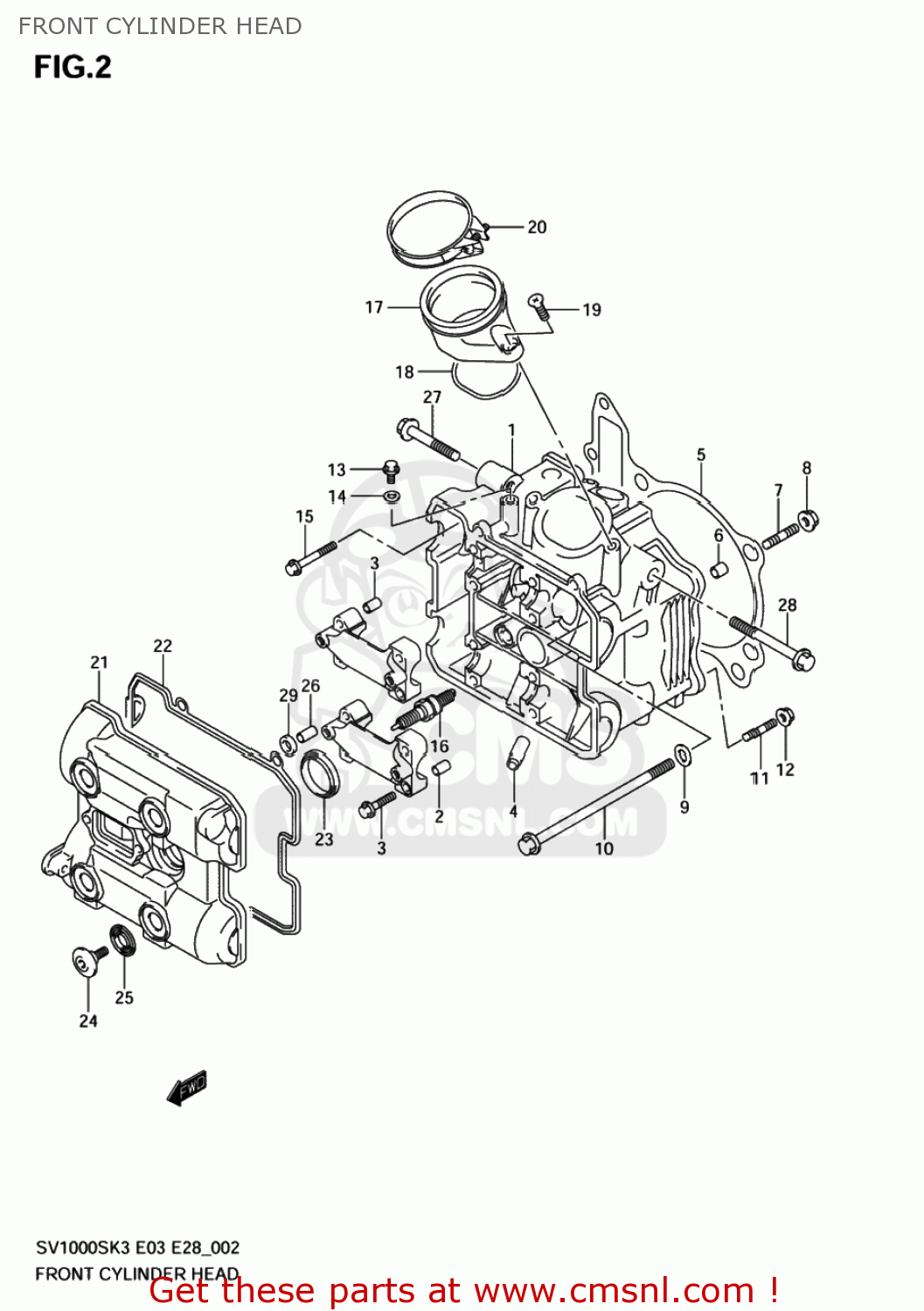

Front cylinder head diagram SV1000 2003 (K3) USA (E03)

FRONT CYLINDER HEAD SV1000 2003 (K3) USA (E03)

FRONT CYLINDER HEAD SV1000 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1110016G00
ref: 1

HEAD ASSY,CYLINDER FR

€ 924.50

2

0920608001
ref: 2

PIN(6.2X8X11)

€ 2.00

3

0910306026
ref: 3

BOLT(6X39)

€ 2.00

4

1111532E70
ref: 4

GUIDE,VALVE

€ 18.50

5

1114102F01
ref: 5

GASKET,CYLINDER HEAD (NAS)

€ 42.00

6

0421113189
ref: 6

PIN

€ 2.50

7

0910808143
ref: 7

BOLT,STUD

€ 3.00

8

0831610083
ref: 8
08316-1008B

NUT

€ 3.00

9

0916010082
ref: 9

WASHER(10.5X19X2)

€ 2.00

10

0910310276
ref: 10

BOLT(10X175)

€ 13.50

11

0910806096
ref: 11

BOLT,STUD

€ 2.50

12

0831610063
ref: 12
08316-1006B

NUT

€ 2.50

13

0712006123
ref: 13
07120-0612B

BOLT

€ 3.50

14

0916806023
ref: 14

GASKET(5.8X13X1.2) (NAS)

€ 2.00

15

0910306103
ref: 15

BOLT(6X70)

€ 2.50

16-1

0948200412
ref: 16-1

PLUG,SPARK(CR8EK)

€ 11.00

16-2

0948200413
ref: 16-2

PLUG,SPARK(U24ETR)

€ 11.00

16-3

0948200410
ref: 16-3

PLUG,SPARK(CR9EK)

€ 10.50

16-4

0948200411
ref: 16-4
09482-00459

PLUG,SPARK(U27ETR)

€ 8.50

16-5

0948200462
ref: 16-5

PLUG,SPARK(CR10EK)

€ 10.50

16-6

0948200463
ref: 16-6

PLUG,SPARK(U31ETR)

€ 10.50

17-1

1310116G00
ref: 17-1

PIPE ASSY,INTAKE FR

€ 59.00

17-2

1310116G10
ref: 17-2

PIPE ASSY,INTAKE FR

€ 73.00

18

0928055005
ref: 18

O RING(D:2.4,ID:55.6)

€ 5.50

19

0212206163
ref: 19
02122-0616A

SCREW ,6X16

€ 2.00

20

0940278208
ref: 20
09402-78207

CLAMP

€ 7.50

21

1117116G00
ref: 21

COVER,CYLINDER HEAD FR

€ 244.50

22

1117302F00
ref: 22

GASKET,CYL HEAD COVER NO.1 (NAS)

€ 29.00

23

1117817E00
ref: 23

GASKET,CYL HEAD COVER NO.2

€ 6.00

24

0910607009
ref: 24

BOLT(7X17.5)

€ 4.50

25

0916111008
ref: 25

WASHER(10.6X25.5X2.3)

€ 4.50

26

0920608007
ref: 26

PIN(6.2X8X16)

€ 2.50

27

0155010657
ref: 27

BOLT

€ 3.50

28

0155010857
ref: 28

BOLT

€ 3.50

29

1118235F00
ref: 29

GASKET,2ND AIR PASSAGE (NAS)

€ 4.00
